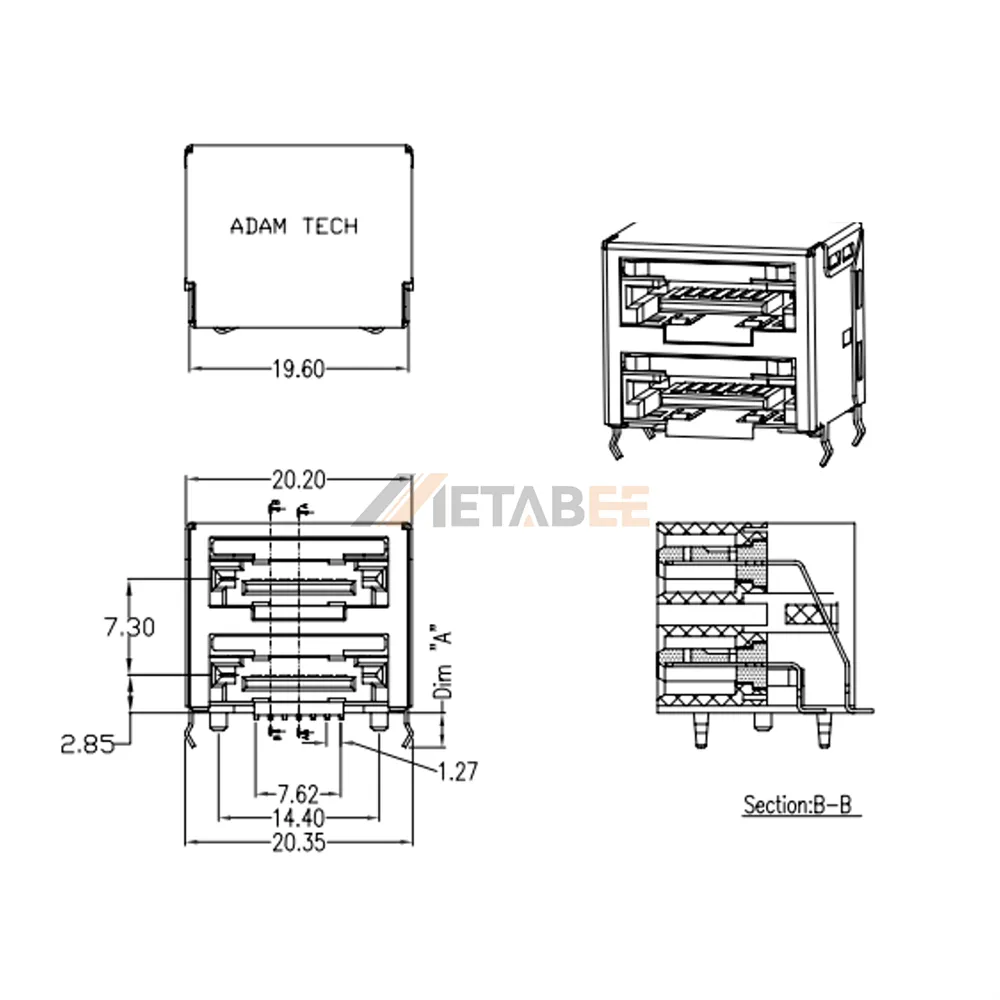

Dual Port SATA 14 Pin Date Receptacle, SMT, R/A
Introduction:
Designed for compact, high-efficiency storage architectures, this dual-port sata 14-pin (7+7) female data receptacle delivers uncompromised high-speed data transmission within dense circuit layouts. The stacked dual-port configuration maximizes interface capability while significantly conserving valuable pcb footprint.
Featuring a precision right-angle surface-mount configuration, this connector supports seamless automated smt assembly processes while maintaining reliable mechanical and electrical integrity. Encased in ul94v-0 rated flame-retardant housing, it performs reliably across wide industrial temperature swings, making it optimal for enterprise storage arrays, embedded controllers, and industrial server equipment.
Key Features
- Dual-port 14-pin (7+7) female receptacle maximizes pcb routing efficiency.
- Precision right-angle surface-mount design optimizes automated smt assembly.
- 1.5 a current rating provides stable, reliable power handling capability.
- 30 mohms maximum contact resistance ensures superior signal fidelity.
- 1,000 mohms minimum insulation resistance with 500 vac dielectric tolerance.
- Rugged -55°c to +85°c thermal performance with ul94v-0 flame resistance.
Main Specifications:
General Information:
| Product No.: | SATA-D-SMT-FS-001 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+7 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
