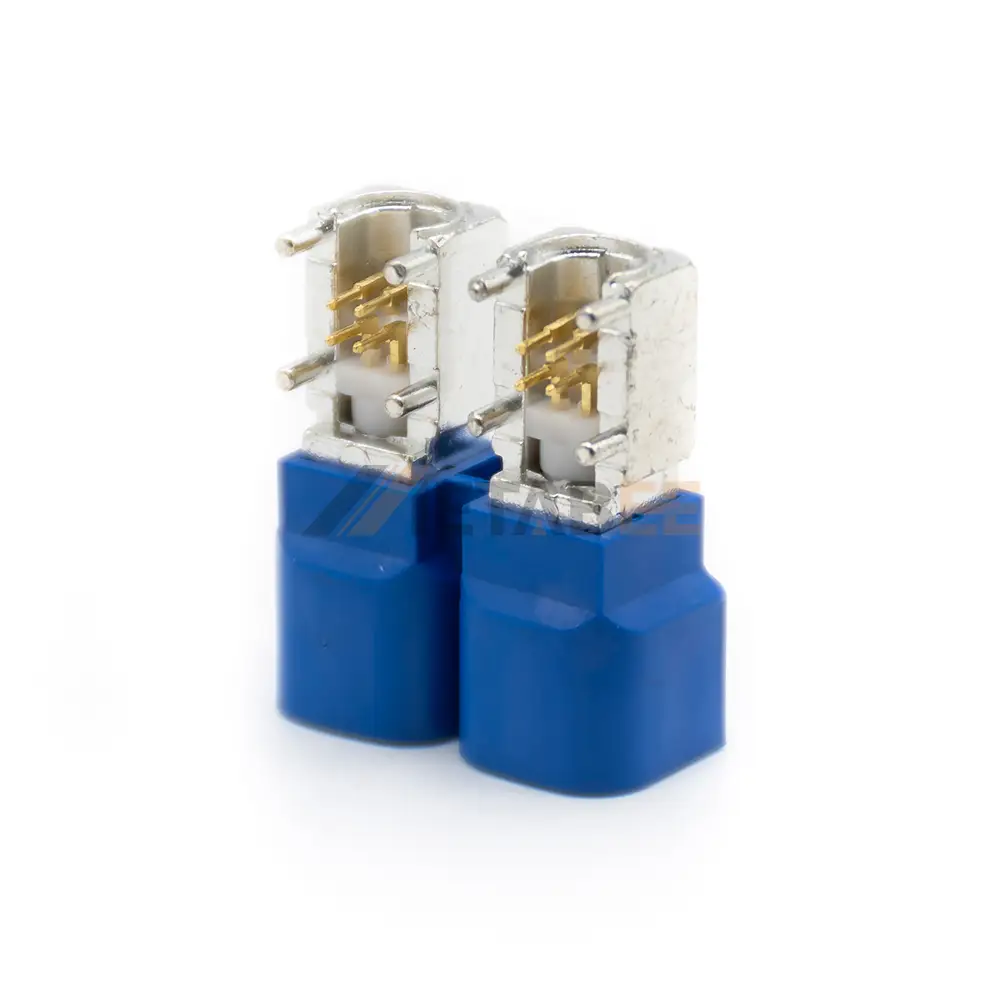

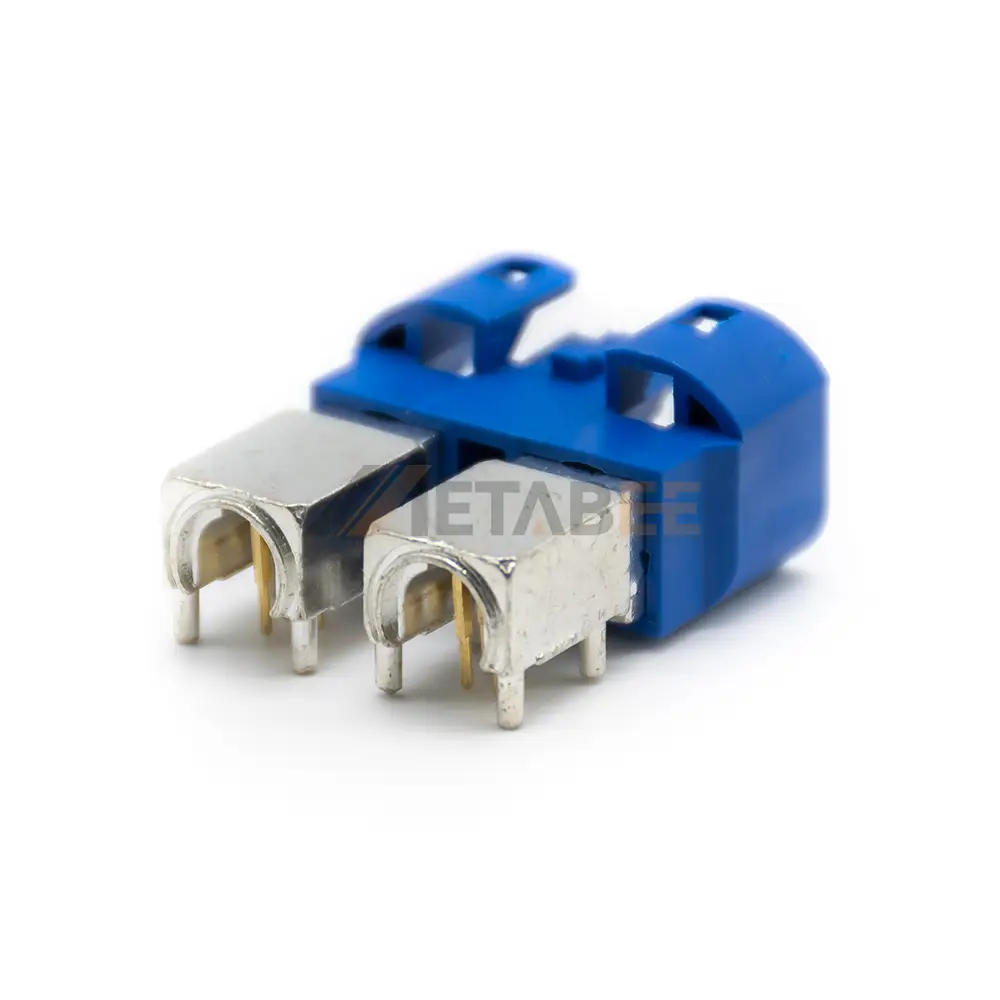

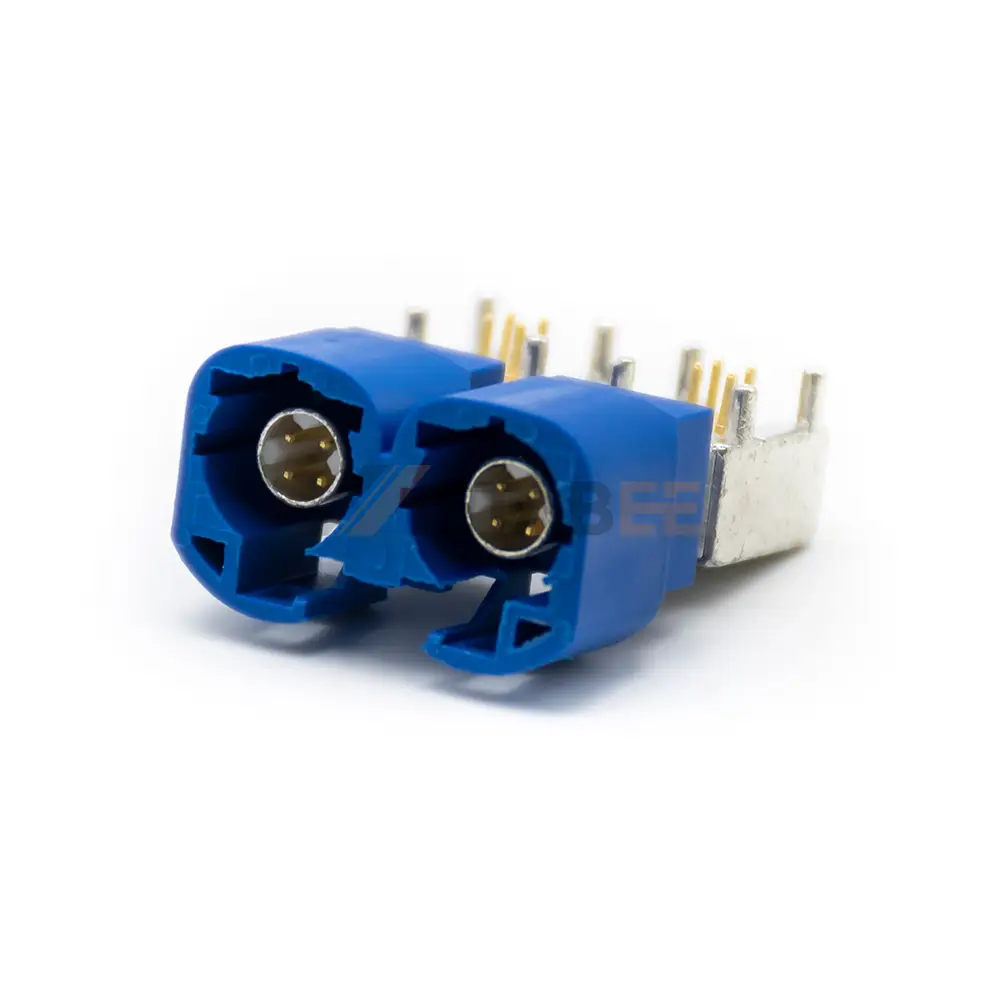

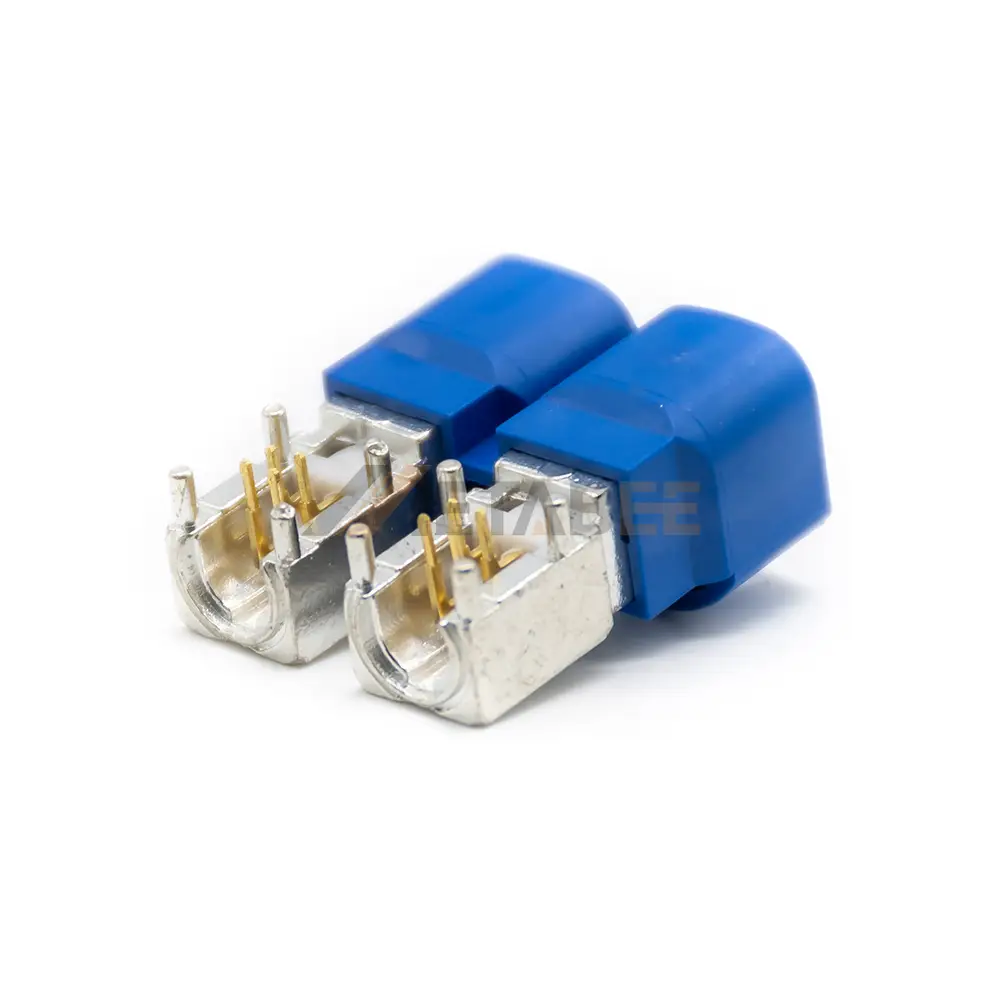

Dual HSD C Code 4+4 Pin Plug Connector for PCB, Through Hole
Introduction
The dual HSD connector is a high-performance interconnect solution designed for reliable signal transmission in demanding applications. Featuring a C-keyed design, this straight-mounting plug connector ensures secure mating and prevents misalignment. The 4+4 pin configuration supports dual-channel connectivity, making it ideal for high-speed data transfer with a frequency range of DC-2 GHz. Its robust construction includes a PA plastic housing for durability and a zinc alloy outer conductor with nickel plating, ensuring excellent EMI shielding and corrosion resistance. The inner conductors are made of copper alloy with gold plating, providing low contact resistance (100 ohms) and superior signal integrity.
Engineered for PCB through-hole mounting, this connector offers a solder termination method for strong, reliable connections. It operates seamlessly across a wide temperature range (-40°C to 105°C), making it suitable for industrial, automotive, and telecommunications applications. The HSD Connector series delivers high-speed performance while maintaining mechanical stability and electrical efficiency.
Key Features:
- 4+4 Pin configuration for reliable data transmission.
- Through-hole PCB mount for secure installation.
- C-keying for accurate and safe mating.
- Copper alloy inner conductor with gold plating for high conductivity.
- Zinc alloy outer conductor with nickel plating for durability.
- Frequency range DC-2 GHz, ensuring high-speed data transfer.
- Operating temperature range of -40°C to 105°C for diverse applications.
Main Specifications:
General Information:
| Part No.: | 102-11-10001 | |
| Product Series: | HSD Connectors | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Straight | |
| Connector Coding: | C | |
| Number of Contacts: | 2 Port | |
| Number of Positions: | 4+4 Pin | |
| Contact Termination: | Solder | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Temperature Range: | -40°C to +105°C | |
| Other Feature: | None |
Materials and Plating:
| Plastic Housing: | PA | |
| Outer Contact Material: | Zinc Alloy | |
| Outer Contact Plating: | Nickel Plated | |
| Inner Contact Material: | Copper Alloy | |
| Inner Contact Plating: | Gold-Plated | |
| Insulator Material: | PTFE |
Electrical Performance:
| Impedance: | 100 Ohms | |
| Frequency Range: | DC – 2 GHz | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Withstanding Voltage: | 250 V rms | |
| Operating Voltage: | 100 V rms | |
| Durability: | ≧25 Cycles | |
| Signal Contact Resistance: | 10 mΩ Max | |
| Outer Contact Resistance: | 7.5 mΩ Max |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Dual HSD C Code 4+4 Pin Plug Connector for PCB:
HSD (High Speed Data) connectors are a crucial component in modern electronics, particularly in applications that demand robust, reliable, and high-frequency data transmission.
Here are some main applications:
- Advanced Driving Assistant System (ADAS)
- Automotive Infotainment Systems;
- In-Vehicle Networking (IVN);
- GPS and Navigation Units;
- VR headsets and displays;
- Telecommunications Infrastructure:
- Surgical Equipment and Robot-Assisted Surgery.
