Introduction:

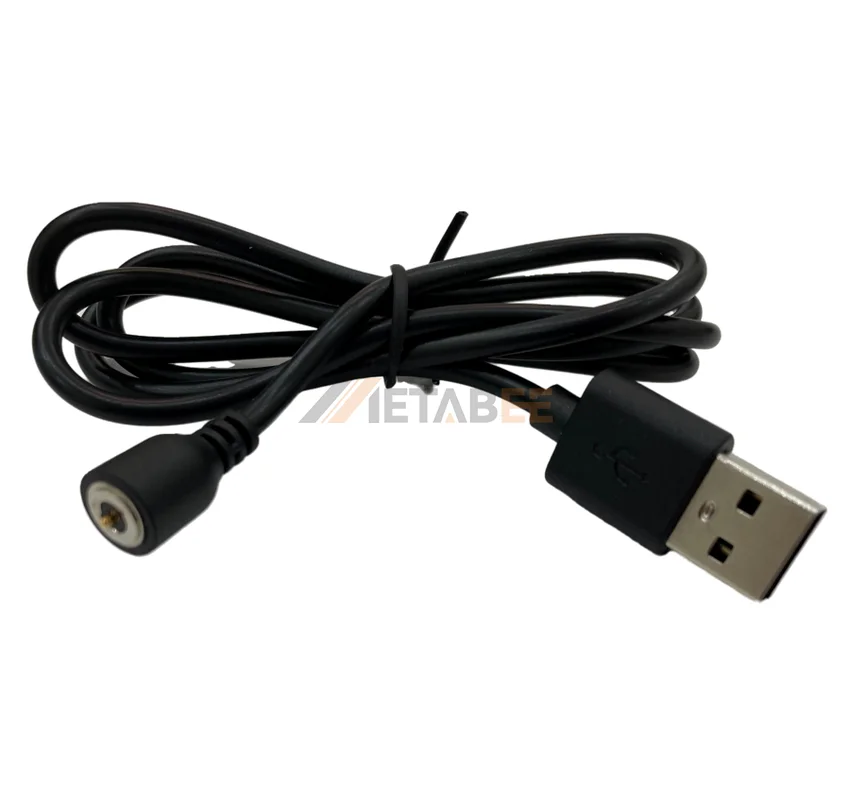

This magnetic pogo pin charger is a single-pin discrete cable assembly designed for circular charging interfaces. It features a 1-pin straight orientation with a circular magnetic head, enabling automatic self-alignment to ensure the plunger centers perfectly on the target contact. The connector is rated for 3A and 12VDC, providing a stable power delivery profile for devices with matching single-point docking pads. With a 1.1mm working stroke and 80g contact force, it maintains constant electrical connectivity throughout 100,000 cycles. This component serves as a reliable charging solution for smart wearables and modular hardware where a secure, quick-release magnetic link is required.
Key Features
- 1-Pin Circular: Single-pin circular interface for specialized single-point docking.
- Magnetic Alignment: Self-aligning magnetic head ensures effortless and secure connection.
- Electrical Specs: Supports 3A current and 12VDC power delivery.
- Extreme Durability: 100,000-cycle life for long-term industrial or consumer use.
- Physical Parameters: 1.1mm working stroke with 80g reliable contact force.
Main Specifications:
General Information:
| Product No.: | CA-ST2-PHR-198-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 1 | |
| Connector 2-Shape: | Circular | |
| Connector 2-Orientation: | Straight | |
| Contact Material: | N/A | |
| Contact Plating: | Gold flash plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 22AWG | |
| Cable Length: | 800±20 mm | |
| Jacket Material & Color: | PVC 55P, Black |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max | |
| Insulation Resistance: | N/A | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 80gf±20gf | |
| Working Stroke: | 1.1mm | |
| Full Stroke: | 1.6mm | |
| Durability: | 100,000 Cycles |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
