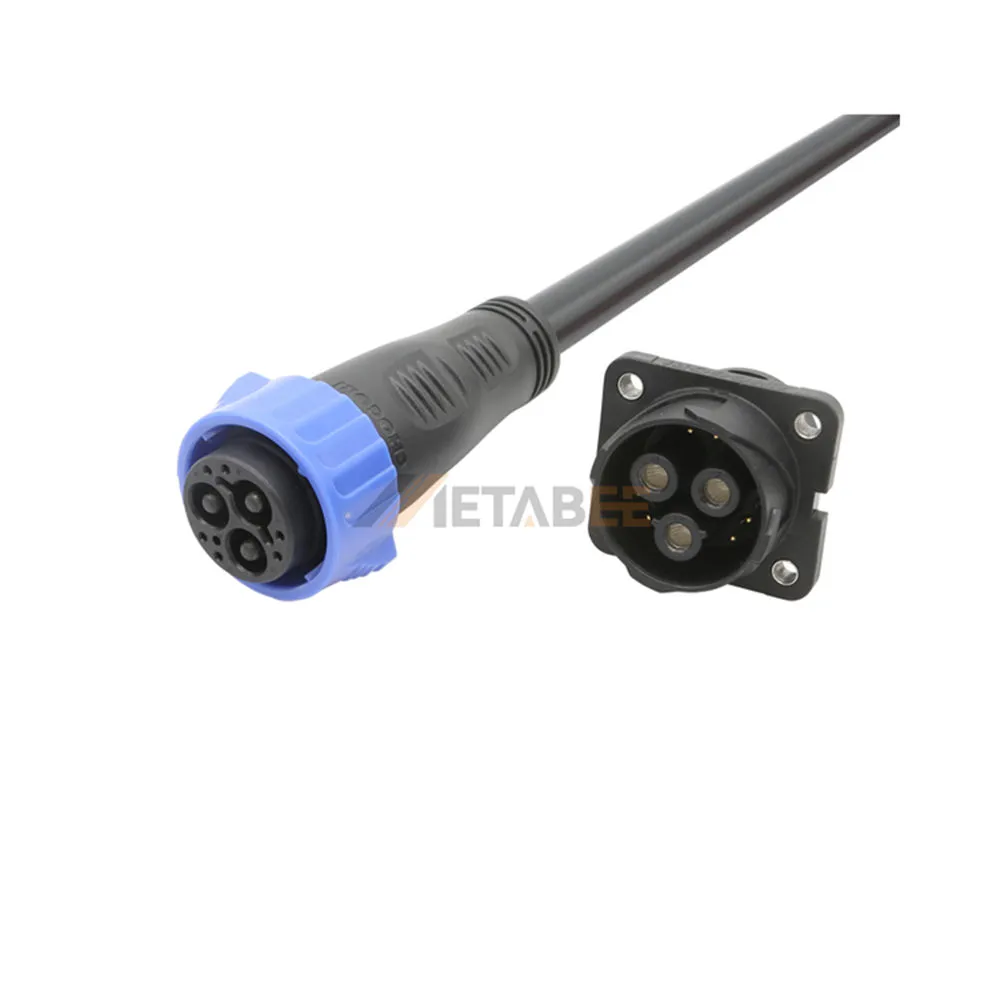

Circular Hybrid Power & Signal Connector for E-Motorcycles, 3+6 Pin
Introduction
The circular hybrid power & signal connector for e-motorcycles provides a compact connection interface for electric two-wheelers and light electric vehicles. It combines high-current power transmission and sensitive signal monitoring into one durable circular housing, effectively simplifying wire harnessing.
Built for harsh environments, this connector features an ip67 waterproof rating and an operating range of -40°c to 105°c. Constructed with a ul94v-0 flame-retardant shell, it delivers high dielectric resistance, ensuring electrical safety, battery protection, and vibration resistance on the road.
Key Features:
- Hybrid 3+6 pin configuration: Integrates power and signal lines in one circular body.
- Dual current capacity: Delivers 90a for power lines and 5a for signal transmission.
- Rated working voltage: Supports up to 300v dc power and 100v dc signal circuits.
- Strong withstand voltage: Resists up to 2,000v ac for power and 1,500v ac for signals.
- Ip67 waterproof sealing: Shields against heavy rain, dust, and washdowns.
- Rugged flame retardancy: Withstands temperatures from -40°c to 105°c with ul94v-0 rating.
Main Specifications:
General Information:
| Part No.: | YC-E1001-004 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 3+6 Pin | |
| Wire Gauge: | Power 5AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V DC (Power), 100V DC (Signal) | |
| Rated Current: | 90A+5A | |
| Insulation Resistance: | 100MΩ at DC 500V | |
| Withstanding Voltage: | 2,000V AC (Power), 1500V AC (Signal) |
|
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
