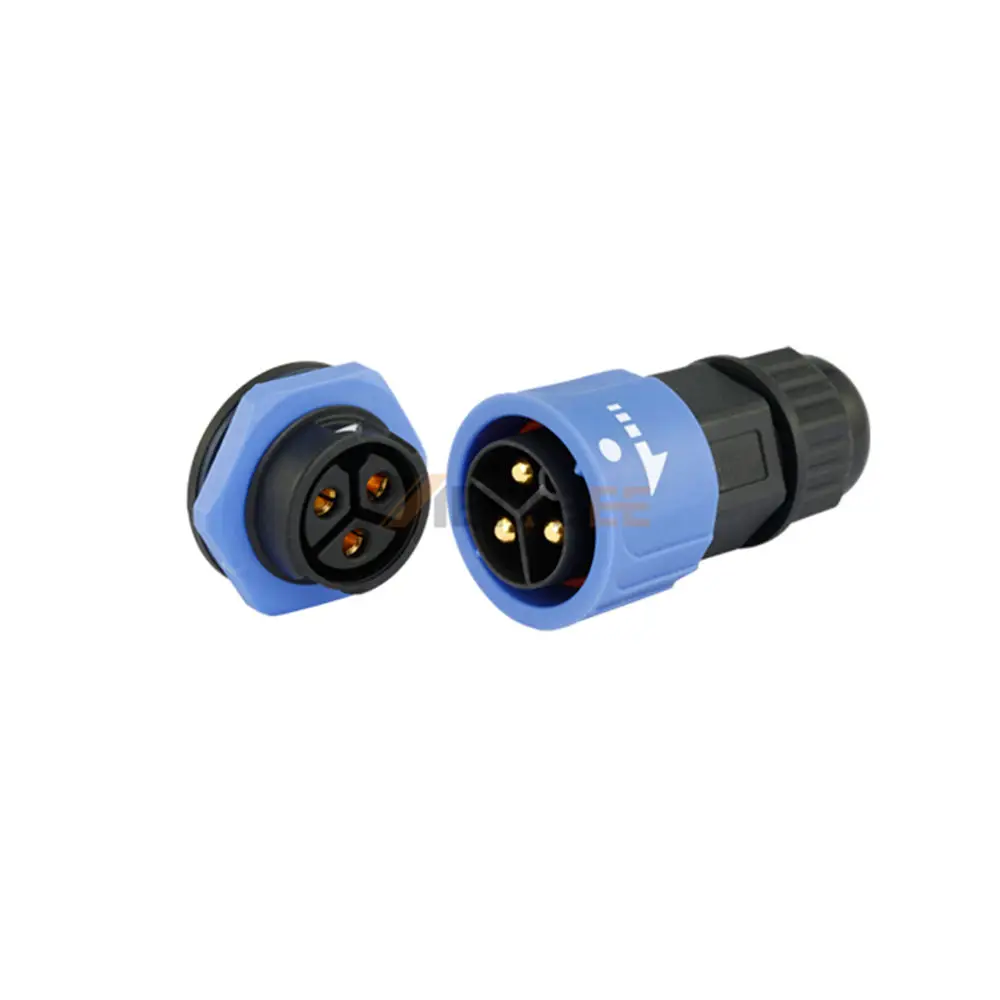

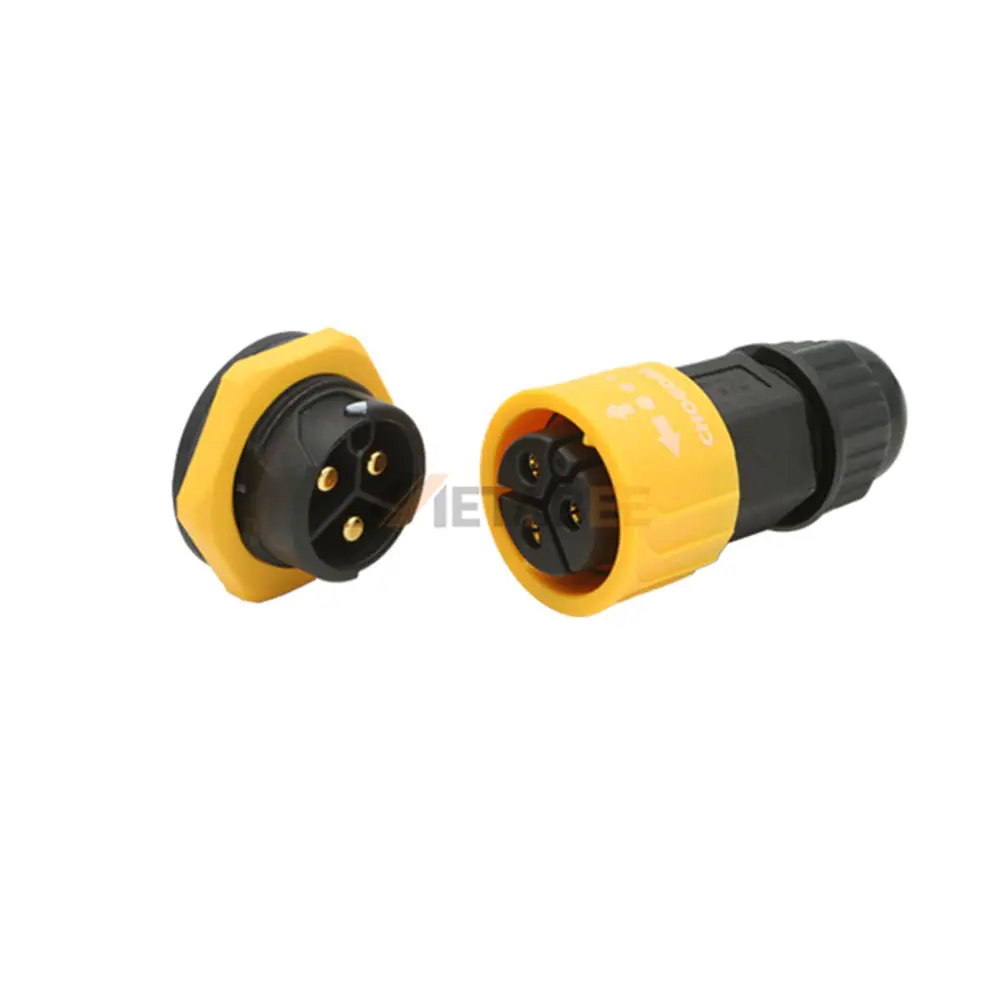

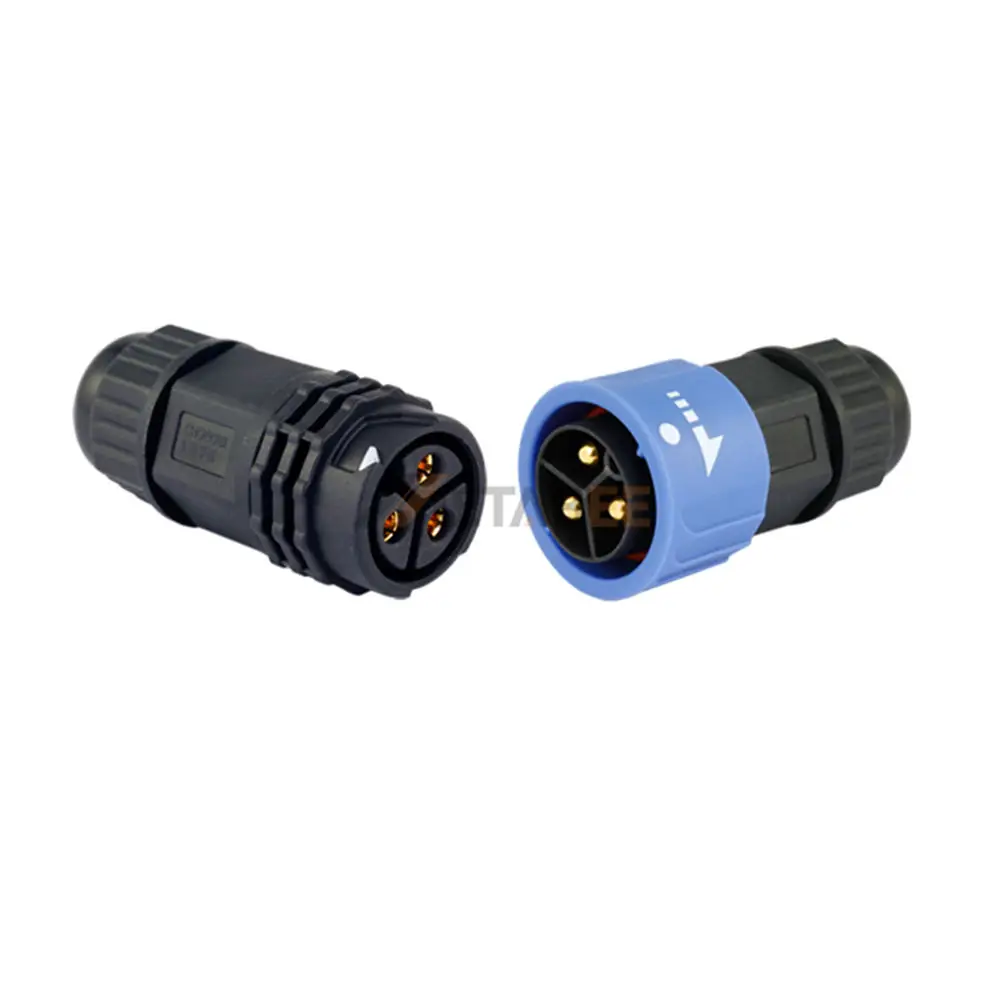

Circular E-Motorcycle Power Charger, 3 Pin, Push Lock, IP67
Introduction
The Circular E-motorcycle power charger, 3 pin, push lock, IP67 is designed for reliable power transmission in electric motorcycle charging systems. Its circular design and push-lock mechanism support secure connections, while the IP67 protection rating helps prevent dust and water ingress in demanding environments.
Featuring UL94V-0 flame-retardant materials and an operating temperature range of -40°C to +105°C, this 3-pin charging connector is suitable for electric motorcycle applications requiring durable construction and dependable electrical performance.
Key Features:
- Connector Type: 3-pin circular power charging connector
- Locking Mechanism: Push-lock design
- Protection Rating: IP67 dust and water protection
- Flame Retardancy: UL94V-0 rated
- Operating Temperature: -40°C to +105°C
- Application: Electric motorcycle charging systems
Main Specifications:
General Information:
| Part No.: | YC-E1001-0031 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2 Pin | |
| Wire Gauge: | 12~10AWG | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V | |
| Rated Current: | 40A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
