Introduction:
This 2 pin magnetic pogo pin connector is a straight female terminal designed for specialized circular docking interfaces. It features a high current capacity of 5A and supports both 12V and 24V DC systems, facilitating efficient power delivery in demanding applications. The brass contacts are plated with 10u” gold over nickel to maintain low contact resistance and ensure high conductivity. High-temperature thermoplastic insulation provides mechanical durability and heat resistance during operation. This connector enables effortless self-alignment via integrated NdFeB magnets for secure electrical links. It serves as a reliable charging or signal port for smart wearables and medical hardware where a quick-release magnetic interface is necessary.
Key Features
- High Current: Supports 5A current for efficient power delivery.
- Magnetic Alignment: NdFeB magnets enable automatic self-aligning docking.
- Durable Plating: 10u” gold plating prevents brass oxidation.
- Multiple Voltages: Supports both 12V and 24V DC ratings.
- Stable Housing: Hi-temp thermoplastic ensures reliable industrial use.
Main Specifications:
General Information:
| Product No.: | PHR-C4777-02-FVP-800/PHR-C4777-02A-FVP-800 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 2 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Circular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | N/A | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 5A | |
| Rated Voltage: | 12V DC / 24V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 10u” Gold plated over Nickel | |
| Spring Material: | N/A | |
| Magnet: | NdFeB |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |

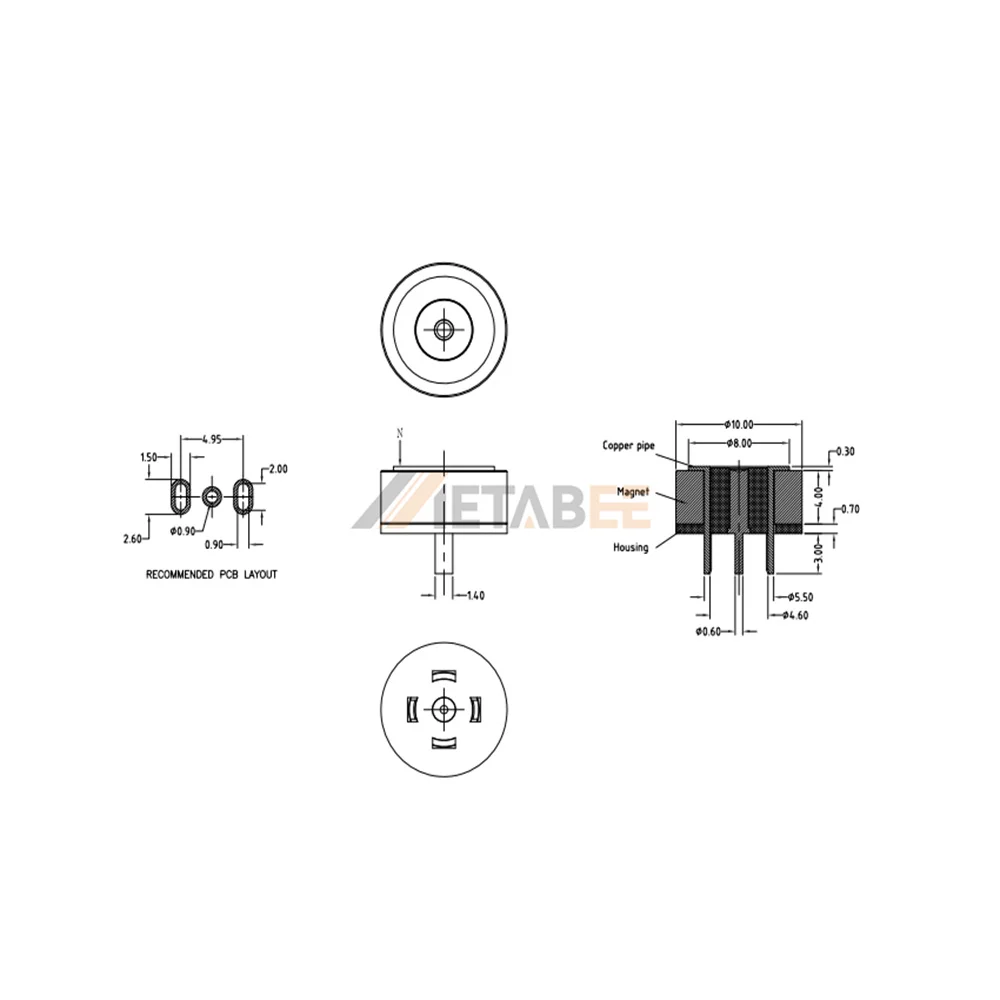

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
