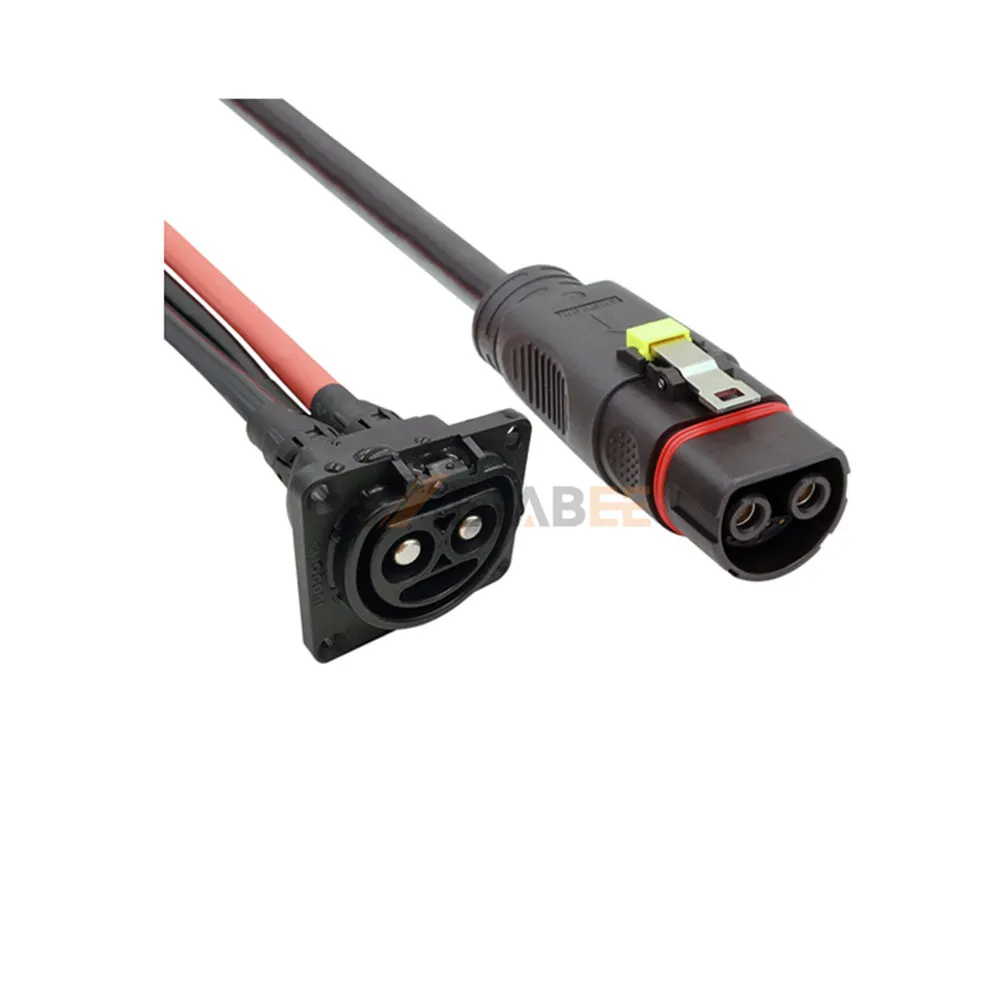

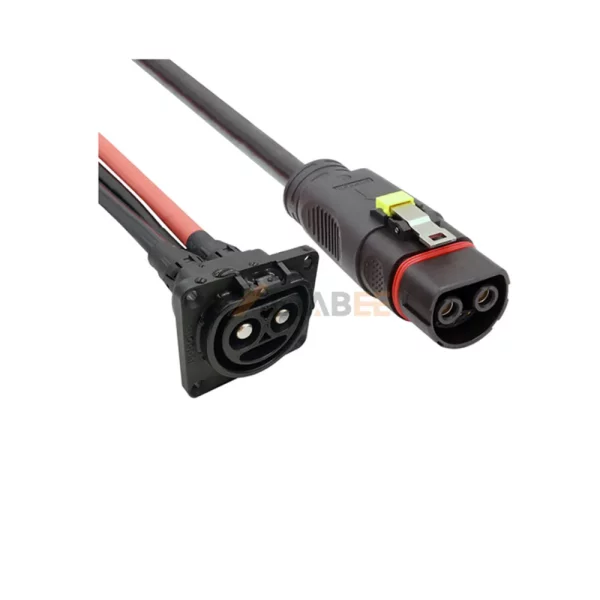

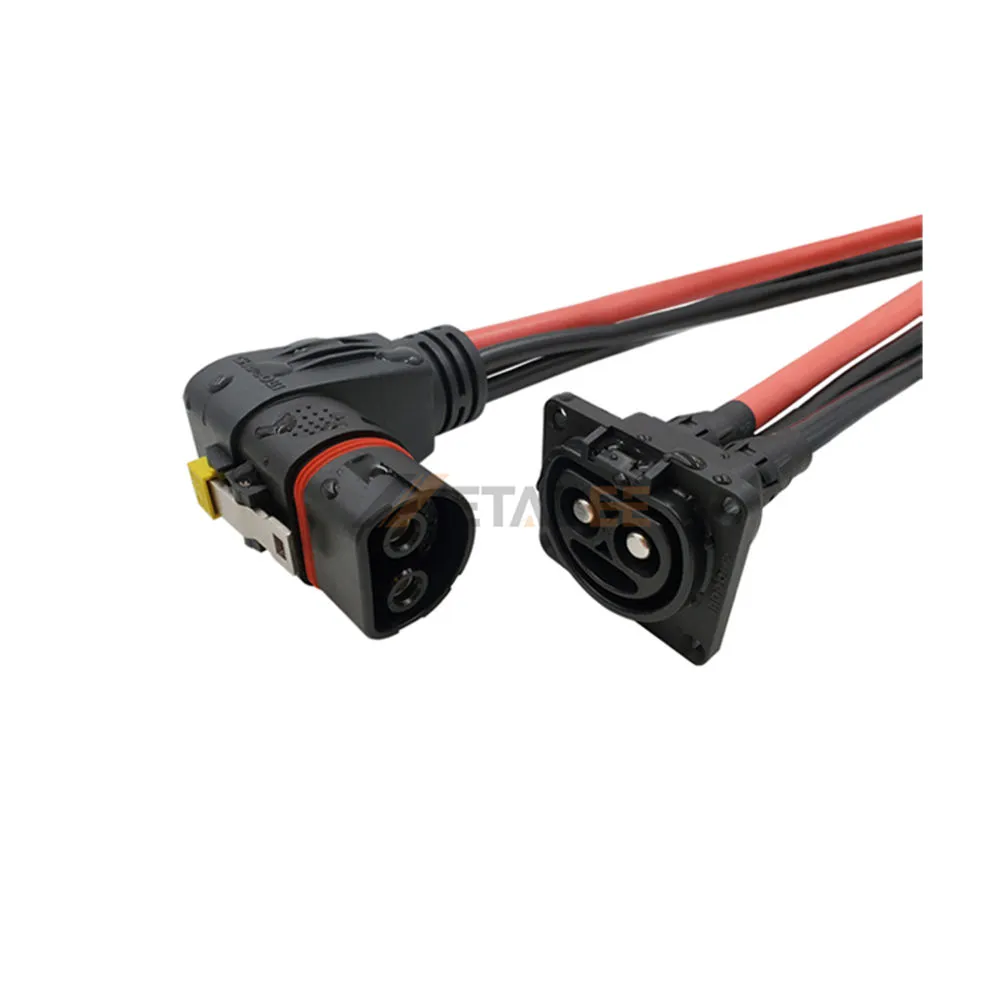

Waterproof Charging & Discharging Electrical Connector for Motorcycles, 2+6 Pin
Introduction
Introducing our advanced waterproof charging & discharging electrical connector for motorcycles, engineered for the demanding requirements of electric motorcycle applications. This high-performance connector ensures reliable power and signal transmission, providing a secure and efficient connection for both charging and discharging operations. Designed with safety and durability in mind, it’s an essential component for modern electric vehicle infrastructure.
This robust connector boasts a versatile 2+6 Pin configuration, capable of handling significant power with a rated current of 100A for power lines and 5A for signal lines. It supports a rated voltage of 630V DC (Power) and 100V DC (Signal), with impressive withstand voltages of 3,500V AC (Power) and 1,500V AC (Signal). Built to endure harsh environments, it features an IP67 rating for superior water and dust protection, a UL94V-0 flame retardant rating for enhanced safety, and operates flawlessly across a wide temperature range from -40°C to 105°C.
Key Features:
- 2+6 Pin Configuration: Optimized for power and signal.
- High Current & Voltage: 100A (Power) / 5A (Signal); 630V DC (Power) / 100V DC (Signal).
- Exceptional Withstand Voltage: Up to 3,500V AC (Power).
- IP67 Waterproof & Dustproof: Reliable in challenging conditions.
- UL94V-0 Flame Retardant: Enhanced safety standards.
- Wide Operating Temperature: -40°C to 105°C.
Main Specifications:
General Information:
| Part No.: | YC-E1001-002 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+6 Pin | |
| Wire Gauge: | Power 25mm/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 630V DC (Power), 100v Dc (Signal) | |
| Rated Current: | 100A+5A | |
| Insulation Resistance: | >100MΩ | |
| Withstanding Voltage: | 3,500V AC (Power), 1,500V AC (Signal) |
|
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
