Cat8 RJ45 Modular Jack, Single Port, 8P8C, 25G Base-T, Shielded, Green/Green LED, R/A
Introduction:
This advanced single port RJ45 modular jack is engineered to meet the rigorous demands of Cat8 networking. It supports ultra-fast 25G Base-T data speeds, making it ideal for high-bandwidth data centers. The connector features a standard 8P8C interface equipped with integrated green/green LEDs for clear status indication. Built with a fully shielded housing, it effectively prevents electromagnetic interference to maintain signal purity. The unit utilizes a right-angle design with through-hole mounting, ensuring a durable and stable connection to the printed circuit board.
Key Features
- 25G Base-T Performance: Facilitates ultra-fast data transmission up to 25 Gbps.
- Cat8 Compliance: Designed to meet high-performance Cat8 cabling standards.
- EMI Shielding: Metal housing ensures signal integrity by blocking interference.
- Green/Green LEDs: Dual indicators provide instant visual feedback on connectivity.
- Right Angle Mounting: Through hole design offers secure mechanical PCB retention.
Main Specifications:
General Information:
| Product No.: | MTJ-88AGX1-FS-VLD-M501C-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 25G Base-T | |
| Performance Category: | CAT8 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

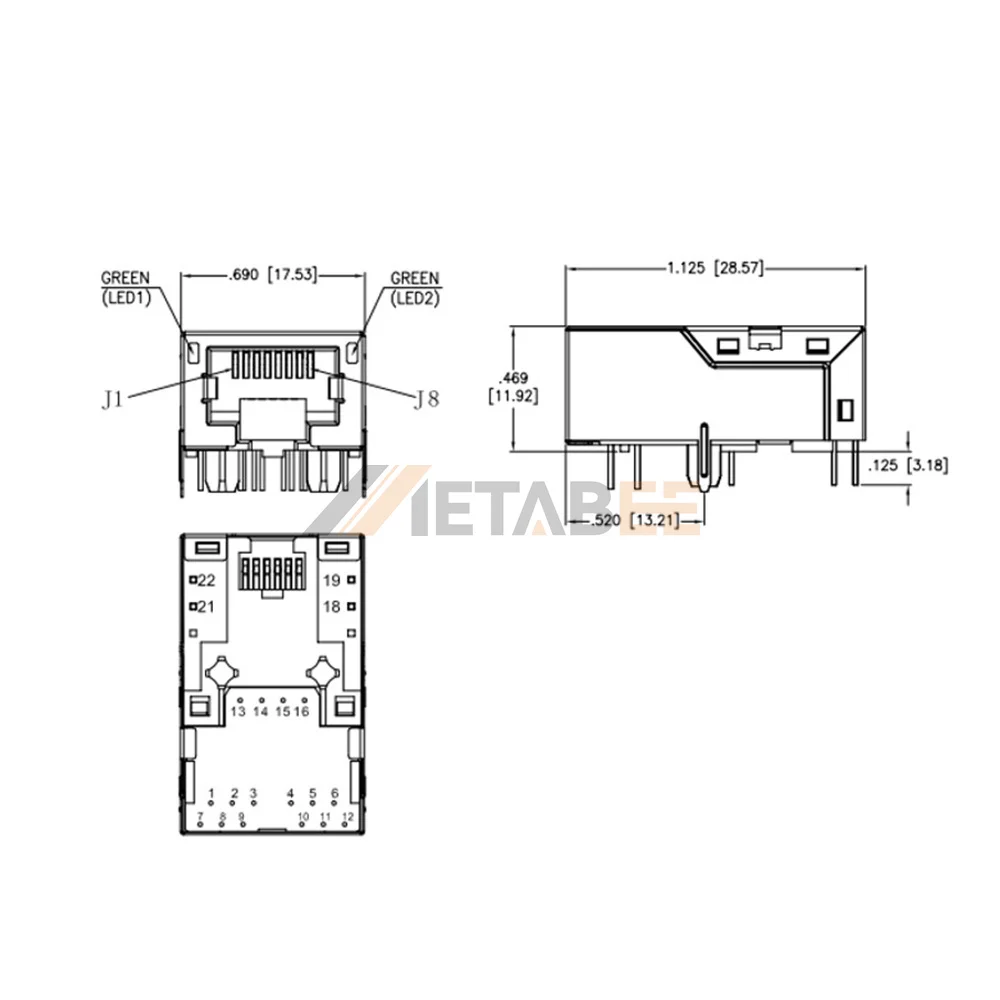

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
