Cat5e RJ45 Plug Modular Connector for Flat Stranded Cable, Shielded, 8P8C, Brass Shell
Introduction:
This Cat5e RJ45 plug provides a reliable high-speed networking interface for local area connections. It is engineered with an 8P8C configuration to terminate flat stranded cables used in slim patch cord assemblies. The inclusion of a brass shell provides essential shielding against EMI to ensure data integrity in interference-prone environments. Constructed with clear polycarbonate, the internal housing allows for easy verification of pin alignment during assembly. This connector meets Cat5e performance standards to support efficient data transmission. A high insulation resistance of 1000 Mohms ensures long-term electrical stability for various telecommunication hardware.
Key Features
- Cat5e Performance: Supports high-speed data transmission for Ethernet networks.
- Brass Shell Shielding: Provides robust protection against electromagnetic interference.
- 8P8C Modular Design: Features standard interface for flat stranded cables.
- Polycarbonate Housing: Ensures durability with a clear inspection view.
- High Insulation Resistance: Maintains signal stability with a 1000 Mohms rating.
Main Specifications:
General Information:
| Product No.: | MTP-88-X-EMI | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | CAT5e | |
| Wire Type: | Stranded | |
| Cable Type: | Flat | |
| Wire range: | 24-26AWG | |
| OD of the Individual Cable Core: | 0.89∼0.99 mm | |

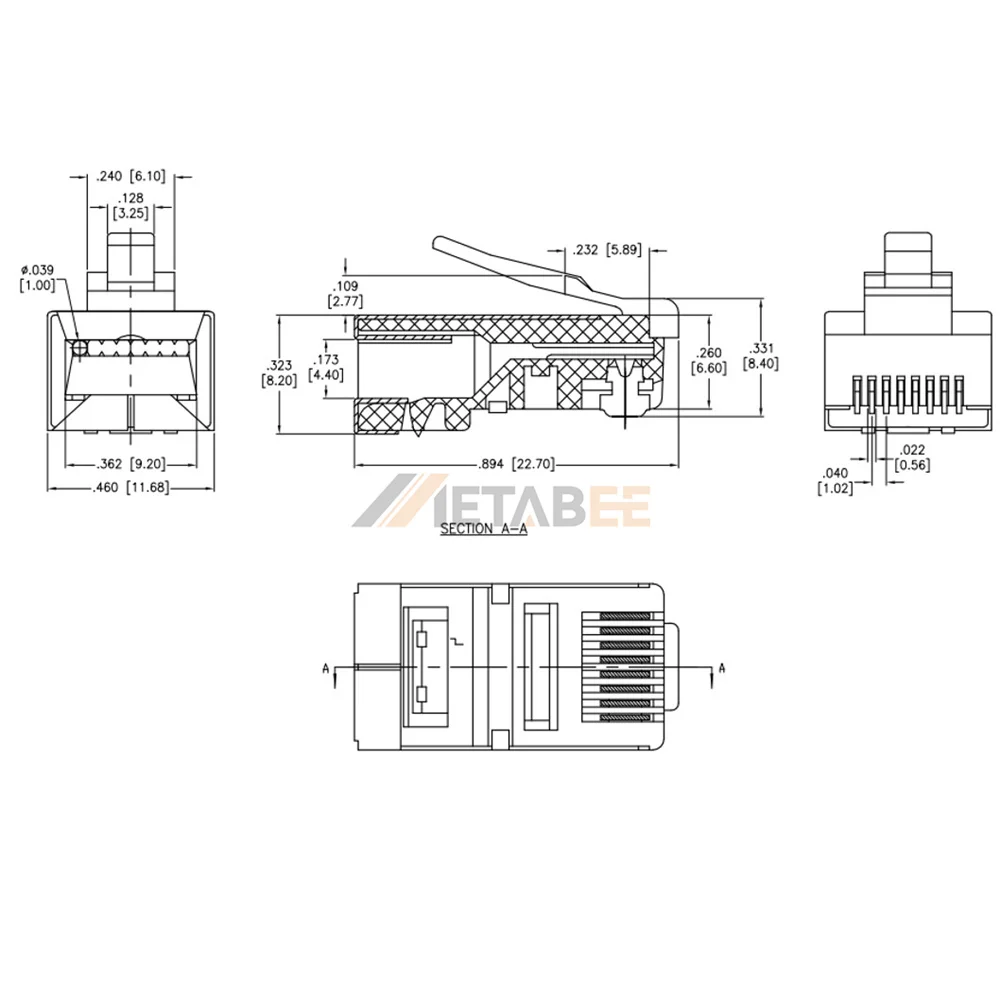

| Body Length: | 22.44 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
