Introduction:
Establishing reliable gigabit connections is easy with this RJ45 male plug. It is designed to work with round stranded wires that have a 24-26AWG range. Because it meets Cat5e standards, the connector supports data speeds up to 1000 Mbps for local area networks. The unshielded design offers a lightweight housing for standard office or home networking environments. Installers can see through the clear polycarbonate material to check pin alignment before the final crimping step. This 8P8C modular component ensures a stable electrical bond with multiple copper conductors. Technicians often select this plug for creating custom-length patch cables.
Key Features
- Cat5e Speed: Supports data transmission up to 1000 Mbps.
- Round Stranded Compatibility: Optimized for secure termination on cylindrical wires.
- 24-26AWG Support: Fits standard copper conductors for flexible assemblies.
- Unshielded UTP Design: Provides a cost-effective solution for indoor networks.
- Clear PC Housing: Allows quick visual verification of internal wiring.
Main Specifications:
General Information:
| Product No.: | MTPR-88-X-C5E | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat5e | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |

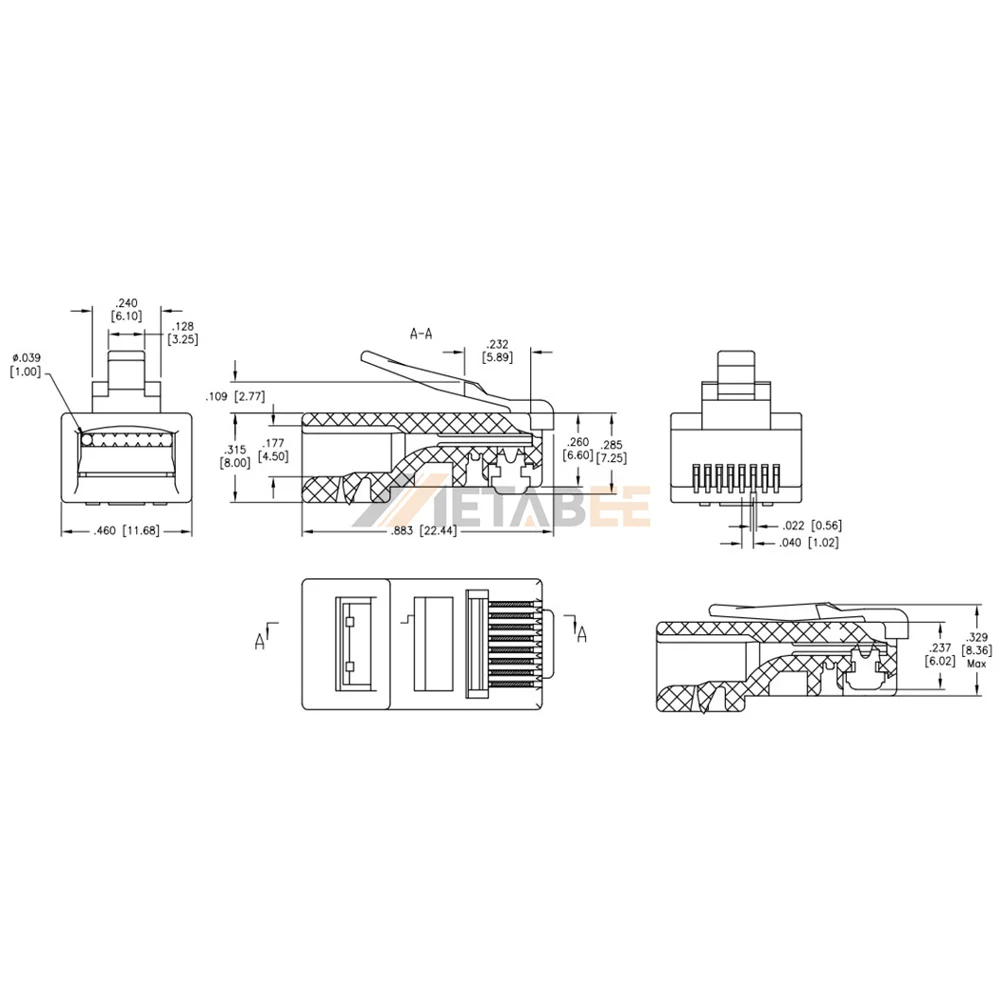

| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
