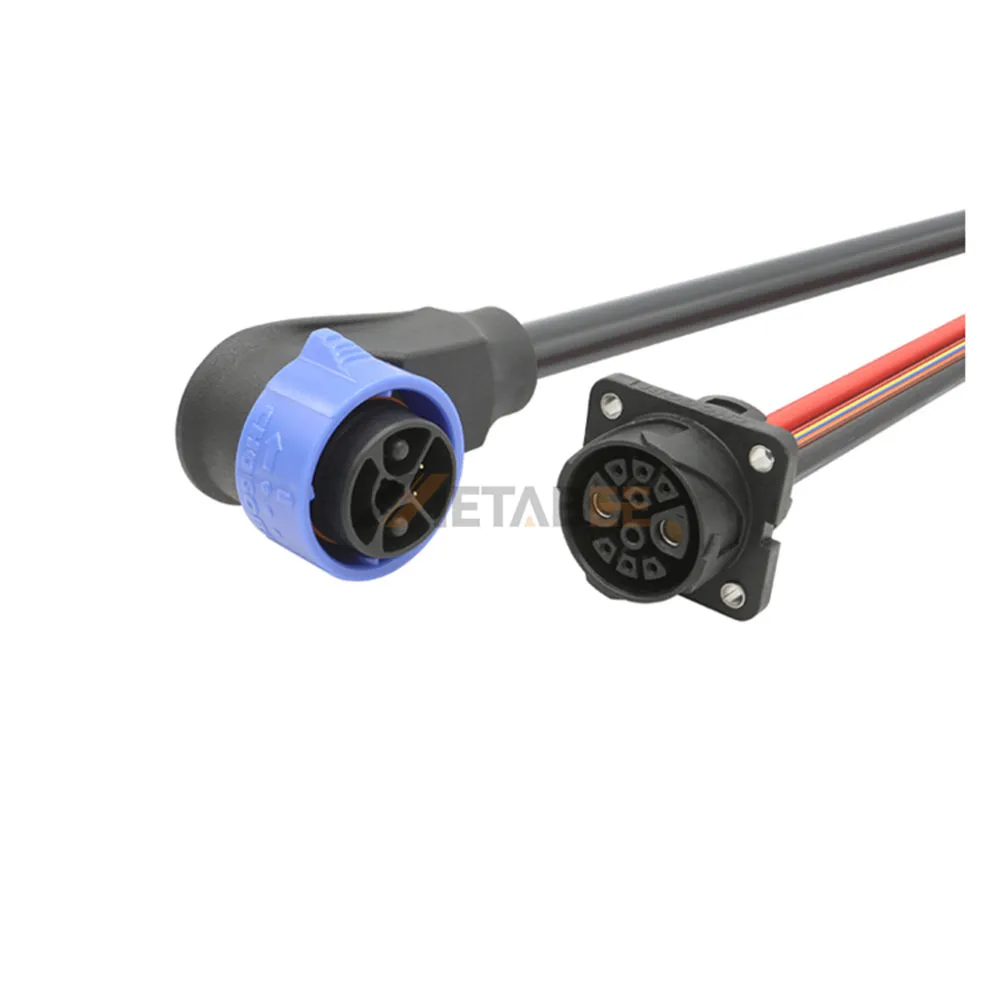

Circular Battery Power & Signal Hybrid Connector for E-Motorcycles, 2+8 Pin
Introduction
The 2+8 pin circular battery power and signal hybrid connector for e-motorcycles integrates high-current power and signal transmission in one compact interface. Designed for electric motorcycle battery systems, it supports reliable electrical connectivity, efficient power delivery, and stable signal communication.
With an ip67 protection rating, this connector provides protection against dust and temporary water immersion. Its ul94v-0 flame-retardant housing and wide operating temperature range of -40°c to 105°c make it suitable for demanding electric motorcycle applications.
Key Features:
- Pin configuration: 2+8 pin hybrid design.
- Rated current: 90a for power and 5a for signal.
- Rated voltage: 300v dc for power and 100v dc for signal.
- Withstand voltage: 2,000v ac for power and 1,500v ac for signal.
- Protection rating: ip67 dust and water protection.
- Safety and temperature: ul94v-0 flame retardancy; operating temperature from -40°c to 105°c.
Main Specifications:
General Information:
| Part No.: | YC-E1001-005 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+8 Pin | |
| Wire Gauge: | Power 5AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V DC (Power), 100V DC (Signal) | |
| Rated Current: | 90A+5A | |
| Insulation Resistance: | 100MΩ at DC 500V | |
| Withstanding Voltage: | 2,000V AC (Power), 1500V AC (Signal) |
|
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
