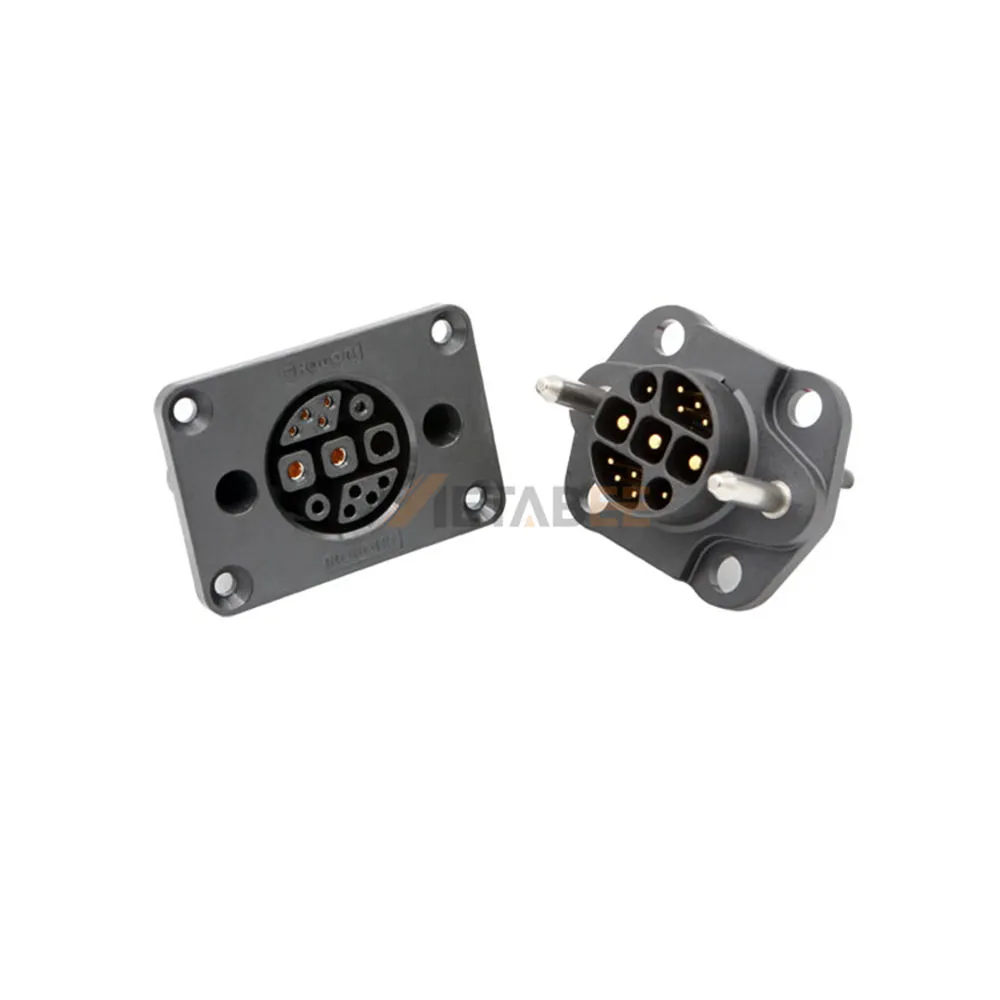

Battery Hybrid Power & Signal Charger for Electric Motorcycle, 2+5 Pin
Introduction
Upgrade your two-wheeler charging infrastructure with this robust hybrid power and signal connector. Engineered specifically for electric motorcycles and light EVs, it integrates high-power battery charging with sensitive signal transmission into a compact, space-saving interface.
Built for dependable performance under extreme conditions, this connector features a rugged UL94V-0 flame-retardant housing and IPX5 water resistance. It ensures steady electrical conductivity, stable data communication, and high operational safety across severe weather environments.
Key Features:
- Hybrid 2+5 Pin Layout: Combines 2 power pins and 5 signal contacts for simultaneous charging and BMS data transfer.
- UL94V-0 Flame Retardant: Self-extinguishing thermoplastic housing provides maximum fire safety and heat resistance.
- IPX5 Waterproof Rating: Shields vital terminals against moisture, rain, and low-pressure water jets.
- Wide Operating Temperature: Performs reliably from -40°C up to 105°C in extreme climates.
- Secure Signal Integrity: Minimizes interference to maintain precise system monitoring during rapid charging.
- Compact Durability: Vibration-proof and wear-resistant design tailored for heavy-duty electric motorcycle applications.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0041 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+5 Pin | |
| Wire Gauge: | Power 12mm²/Max, Signal 22AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 72V DC | |
| Rated Current: | 30A+A | |
| Insulation Resistance: | 500MΩ at DC 500V | |
| Withstanding Voltage: | 1,200V AC | |
| Durability (Mating): | 5000 Cycles |
Environmental Performance:
| IP Rating: | IPX7 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
