Introduction:
This professional 90 degree RJ45 modular jack is designed to provide high-speed data connectivity for modern PCB applications. The single port 8P8C unit features integrated yellow and green LEDs to provide immediate visual feedback on network activity and link status. To ensure superior signal integrity, the connector is encased in a full nickel-plated copper alloy shield that effectively blocks electromagnetic interference. The housing is constructed from hi-temp thermoplastic, making it capable of withstanding the intense heat of industrial soldering. With gold-plated phosphor bronze contacts and a tab-up latching orientation, it delivers both excellent electrical conductivity and ease of use in compact electronic designs.
Key Features
-
Full Shielding: Nickel-plated copper alloy housing effectively blocks external interference.
-
Integrated LEDs: Yellow and green indicators provide instant link status feedback.
-
Tab-Up Latching: Top-latch orientation facilitates easy cable insertion and removal.
-
Hi-Temp Thermoplastic: Durable housing withstands extreme industrial wave soldering heat.
-
Gold Plated Contacts: Phosphor bronze terminals ensure superior electrical signal conductivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-FS-PG-LG-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield | |
| LED Indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

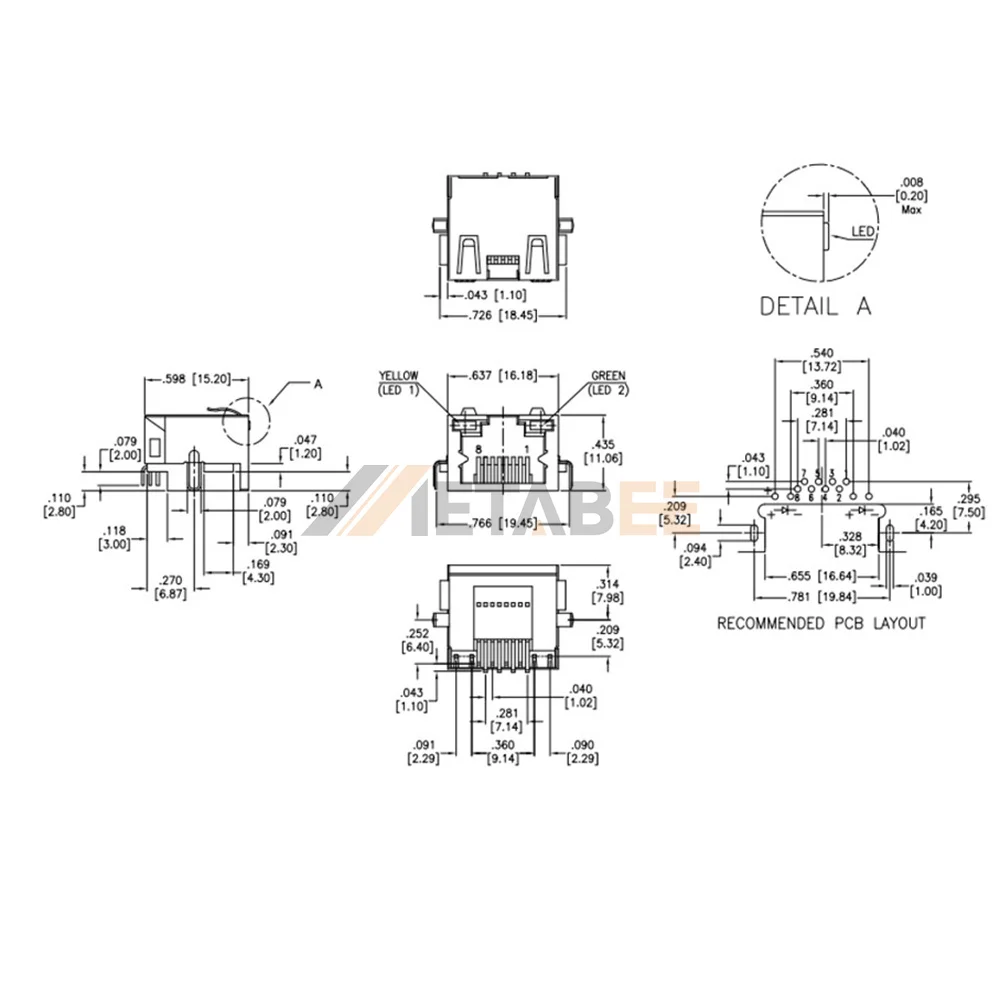

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
