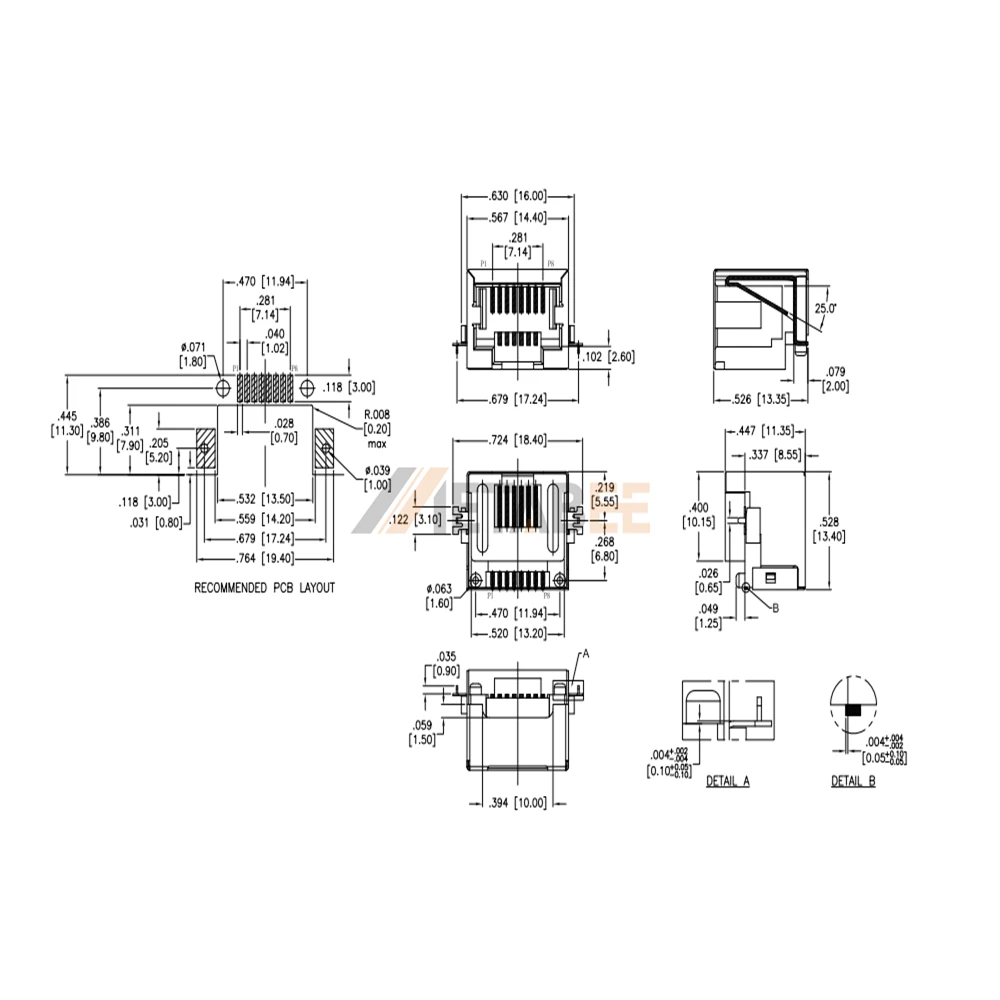

90 Degree RJ45 LAN Port 8P8C PCB Jack, 1 Port, Unshielded, Tab-Down, Surface Mount, No LED
Introduction:
This is a single port 90 degree RJ45 LAN port 8P8C PCB jack designed for space-efficient surface mount attachment. It features a hi-temp thermoplastic housing that handles the thermal demands of SMT reflow soldering without warping or physical damage. The Phosphor Bronze contacts are finished with Gold over Nickel plating to provide a reliable 1.5A current rating and superior conductivity. Because it utilizes a 90 degree right angle and Tab-Down configuration, the component effectively optimizes vertical space on compact circuit boards. The unshielded design maintains a high insulation resistance of 500MΩ Min to ensure electrical safety across all data paths. Technicians utilize this rj45 jack 8p8c for standard networking equipment and commercial telecommunication devices requiring a low-profile SMT footprint.
Key Features
- SMT Surface Mount: Supports high-speed automated PCB assembly processes.
- 90 Degree Angle: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Housing survives intense heat during reflow soldering.
- 8P8C Interface: Provides standard modular connectivity for networking systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-RF3-SMT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
