8P8C Vertical RJ45 PCB Modular Jack Female Connector, 1 Port, STP, Tab-Down, Through Hole, Green/Green
Introduction:
Supporting stable top-entry through hole mounting, this single port 8P8C vertical RJ45 female connector provides a reliable interface for networking boards. Each modular pcb jack features a nickel-plated brass shell that provides a full STP shield to maintain signal integrity against external electromagnetic noise. The housing is crafted from hi-temp Nylon 46 reinforced with glass fiber to survive intense wave soldering without warping. Integrated dual Green LEDs allow for instant link status monitoring while the Gold flash over Nickel plated Phosphor Bronze contacts ensure a stable 1.5A current rating. Technicians utilize this reliable interface for industrial telecommunication gear and data networking hardware requiring space-efficient vertical connectivity.
Key Features
- Vertical STP Interface: Provides standard 8P8C connectivity with full metallic shielding.
- Integrated Dual LEDs: Features Green-Green lights for immediate status diagnostics.
- Glass-Fiber Nylon 46: High-strength housing withstands intense industrial assembly heat.
- Gold Flash Contacts: Ensures superior conductivity and lasting signal stability.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LD-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Nylon46, glass fiber | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

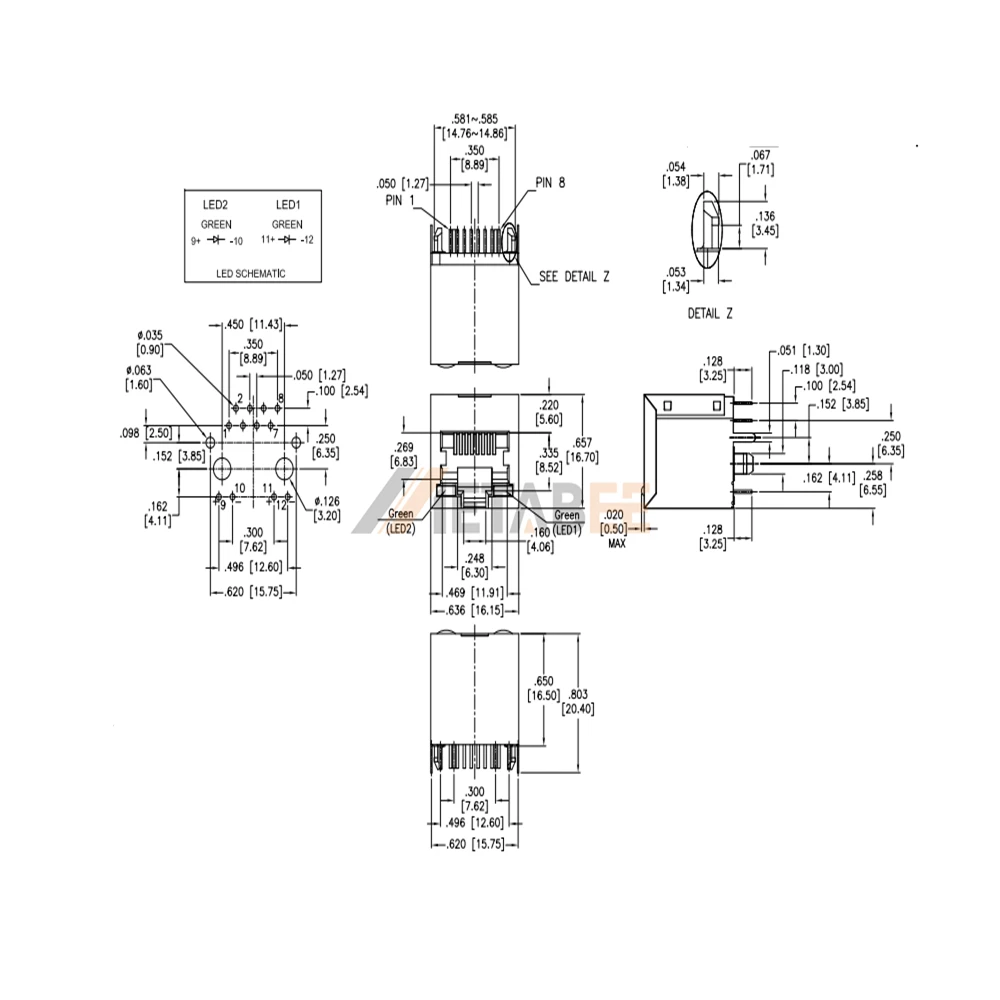

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
