8P8C Vertical RJ45 Female Jack, 1 Port, Shielded, Tab-Down, Through Hole, Yellow – Green/Yellow
Introduction:
This is a single port 8P8C shielded vertical RJ45 female jack designed for stable top-entry through hole mounting on networking circuit boards. It features a nickel-plated brass shell that provides a robust barrier against electromagnetic interference to safeguard signal integrity across all data paths. The housing is crafted from glass-fiber reinforced PBT to ensure high structural stability and heat resistance during industrial assembly processes. Premium Phosphor Bronze contacts with Gold over Nickel plating support a consistent 1.5A current rating for reliable signal transmission. Integrated Yellow and Green LEDs offer instant link status diagnostics while maintaining a high dielectric strength of 1500 Vrms. Technicians utilize this reliable interface for industrial automation systems and networking hardware requiring secure vertical connectivity.
Key Features
- Full EMI Shielding: Brass shell protects data from external signal interference.
- Vertical Mounting: Optimizes top-entry connectivity for compact board layouts.
- Integrated Status LEDs: Provides instant link and activity diagnostic feedback.
- Glass-Fiber PBT Housing: Robust material survives intense industrial soldering heat.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88FX1-FSN-L33 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green/Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass fiber | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

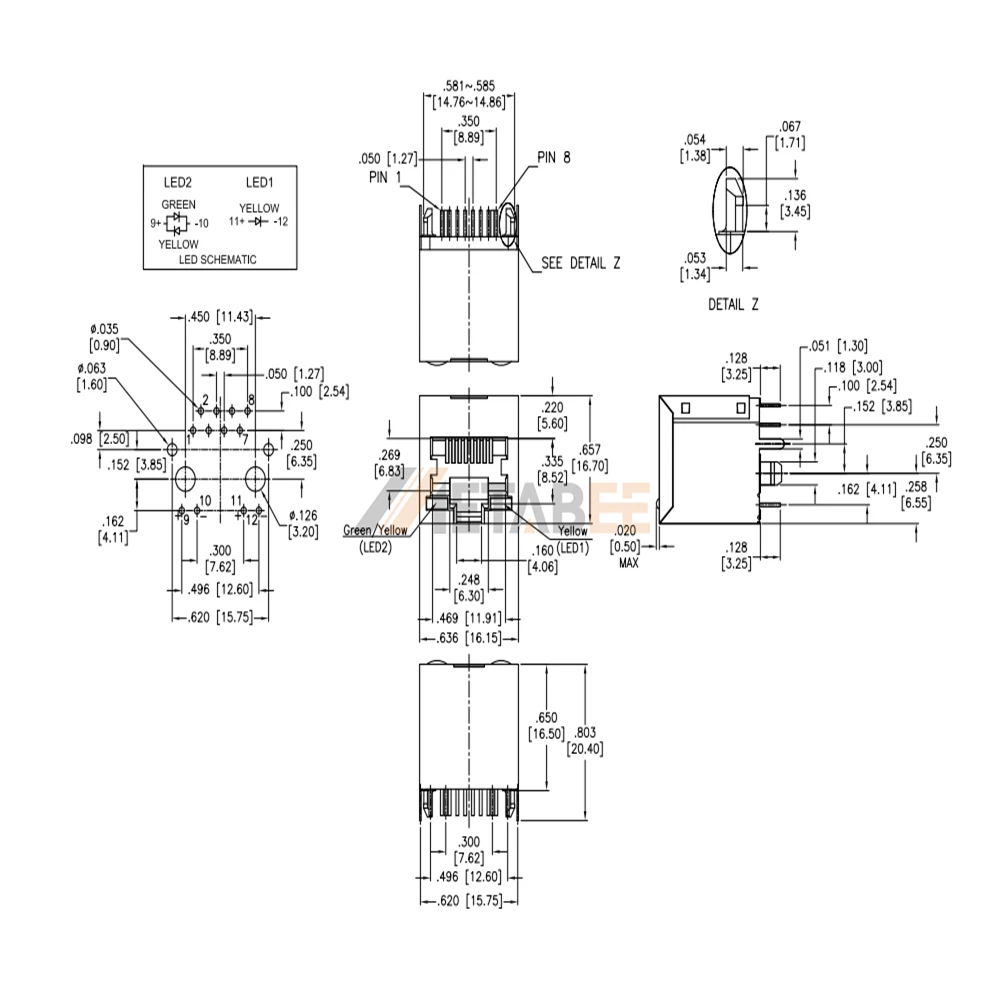

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
