8P8C Unshielded RJ45 Connector Socket with LEDs, Single Port, Tab-Up, Through Hole, R/A, Yellow/Green
Introduction:
This is a single port 8P8C unshielded RJ45 connector socket designed for stable through hole mounting on printed circuit boards. It is built with a black hi-temp thermoplastic housing that withstands high soldering temperatures without deformation. The integrated yellow and green LEDs allow for instant link status monitoring in various networking environments. Featuring phosphor bronze contacts with a gold flash over nickel finish, the unit ensures high conductivity and a 1.5A current rating. Its Tab-Up right angle configuration optimizes board space while providing 500MΩ insulation resistance across a range of -40°C to +70°C. Technicians utilize this reliable interface for telecommunication gear and data networking hardware.
Key Features
- Status Monitoring LEDs: Built-in yellow and green lights show connectivity.
- Tab-Up Configuration: Optimizes vertical space for compact board layouts.
- High-Temp Thermoplastic: Housing survives intense heat during industrial soldering.
- Gold Flash Contacts: Ensures excellent conductivity and lasting signal stability.
- 8P8C Modular Interface: Provides standard unshielded links for network systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-LG-Y-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

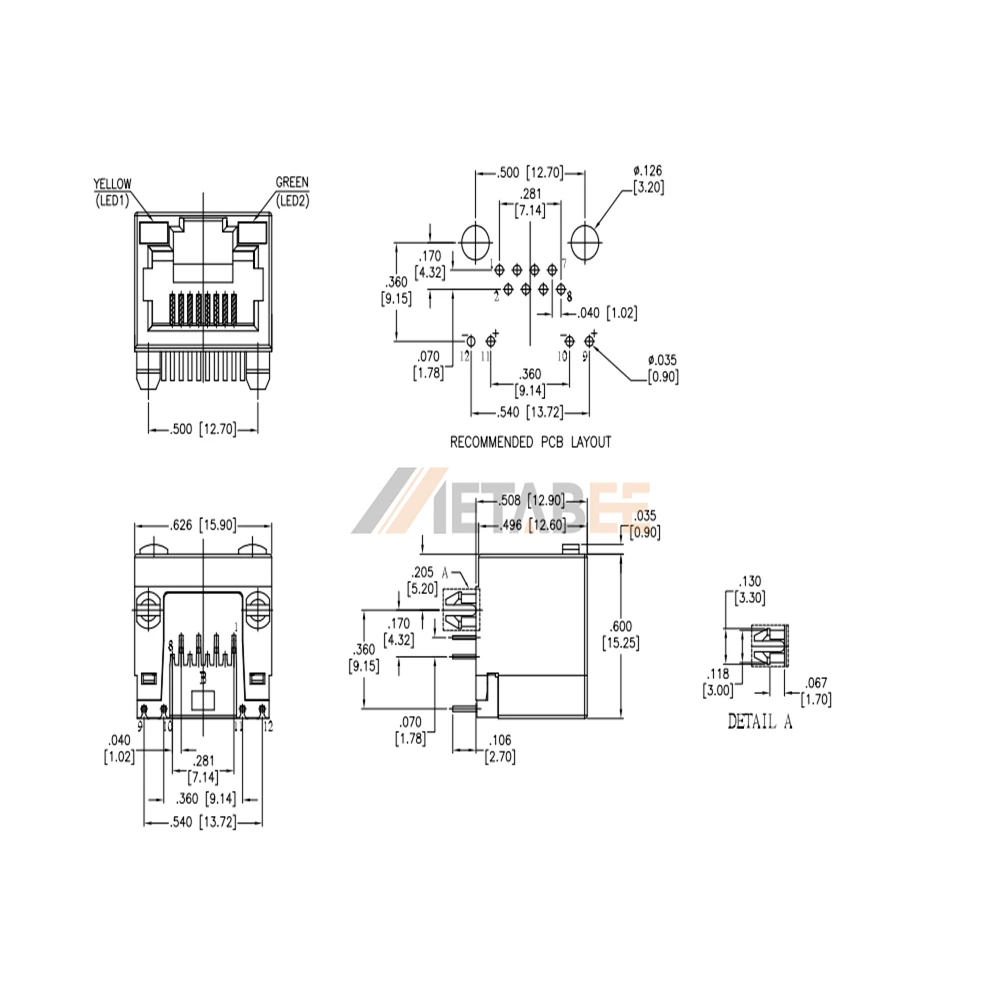

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
