Introduction:
Terminating flat solid cables becomes more efficient with this 8p8c unshielded modular rj45 plug. Its specialized 3-prong contacts are engineered to provide a secure physical and electrical connection by piercing the solid copper conductors effectively. The clear PC housing allows technicians to monitor wire alignment for 24-26AWG cables before the final crimping process. With a current rating of 1.5A and 150 VAC voltage support, this connector ensures stable performance in various data networking tasks. It maintains a low contact resistance of 20 mohms to facilitate optimal signal flow through the interface. Many installers prefer this unshielded design for standard residential and commercial projects where cost-effective termination is essential.
Key Features
- 3-Prong Contacts: Specifically designed for secure termination on solid cables.
- Flat Cable Support: Facilitates stable connection for flat-style networking wires.
- 24-26AWG Compatibility: Accommodates common wire gauges for various installation needs.
- PC Material Housing: Clear insulator allows for easy internal wire inspection.
- 1.5A Current Rating: Supports efficient power and data delivery for networks.
Main Specifications:
General Information:
| Product No.: | MTP-88-X-S | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | N/A | |
| Wire Type: | Solid | |
| Cable Type: | Flat | |
| Wire range: | 24-26 AWG | |
| OD of the Individual Cable Core: | 0.87∼0.99 mm | |

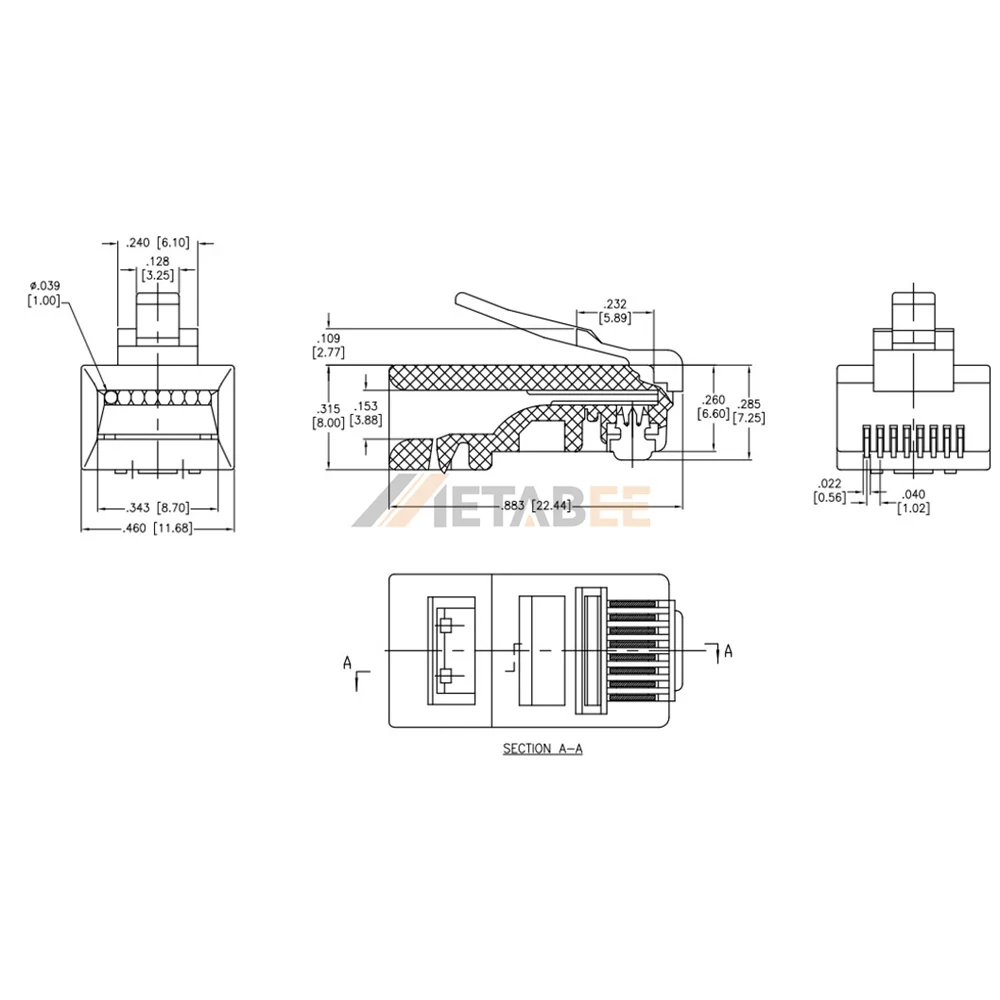

| Body Length: | 22.44 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 500 Mohms min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
