8P8C SMT RJ45 Connector, Modular Jack, 1 Port, Unshielded, Tab-Down, Right Angle
Introduction:
Designed for high-speed data transmission, this 8P8C SMT RJ45 connector offers a reliable solution for modern networking interfaces. It utilizes surface mount technology and a right-angle orientation to facilitate efficient automated assembly on printed circuit boards. The housing is constructed from hi-temp thermoplastic, ensuring the component survives the intense heat of reflow soldering processes. With a 1.5A current rating, this unshielded modular jack provides robust power and signal delivery for various electronic devices. It features a tab-down latch direction to optimize space in compact layouts while ensuring a secure cable connection. Phosphor bronze contacts with gold plating offer superior conductivity and excellent resistance to oxidation for long-term use.
Key Features
- Surface Mount Design: Enables efficient automated assembly for high-speed PCB layouts.
- Hi-Temp Thermoplastic: Housing withstands extreme heat during reflow soldering processes.
- 1.5A Current Rating: Provides robust power delivery for diverse networking applications.
- Gold Plated Contacts: Ensures superior electrical conductivity and oxidation resistance.
- Tab-Down Orientation: Bottom-latch configuration meets specific mechanical chassis requirements.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-RF-SMT-A | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plating | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

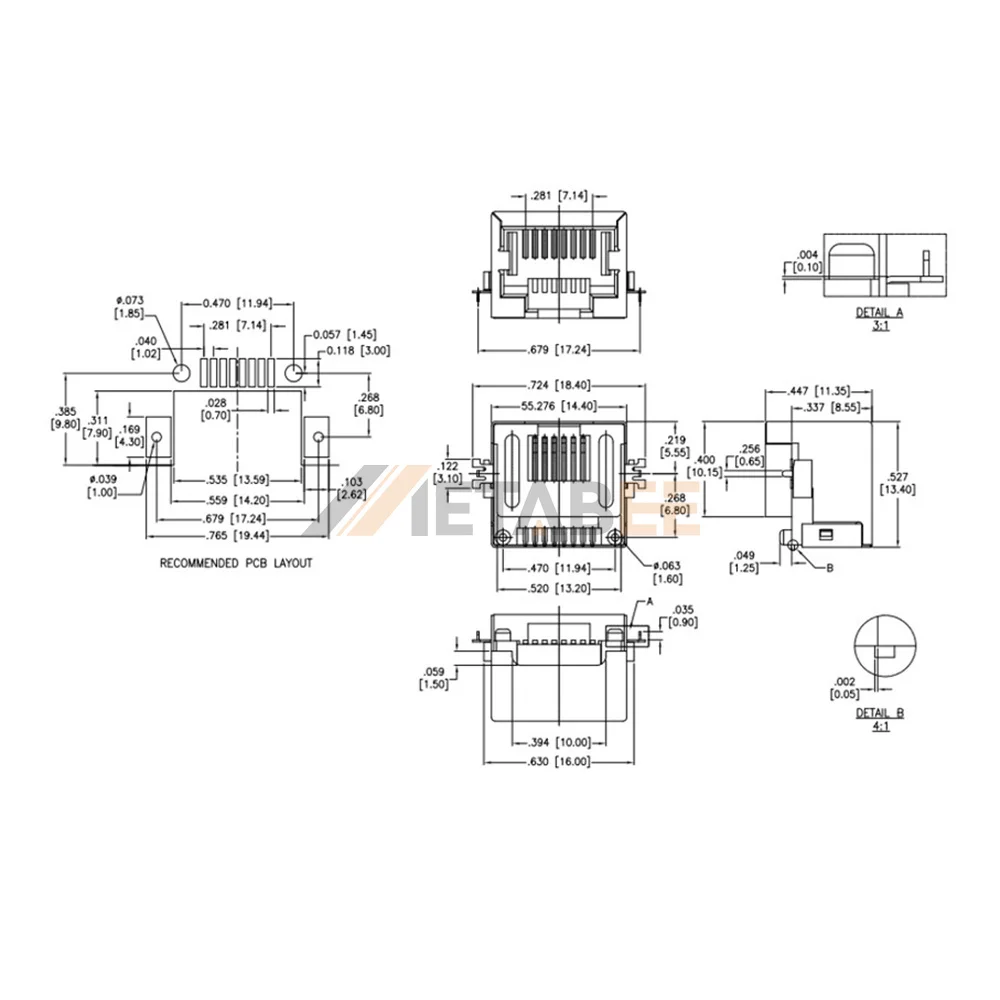

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
