8P8C RJ45 Socket PCB Modular Jack with LEDs, 1 Port, Unshielded, Tab-Up, R/A, Green/Yellow
Introduction:
This is a single port 8P8C RJ45 socket PCB modular jack designed for secure through hole mounting on networking circuit boards. It features a durable Gray hi-temp thermoplastic housing that maintains high thermal stability during industrial wave soldering while providing 500MΩ Min insulation resistance. Integrated Green and Yellow LEDs allow for immediate link monitoring across a standard temperature range of -40°C to +70°C. Utilizing a Tab-Up right angle configuration, this component effectively optimizes vertical space and supports a consistent 1.5A current rating. The Gold over Nickel plated Phosphor Bronze contacts ensure high conductivity for various unshielded data paths. Technicians utilize this reliable modular interface for standard telecommunication systems and data networking hardware.
Key Features
- Integrated Status LEDs: Provides instant visual diagnostics for network activity.
- Tab-Up Configuration: Optimizes vertical space for specialized PCB layouts.
- Gray Hi-Temp Housing: Robust thermoplastic survives intense industrial soldering heat.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- 8P8C Modular Interface: Supports standard network connectivity for unshielded systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX2-LH-HT-D | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 300mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Gray | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

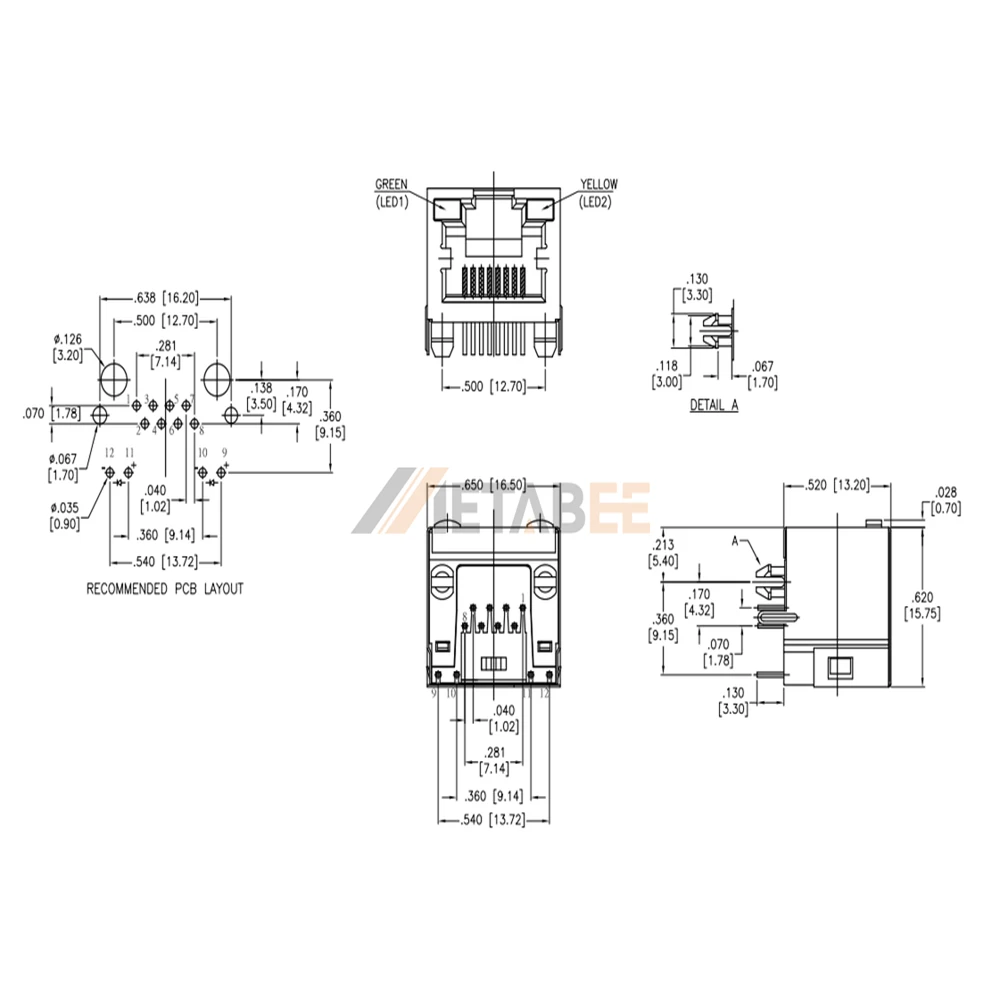

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
