Introduction:
This high-performance RJ45 shielded connector is engineered to provide robust data transmission for demanding network applications. It features a single-port 8P8C configuration integrated with a full metal shield to block electromagnetic interference effectively. Dual green LEDs are built into the front to offer immediate visual feedback on the link status. Constructed from hi-temp thermoplastic, the housing withstands the intense heat of industrial soldering without compromising structural integrity. Its phosphor bronze contacts are finished with gold plating to ensure superior conductivity and long-term resistance to corrosion. The right-angle through-hole design provides a secure mechanical bond, making it a reliable choice for server and telecommunication hardware.
Key Features
-
Full Shielding: Metal housing effectively blocks external electromagnetic interference.
-
Integrated Green LEDs: Dual indicators provide instant visual network status.
-
Gold Plated Contacts: Phosphor bronze terminals ensure superior electrical connectivity.
-
Hi-Temp Thermoplastic: Durable housing withstands intense industrial soldering temperatures.
-
Right Angle Orientation: Tab-up design optimizes compact circuit board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-BX-FS-LD-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | N/A | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC prak for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

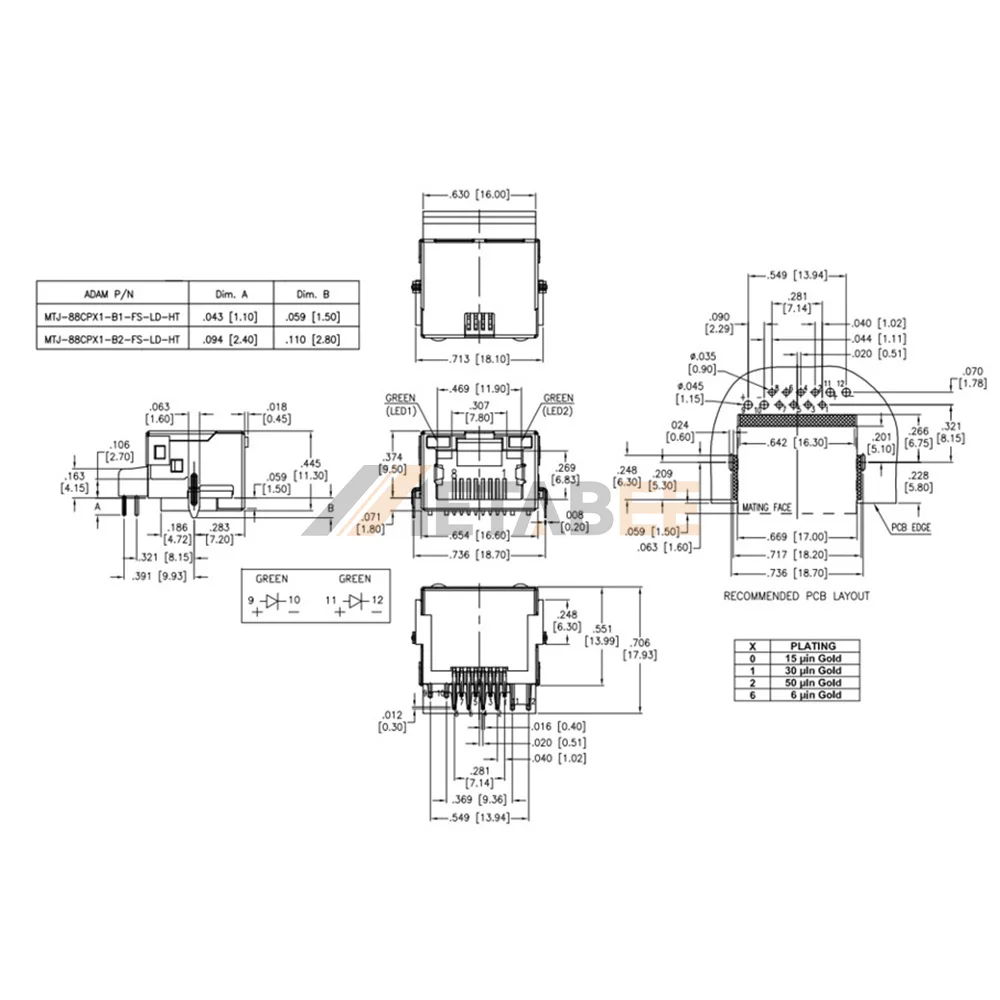

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
