Introduction:

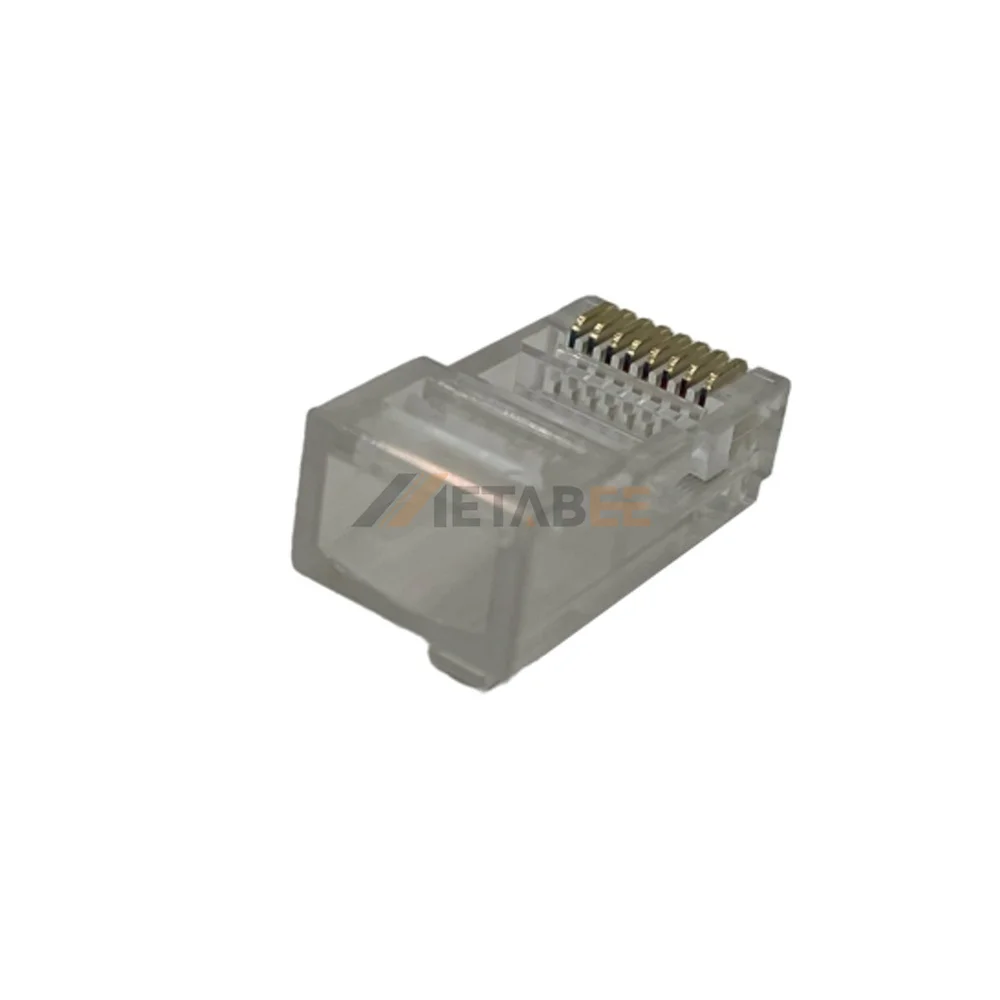

Terminating round stranded cables becomes straightforward with this 8P8C RJ45 plug. Its internal channels are specifically shaped to accept the cylindrical profile of round wires used in various patch cords. Because it holds a Cat3 rating, the connector provides reliable performance for voice-grade circuits and legacy networking environments. The unshielded design offers a lightweight and cost-effective solution for standard indoor UTP installations. Clear Polycarbonate housing allows installers to observe pin contact and wire alignment before the final crimping step. Many technical professionals utilize this modular component for stable 8-pin connectivity in telecommunication systems.
Key Features
-
8P8C RJ45 Interface: Provides standard connectivity for network and voice systems.
-
Round Stranded Support: Designed specifically for secure termination on round cables.
-
Unshielded UTP Design: Offers a cost-effective solution for non-interference environments.
-
Cat3 Performance Level: Delivers consistent transmission for voice-grade applications.
-
Clear Polycarbonate Shell: Facilitates quick visual inspection of internal wire alignment.
Main Specifications:
General Information:
| Product No.: | MTPR-88 | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Shielded | |
| Performance Category: | Cat3 | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |
| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -65℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
