Introduction:

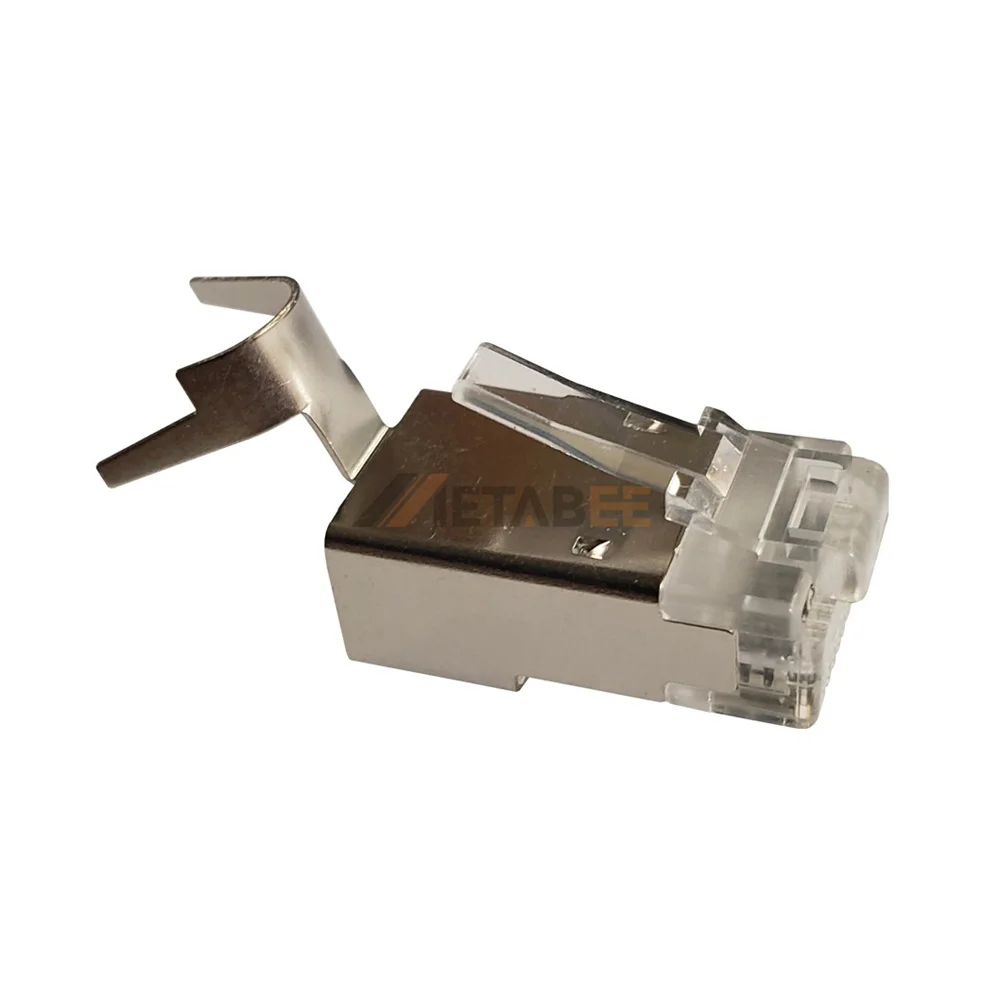

Supporting ultra-fast data speeds, this Cat8 RJ45 plug offers advanced connectivity for 40Gbps network infrastructures. It is specifically built to accommodate 21-23AWG flat solid cables using a robust 8P8C configuration. The shielded copper alloy shell effectively prevents electromagnetic interference to maintain high signal integrity. Featuring a built-in strain relief, the plug protects the termination point from mechanical stress and cable tension. The clear PC housing allows technicians to verify wire alignment easily before the crimping stage. With its gold-over-nickel contact finish, the connector guarantees excellent conductivity across a broad operating temperature range from -25°C to +55°C.
Key Features
-
Cat8 Performance: Supports ultra-fast data transmission for 40Gbps networks.
-
Shielded Construction: Blocks external interference for maximum signal integrity.
-
21-23AWG Compatibility: Designed for thick flat solid copper wire gauges.
-
Integrated Strain Relief: Protects cable terminations from excessive mechanical stress.
-
Gold-Over-Nickel Plating: Delivers superior conductivity and lasting oxidation resistance.
Main Specifications:
General Information:
| Product No.: | MTP-88-X-S-C8-A | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Shielded | |
| Performance Category: | Cat8 | |
| Wire Type: | Solid | |
| Cable Type: | Flat | |
| Wire range: | 21-23 AWG | |
| OD of the Individual Cable Core: | 1.35∼1.45 mm | |
| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
