Introduction:
Supporting ultra-high-speed networking, this 8p8c 90 degree RJ45 connector is designed for advanced 40G Base-T applications. It meets Cat8 standards to ensure exceptional data transmission for modern data centers and high-bandwidth systems. The integrated magnetics filter out noise to maintain superior signal integrity during operation. To minimize electromagnetic interference, it features a full shield equipped with EMI fingers for reliable chassis contact. Its right-angle design and through-hole mounting provide high mechanical stability on the printed circuit board. Built with hi-temp thermoplastic and gold-plated contacts, this single-port modular jack ensures long-term durability. Dual green LEDs allow users to monitor link status easily in complex environments.
Key Features
- 40G Base-T Performance: Supports ultra-fast data transfer rates up to 40 Gbps.
- Cat8 Compliance: Meets the highest frequency standards for high-bandwidth networks.
- Integrated Magnetics: Built-in filtering enhances signal integrity for stable transmission.
- EMI Shielding: Full shield with fingers blocks external electromagnetic interference.
- Right Angle Mounting: Through hole design offers secure mechanical PCB retention.
Main Specifications:
General Information:
| Product No.: | MTJ-88NX1-FS-PG-VLD-M245BC-HT-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 40G Base-T | |
| Performance Category: | CAT8 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

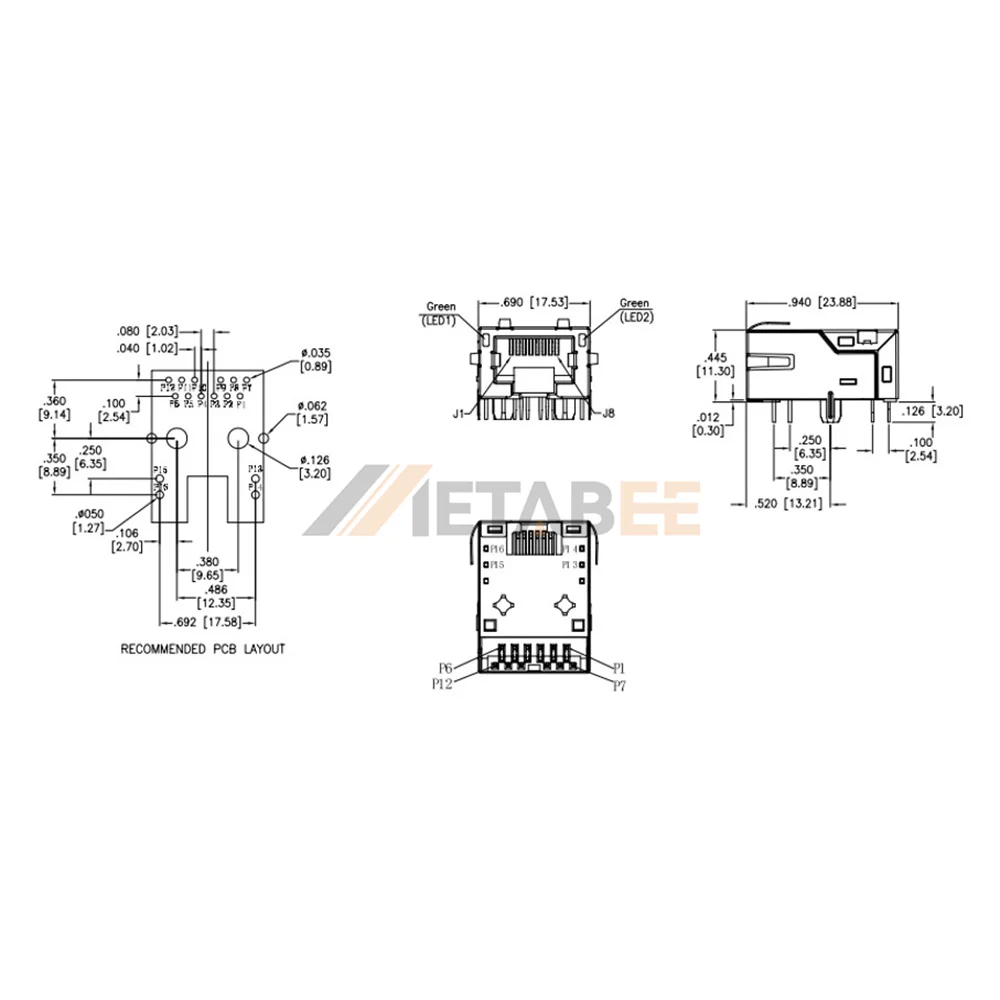

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
