8 Pin Shielded RJ45 Female Connector, 8P8C, 1 Port, Tab-Up, Through Hole, R/A, Yellow/Green
Introduction:
This is an 8 pin shielded RJ45 female connector designed for secure through hole mounting on networking circuit boards. It features a full brass shield with nickel plating that provides a robust barrier against electromagnetic interference for clear data transmission. The high-temperature Nylon 46 housing is specifically built to withstand intense thermal stress during industrial wave soldering without warping. Utilizing a Tab-Up configuration and integrated yellow-green LEDs, this single port component optimizes PCB space while providing immediate link status diagnostics. The Gold over Nickel contacts maintain high conductivity and a 1.5A current rating across a range of -40°C to +85°C. Technicians utilize this modular interface for industrial automation gear and telecommunication hardware requiring durable shielded connectivity.
Key Features
- Full EMI Shielding: Metallic brass shell blocks signal interference effectively.
- Integrated Link LEDs: Features yellow and green lights for status monitoring.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Hi-Temp Nylon Housing: Survives intense heat during industrial wave soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-PG2T-LG-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute (C-C), 1500 VAC for 1 minute (C-S) |
Materials and Plating:
| Housing Material: | (Nylon46)Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

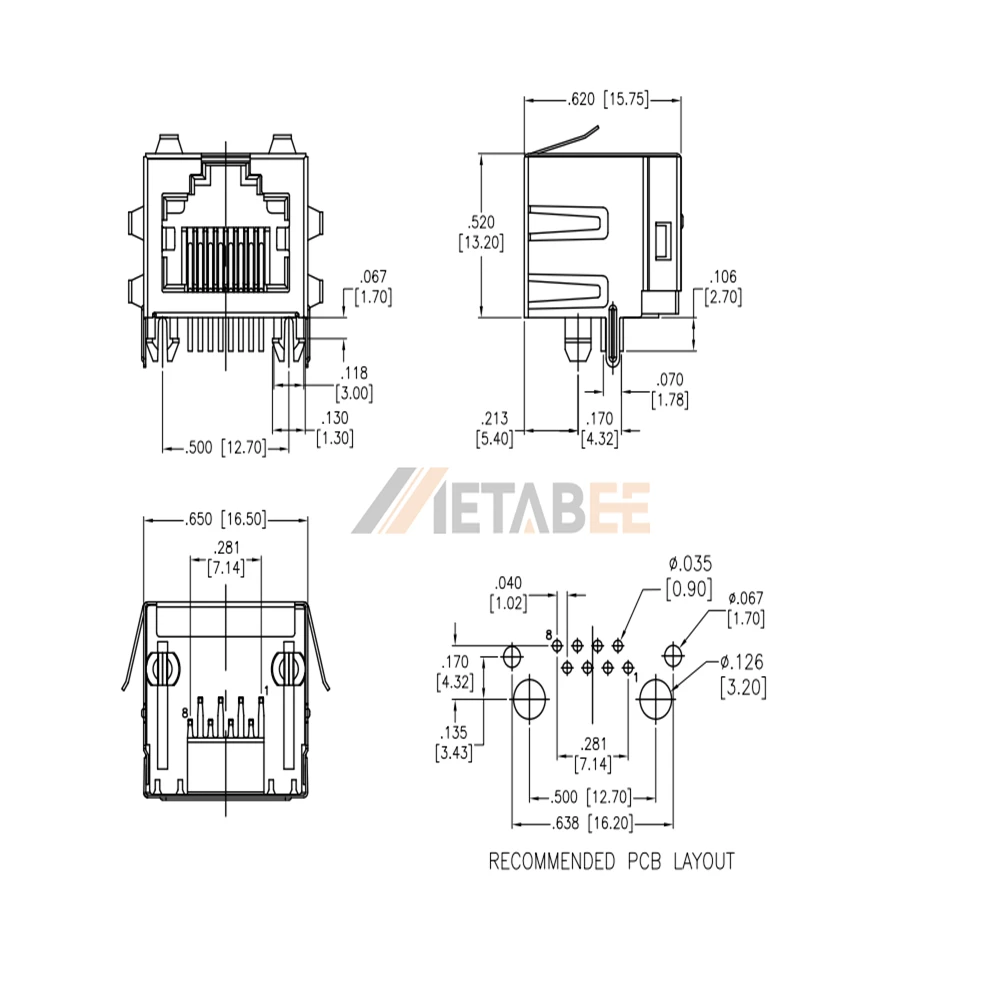

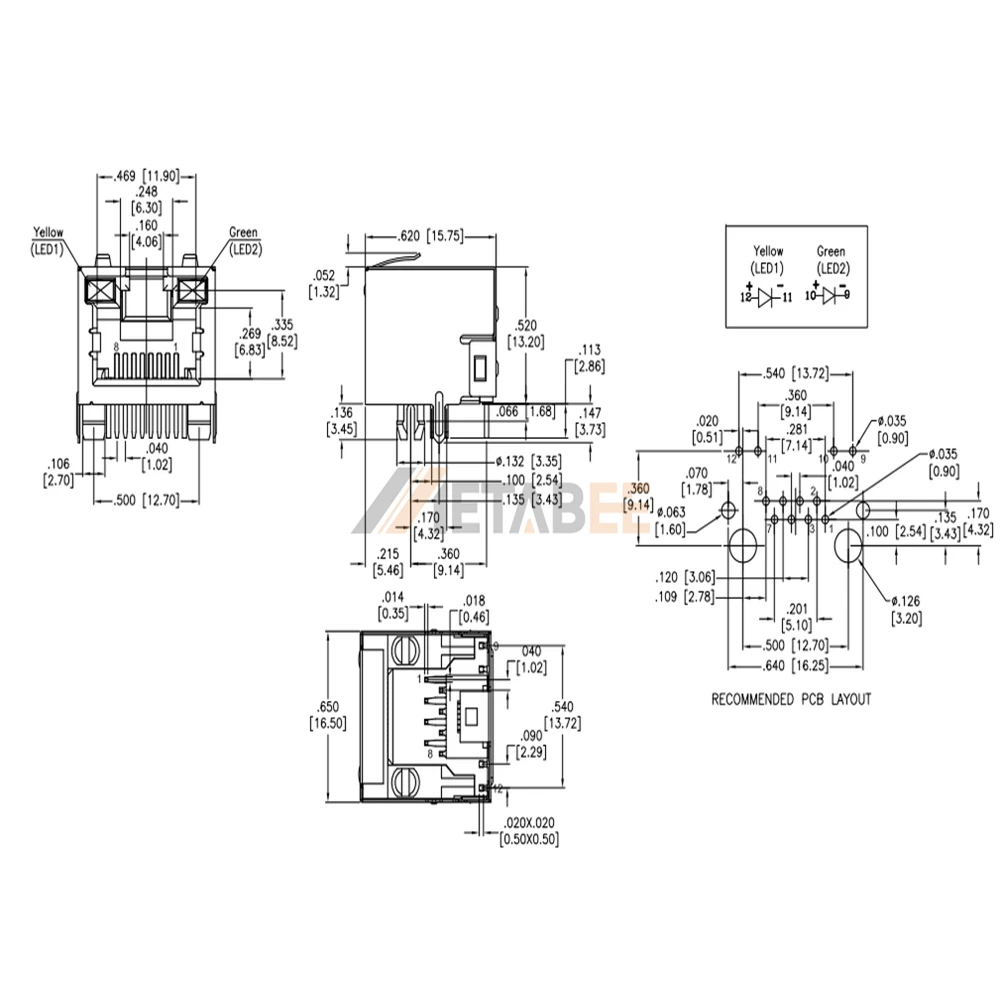

Structure of Modular Jack
