8 Pin Modular Jack PCB Connector, Single Port, 8P8C, Shielded, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port 8 pin modular jack PCB connector designed for stable through hole mounting on high-speed networking boards. It features a full brass shield with nickel plating to provide a robust barrier against electromagnetic interference for clear signal integrity. The durable PBT housing supports a high insulation resistance of 1000MΩ across an industrial temperature range of -40°C to +85°C. Premium Gold over Nickel plated Phosphor Bronze contacts ensure superior conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up right angle configuration, this component optimizes board layouts by saving vertical space while maintaining electrical safety up to 1500 VDC. Technicians utilize this shielded interface for reliable telecommunication systems and data networking hardware in high-interference environments.
Key Features
- Full EMI Shielding: Nickel plated brass shell blocks external signal interference.
- 8P8C Interface: Provides standard 8 pin modular connectivity for networks.
- Tab-Up Design: Optimizes vertical space for specialized PCB layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Industrial Temperature: Performs reliably between -40°C and +85°C environments.
Main Specifications:
General Information:
| Product No.: | MTJ-882BX1-FS | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

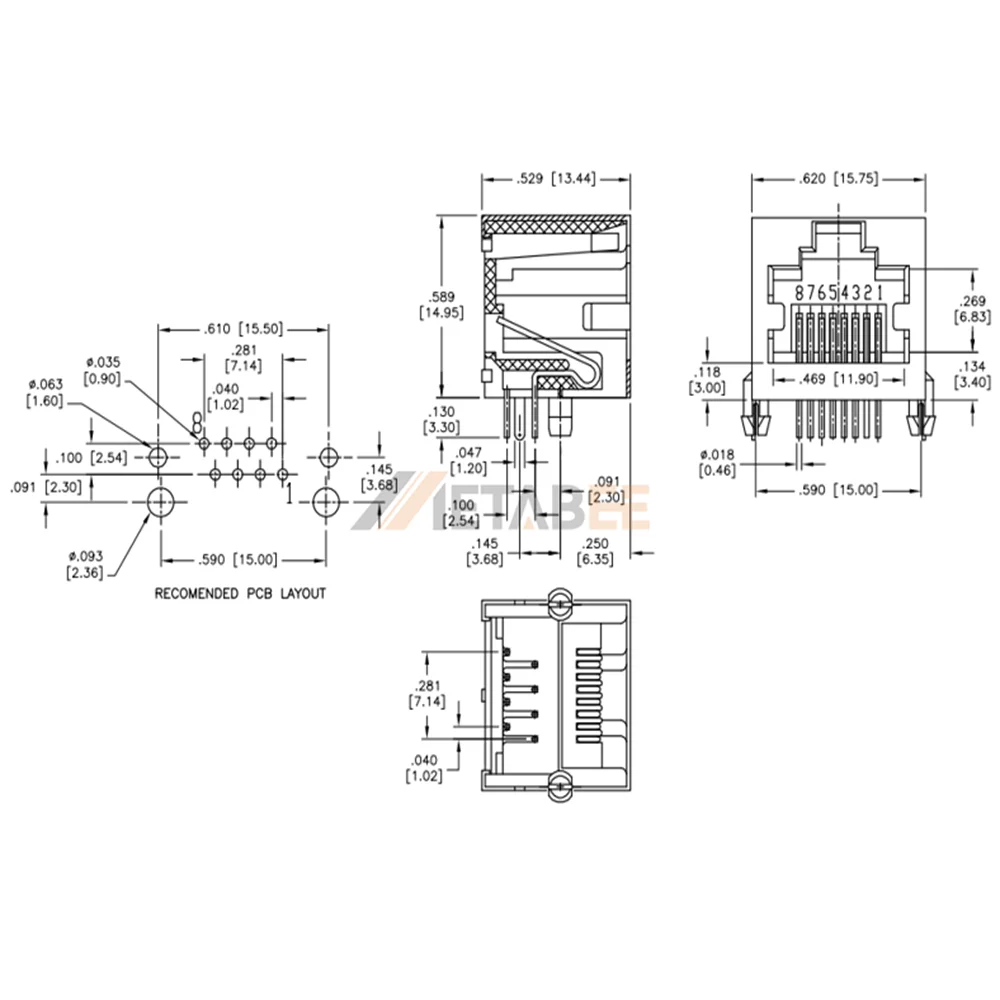

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
