Introduction:
This usb-a charger with pogo pin interface is a 6-pin dual-row cable assembly designed for high-density power and signal transmission. It features a square connector head with a straight orientation on a standard 2.54mm pitch. The 1.8-meter flat cable supports a 3A current rating at 12V DC while maintaining a low contact resistance of 50 mohms. With 70g of spring force and a 1.0mm working stroke, it ensures stable electrical contact throughout 20,000 mechanical cycles. This assembly facilitates secure charging and data links for modular electronics and industrial handheld devices requiring a reliable pogo interface.
Key Features
- High Density: Dual row 6-pin design on standard 2.54mm pitch.
- Rated Power: Supports 3A current rating and 12V DC power delivery.
- Extra Length: 1.8-meter flat cable allows for flexible device routing.
- Mechanical Life: Tested for 20,000 cycles ensuring long-term durability.
- Secure Fit: Straight square head ensures stable board-to-cable alignment.

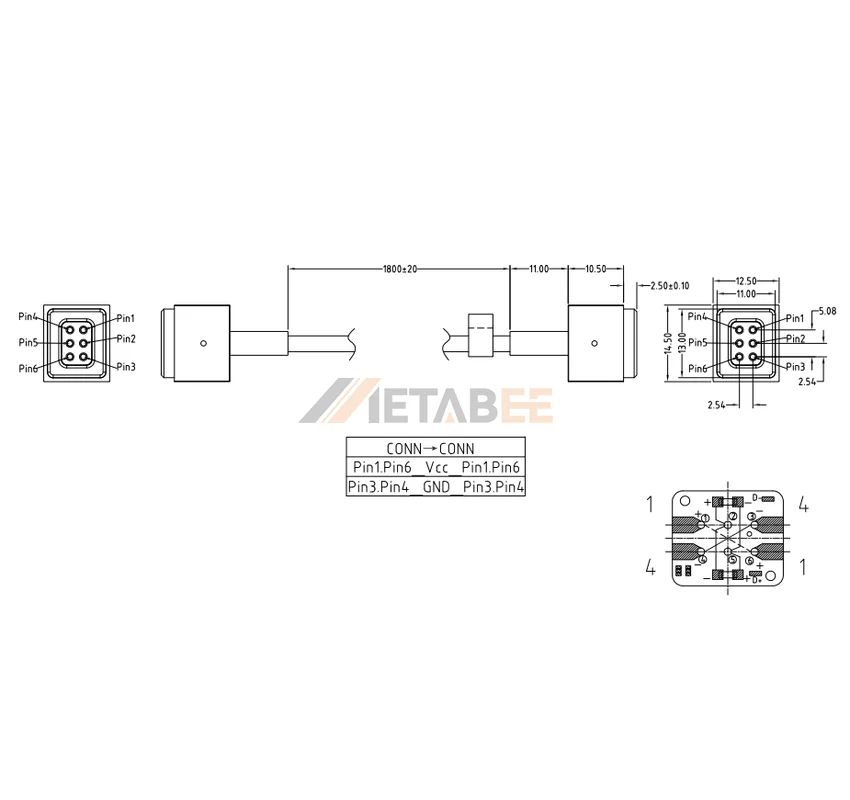

Main Specifications:
General Information:
| Product No.: | CA-ST6-PH2-254105-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 6 | |
| Connector 2-Shape: | Square | |
| Connector 2-Orientation: | Straight | |
| Contact Material: | N/A | |
| Contact Plating: | N/A | |
| Cable Type: | Flat Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1800±20 mm | |
| Jacket Material & Color: | N/A |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max | |
| Insulation Resistance: | N/A | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 70±20gf | |
| Working Stroke: | 1mm | |
| Full Stroke: | N/A | |
| Durability: | 20,000 Cycles |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
