Introduction:
This is a male 5 pin magnetic connector designed for stable spring-loaded docking in modern electronic hardware. It features a rectangular HTN insulator that withstands industrial assembly temperatures while maintaining high structural integrity. The SUS 304 spring-loaded pins provide a 1.1mm working stroke to ensure consistent electrical contact even under movement or vibration. With a premium 10u” Gold plating over Nickel finish, the contacts offer superior corrosion resistance and support a steady 1.5A current rating at 12V DC. Technicians utilize this straight mounting component for fast-charging wearables and portable data devices requiring a reliable 20,000 cycle lifetime.
Key Features
- Magnetic Self-Mating: Enables effortless automatic alignment for convenient device charging.
- 20,000 Cycle Lifetime: Guarantees long-term durability for frequent docking applications.
- 10u” Gold Plating: Provides excellent conductivity and lasting signal stability.
- SUS 304 Spring: Maintains consistent pressure for stable electrical connectivity.
- Compact 1.8mm Pitch: Optimizes high-density connectivity on small networking boards.
Main Specifications:
General Information:
| Product No.: | PH1-C2535-05-FHP-52 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 1.8mm | |
| Working Stroke (mm): | 1.1mm@80±20gf | |
| Life Test: | 20,000 Cycles min @ 0.4mm Stroke |
Electrical:
| Rated Current: | 1.5A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 40 mohms max |
Materials and Plating:
| Insulator Material: | HTN | |
| Insulator Color: | N/A | |
| Contact Material: | N/A | |
| contact plating: | 10u” Gold plated over Nickel | |
| Spring Material: | SUS 304 | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

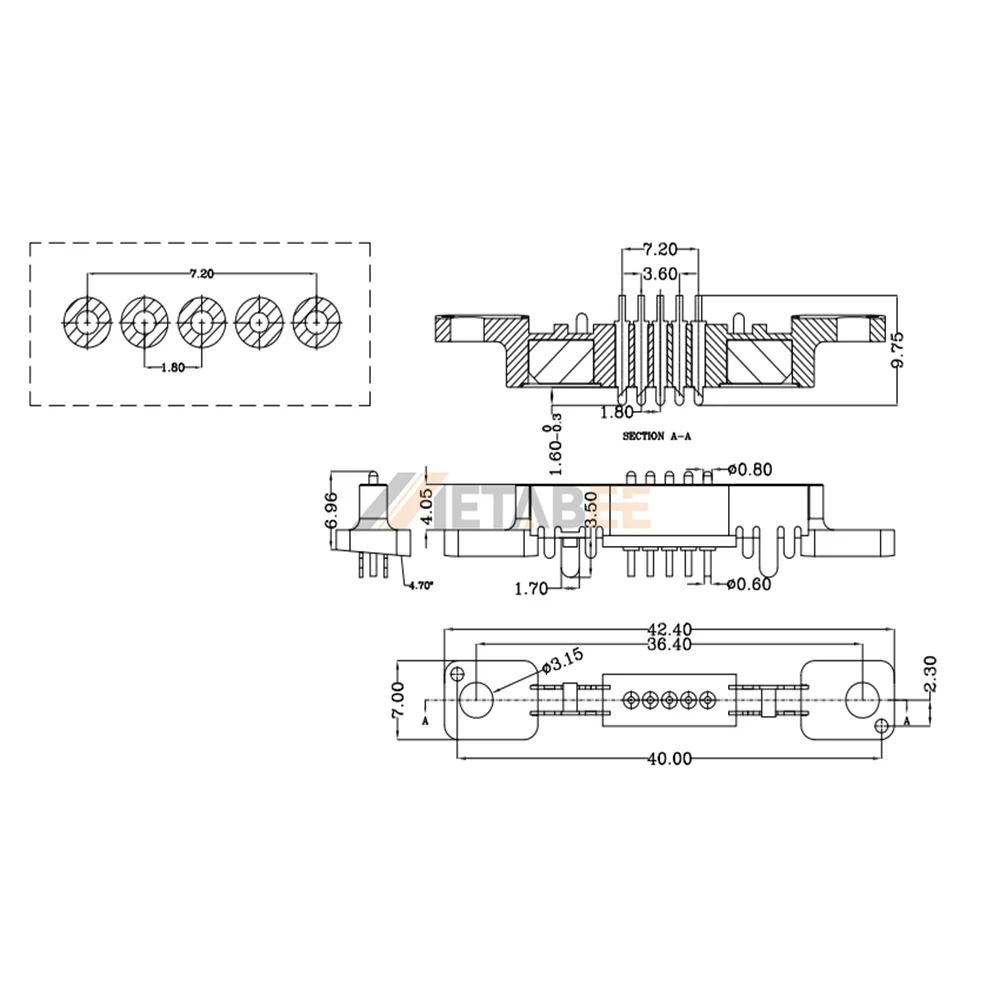

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
