Introduction:

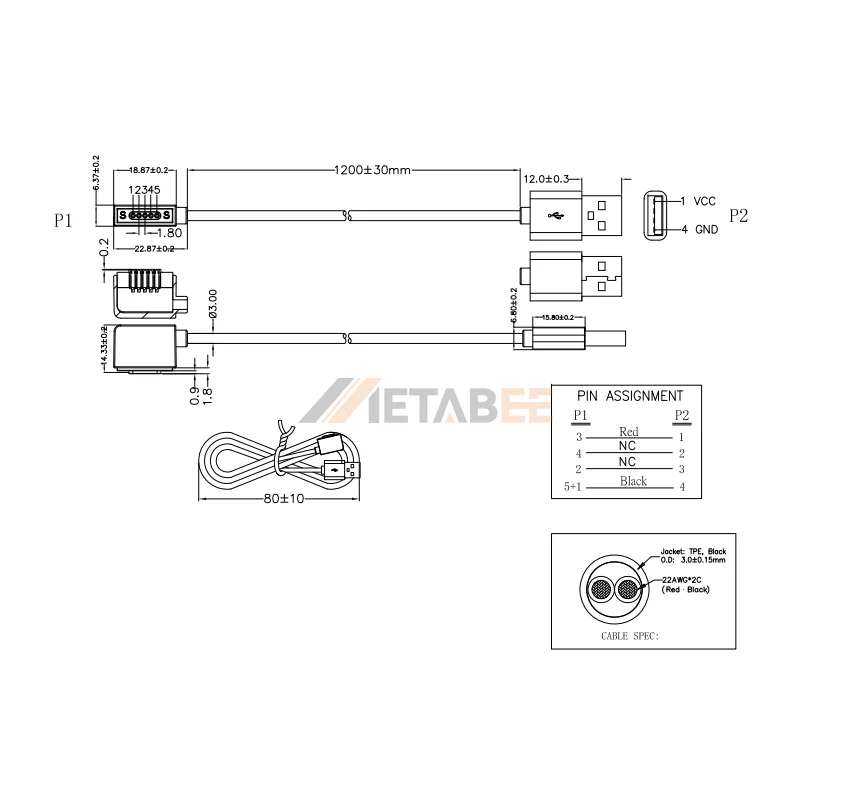

This magnetic usb charge cable features a 5-pin male pogo interface with a rounded rectangular shape for secure self-alignment. It utilizes 20u” Gold plating to achieve an ultra-low contact resistance of 2 mohms, ensuring highly efficient power transmission. The 1200mm 22AWG TPE cable supports a 2A maximum current rating at 5V DC for stable charging. With a 1.8mm pitch and right angle orientation, it provides a compact solution for space-constrained device housings. A tested 10,000-cycle life ensures mechanical reliability for daily use. This assembly serves as a robust power link for portable electronics and specialized industrial modules.
Key Features
- Magnetic Alignment: Rounded rectangular magnetic head ensures automatic self-alignment.
- Efficient Charging: Supports 2A current delivery via 22AWG thick wire.
- Thick Plating: 20u” Gold contacts prevent oxidation for lasting use.
- Ultra-Low Resistance: Maintains 2 mohms resistance for stable power transfer.
- Flexible Length: Durable 1200mm TPE cable offers convenient reaching distance.
Main Specifications:
General Information:
| Product No.: | CA-RA5-PH1-181279-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 4 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | 20u” Gold plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 22AWG | |
| Cable Length: | 1200±30 mm | |
| Jacket Material & Color: | TPE, Black |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 2 mohms max | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 60gf max | |
| Working Stroke: | 0.8mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
