Introduction:
This is a rectangular male 5pin magnetic connector designed for stable straight through hole mounting on printed circuit boards. It features a high-temperature LCP insulator that withstands up to 265°C, ensuring durability during standard industrial soldering processes. The internal SUS 304 springs provide a consistent 1.0mm working stroke to maintain reliable electrical contact across a lifetime of 50,000 cycles. With Brass contacts finished in 3u” Gold plating, the unit supports a high current rating of 3A at 12V DC. Technicians utilize this self-mating interface for fast-charging handheld devices and modular electronics requiring quick, automatic alignment.
Key Features
- 3A Current Support: Delivers high-performance power for fast-charging applications.
- 50,000 Cycle Lifetime: Ensures exceptional durability for frequent docking use.
- Magnetic Auto-Alignment: Facilitates effortless and secure self-mating connections.
- LCP Insulator Housing: Withstands intense heat during industrial soldering processes.
- 2.5mm Pitch Design: Provides a standard five-pin layout for hardware.
Main Specifications:
General Information:
| Product No.: | PH1-C25381-05-MVP-464575 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.5mm | |
| Working Stroke (mm): | 1.0mm@100±20gf | |
| Life Test: | 50,000 cycles min |
Electrical:
| Rated Current: | 3A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | LCP 265°max | |
| Insulator Color: | N/A | |
| Contact Material: | N/A | |
| contact plating: | 3u” Gold plated over Nickel | |
| Spring Material: | SUS 304 | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

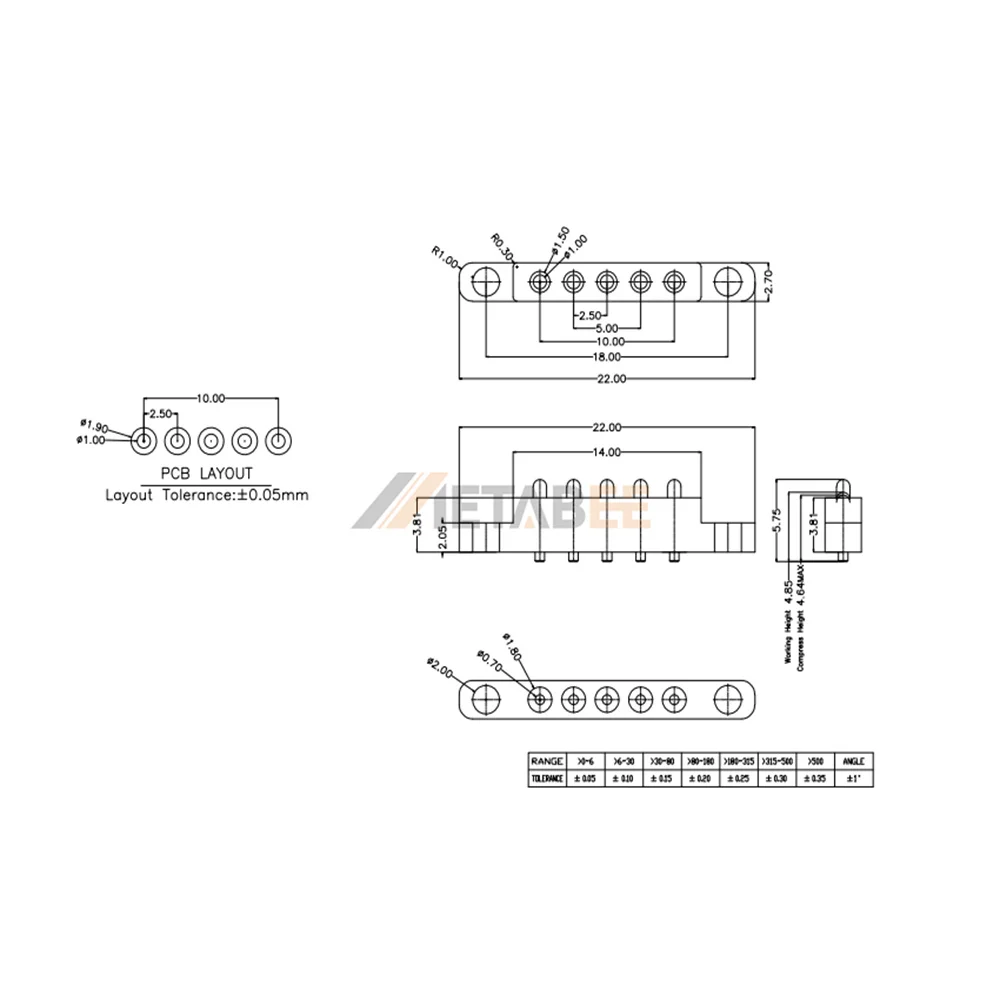

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
