Introduction:
This 5 pin magnetic pogo connector is a single row female terminal designed for robust electrical docking interfaces. It features a standard 2.54mm pitch within a rounded rectangular housing made of UL 94V-0 rated HTN material for high thermal stability. The assembly utilizes high-strength N52 NdFeB magnets to enable automatic self-alignment, ensuring effortless and secure connectivity. Supporting a 3A current rating at 12V DC, its 5u” gold-plated contacts maintain stable conductivity with a maximum resistance of 50 mohms. This component acts as a reliable quick-release interface for power or signal links in modular electronics and handheld devices.
Key Features
- Magnetic Alignment: N52 magnets enable automatic self-aligning secure docking.
- Rated Power: Supports 3A current and 12V DC power delivery.
- Standard Pitch: 2.54mm pitch 5-pin layout facilitates easy integration.
- Durable Plating: 5u” Gold plated contacts prevent oxidation and corrosion.
- Flame Retardant: HTN UL 94V-0 housing ensures superior safety performance.
Main Specifications:
General Information:
| Product No.: | PH1-3E-05-FVMP-6085 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 3A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | HTN, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated | |
| Spring Material: | N/A | |
| Magnet: | N52 NdFeB, Ni-Cu-Ni plated |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |

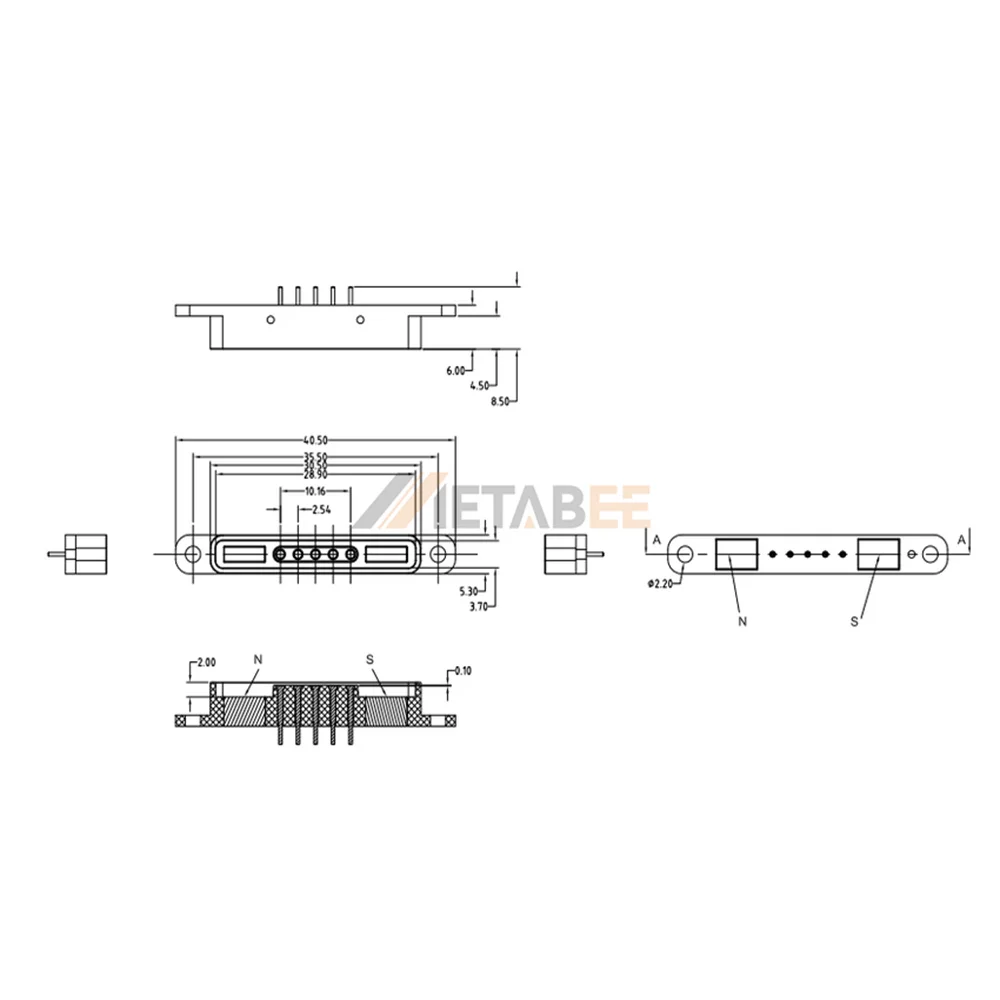

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
