Introduction:
This pogo pin charging cable is a white 4-pin power solution featuring a magnetic connector and a USB Type-A interface. The right angle design and rounded rectangular shape allow for low-profile connections in compact device housings. It utilizes 26AWG and 30AWG wires to handle a 1A current rating at 5V DC. With a tested lifespan of 10,000 cycles and a 0.6mm working stroke, it ensures long-term mechanical reliability. This assembly acts as a convenient charging interface for smart wearables and specialized medical devices. The magnetic attraction mechanism facilitates effortless self-alignment for a secure connection every time.
Key Features
- Magnetic Alignment: Magnetic head enables easy automatic self-aligning connection.
- 4 Pin Design: 4 pin contact supports stable 1A current delivery.
- Space Saving: Right angle orientation optimizes space in compact devices.
- Durable Life: Reliable 10,000 cycle life ensures dependable daily charging.
- Flexible Reach: White 1 meter cable offers convenient connection distance.

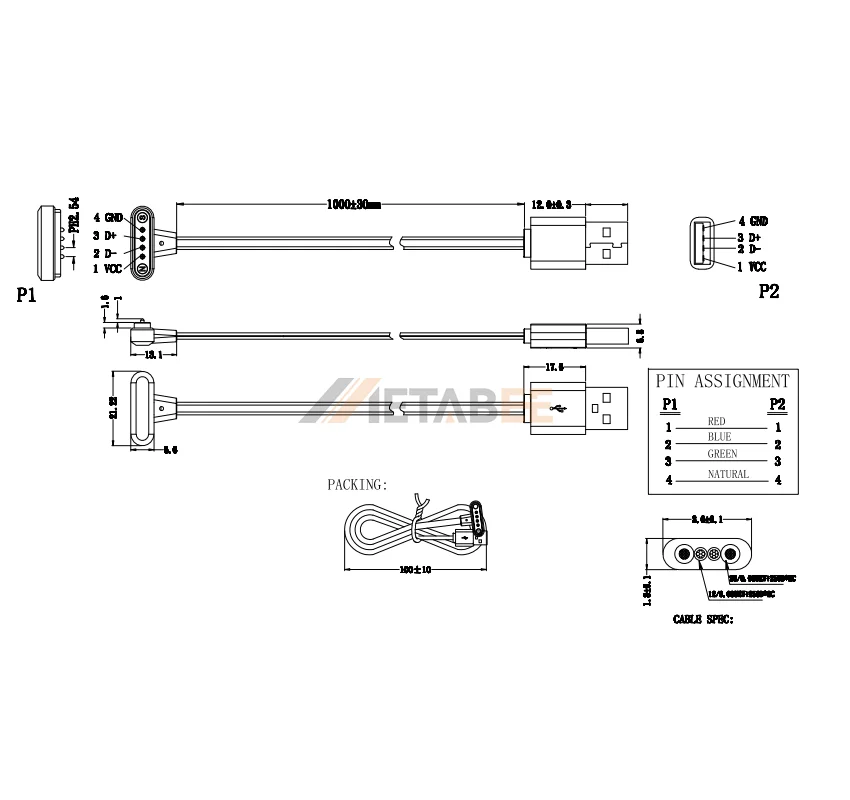

Main Specifications:
General Information:
| Product No.: | CA-RA4-PH1-365-M1-WT | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 4 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | N/A | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 26AWG+30AWG | |
| Cable Length: | 1000±30 mm | |
| Jacket Material & Color: | N/A |
Electrical:
| Rated Current: | 1A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 2 Ω max | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 60gf max | |
| Working Stroke: | 0.6mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
