Introduction:
This magnetic pogo pin charging connector is a high-precision 4P female terminal designed for efficient power delivery in compact systems. It features a precision 1.80mm pitch layout within a rounded rectangular PA46 housing to optimize circuit density. The assembly integrates a powerful N52 magnet to facilitate automatic self-alignment, ensuring a secure connection during the docking cycle. Supporting a 2A current at 12V DC, the gold-plated brass contacts maintain stable electrical conductivity with a maximum resistance of 50 mohms. This component serves as a reliable charging interface for smart wearables and modular electronics operating between -40°C and +85°C.
Key Features
- Magnetic Alignment: N52 magnet enables easy automatic self-aligning docking.
- Compact Pitch: Precision 1.80mm pitch facilitates high-density modular board integration.
- Rated Power: Supports 2A current and 12V DC for stable charging.
- Durable Plating: 5u” Gold plated contacts prevent oxidation and maintain conductivity.
- Wide Temperature: Functions reliably across extreme -40°C to +85°C environments.
Main Specifications:
General Information:
| Product No.: | PH1-C1846-04-FVP-66 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 4 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 1.8mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 2A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max |
Materials and Plating:
| Insulator Material: | PA46 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N52 NdFeB, Ni-Cu-Ni plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

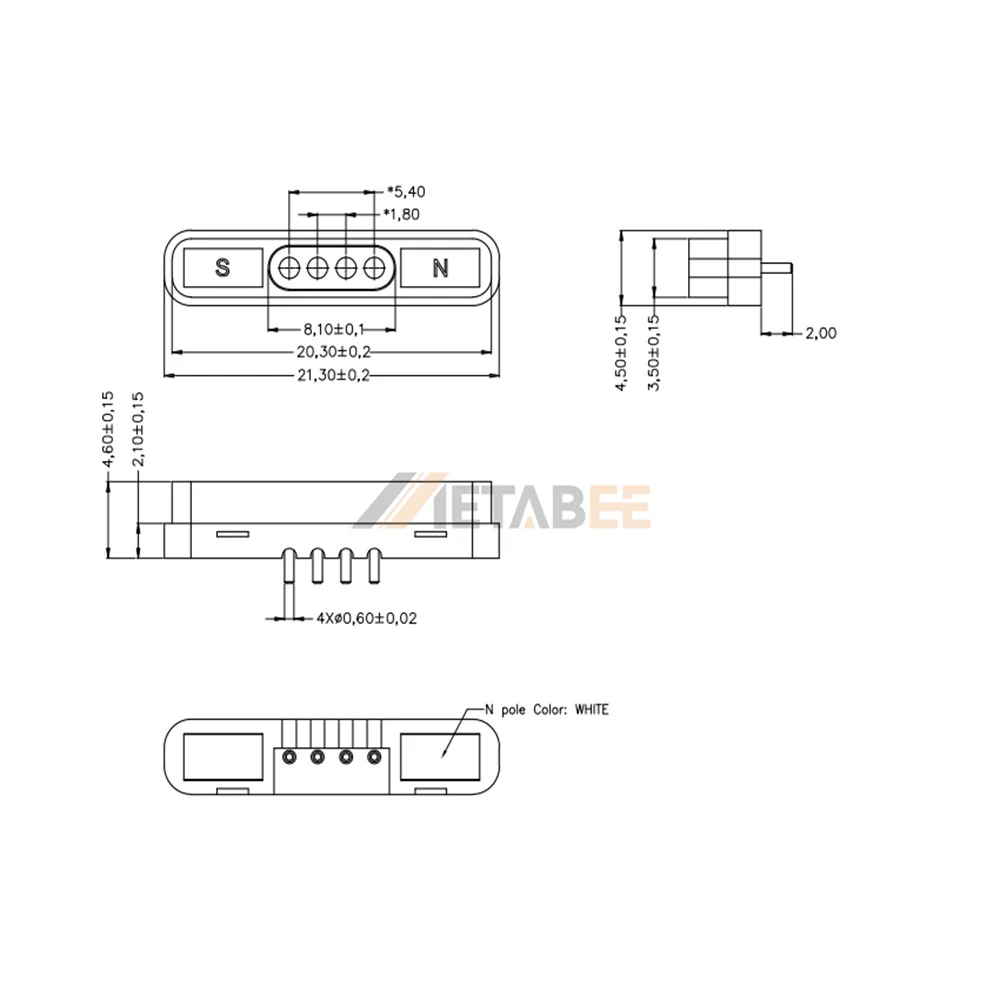

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
