Introduction:
This spring loaded magnetic pogo pin connector is a 4-pin male terminal designed for automated docking and power interfaces. It features a standard 2.54mm pitch layout within a rounded rectangular housing for seamless device integration. The assembly supports a 1A current rating and 12V DC, utilizing brass contacts with 5u” gold plating to maintain a maximum resistance of 30 mohms. With a 0.8mm working stroke and 100g force, it ensures stable electrical connectivity throughout 10,000 mechanical cycles. This component serves as a reliable charging or signal link for wearables and modular handheld devices across temperatures from -30°C to +85°C.
Key Features
- Magnetic Alignment: Self-aligning magnetic head ensures effortless and secure docking.
- Standard Pitch: 2.54mm pitch 4-pin layout facilitates precise integration.
- Stable Power: Supports 1A current and 12V DC power delivery.
- Durable Plating: 5u” gold finish prevents oxidation over 10,000 cycles.
- Space Saving: Straight rounded rectangular head optimizes compact device layouts.
Main Specifications:
General Information:
| Product No.: | PH1-C365-04-FVRP-605685 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 4 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | 0.8mm@100gf max | |
| Life Test: | 10,000 Cycles min |
Electrical:
| Rated Current: | 1A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

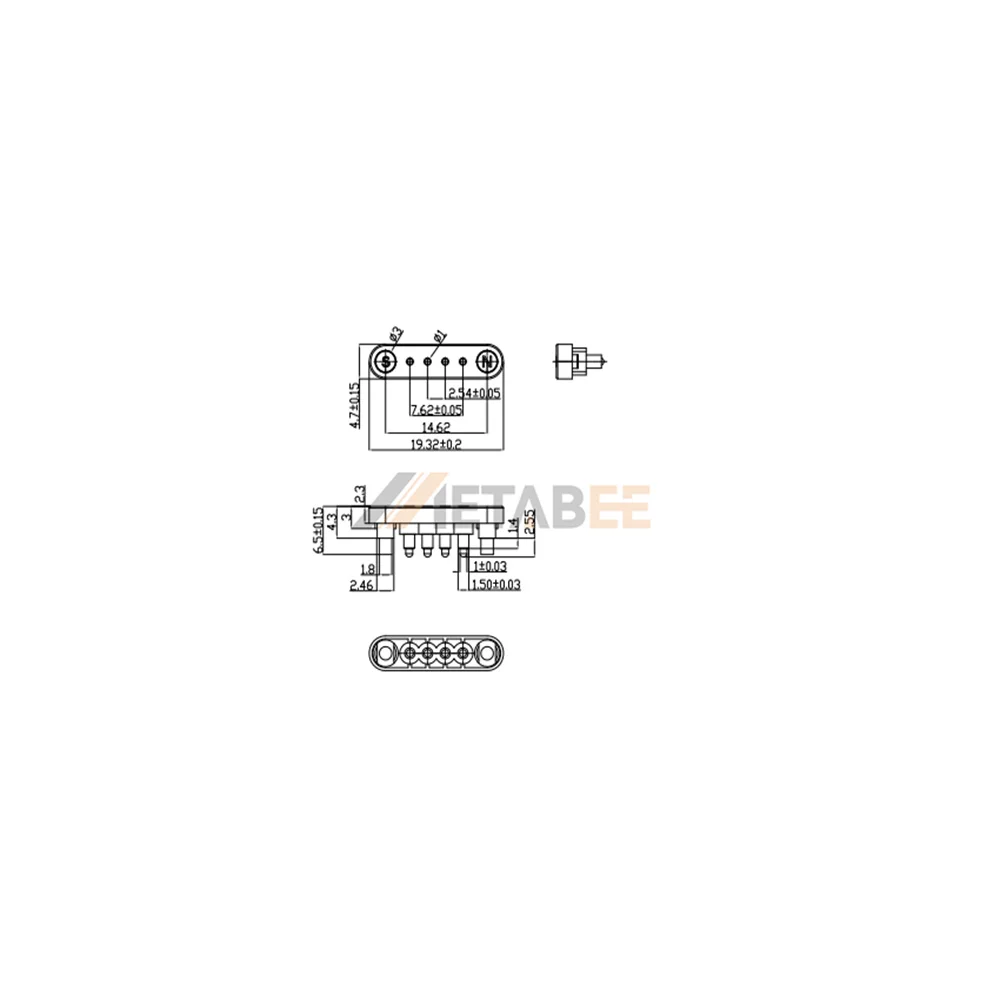

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
