Introduction:
This 3 pin magnetic connector is a right angle female pogo pin terminal designed for specialized docking and charging interfaces. It features a rounded rectangular housing on a standard 2.54mm pitch to ensure precise mechanical alignment during the mating cycle. The brass contacts are finished with a thick 10u” gold plating to support a 2A current rating at 5V while maintaining stable conductivity. Built with a white PA insulator, it operates reliably across temperatures from -30°C to +85°C. This component acts as a secure power or signal link for smart wearables and modular electronics requiring a space-saving, quick-release magnetic connection.
Key Features
- Magnetic Alignment: Self-aligning magnetic head ensures secure effortless docking.
- Standard Pitch: 2.54mm pitch 3-pin layout for easy integration.
- Efficient Power: Supports 2A current and 5V for charging.
- Thick Plating: 10u” gold-plated contacts prevent oxidation and corrosion.
- Space Saving: Right angle design optimizes space in compact housings.
Main Specifications:
General Information:
| Product No.: | PH1-3E-03-FHMP-56765 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 3 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 2.54mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 2A | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | N/A |
Materials and Plating:
| Insulator Material: | PA | |
| Insulator Color: | White | |
| Contact Material: | Brass | |
| contact plating: | 10u” Gold over 50~80u” Nickel plated | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

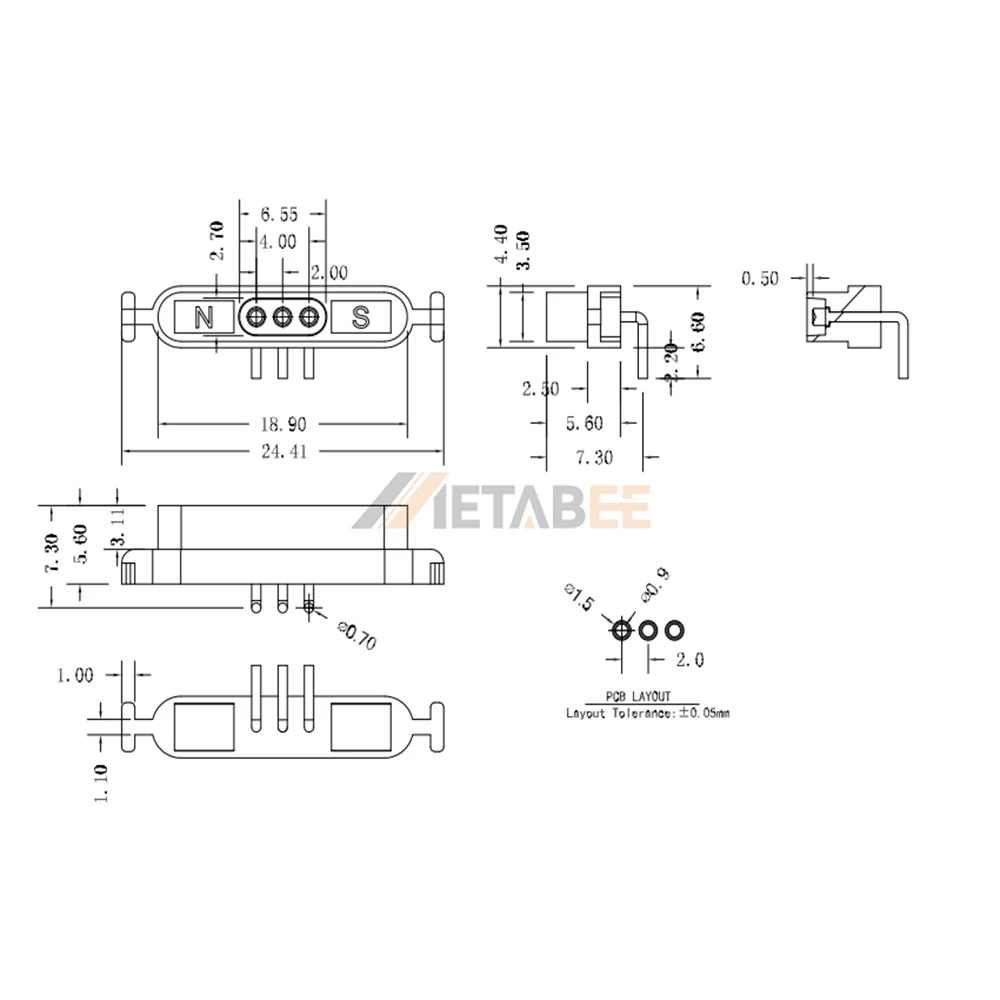

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
