Introduction:

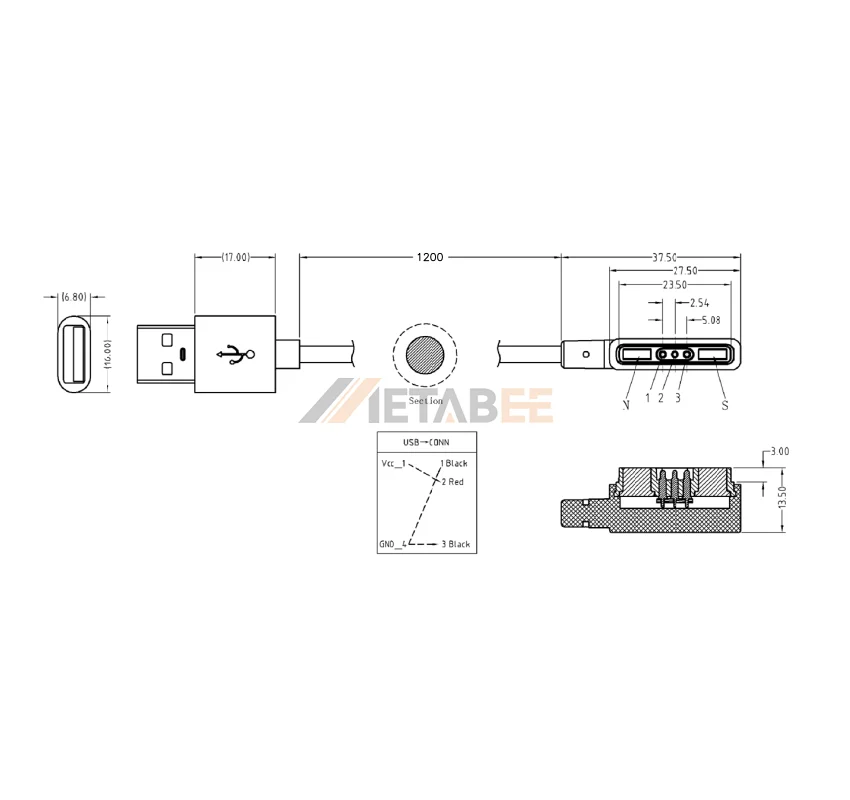

This Pogo Pin USB Charging Cable is a high-performance power assembly designed for efficient device connectivity. It features a 3-pin rounded rectangular connector with a right angle orientation to save space in compact electronic designs. The cable is constructed with 22AWG wire and a 1200mm PVC jacket, supporting a 2A current rating at 12VDC. With a durable lifespan of 50,000 cycles and 70g of contact force, it ensures a stable electrical path throughout its service life. This cable serves as a reliable charging link for handheld electronics and wearable technology in demanding industrial or consumer environments.
Key Features
- Magnetic Alignment: Rounded rectangular head enables automatic self-aligning connection.
- High Durability: Supports 50,000 compression cycles for long-term use.
- Efficient Power: Handles 2A current at 12VDC rated voltage.
- Robust Cable: 1200mm 22AWG PVC wire ensures reliable durability.
- Space Saving: Right angle design optimizes tight device layouts.
Main Specifications:
General Information:
| Product No.: | CA-RA3-PH1-25D5-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 3 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | Gold flash plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 22AWG | |
| Cable Length: | 1200mm | |
| Jacket Material & Color: | PVC 55P, Black |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50 mohms max | |
| Insulation Resistance: | N/A | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 70±20gf | |
| Working Stroke: | 1mm | |
| Full Stroke: | 1.4mm | |
| Durability: | 50,000 cycles |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
