Introduction:

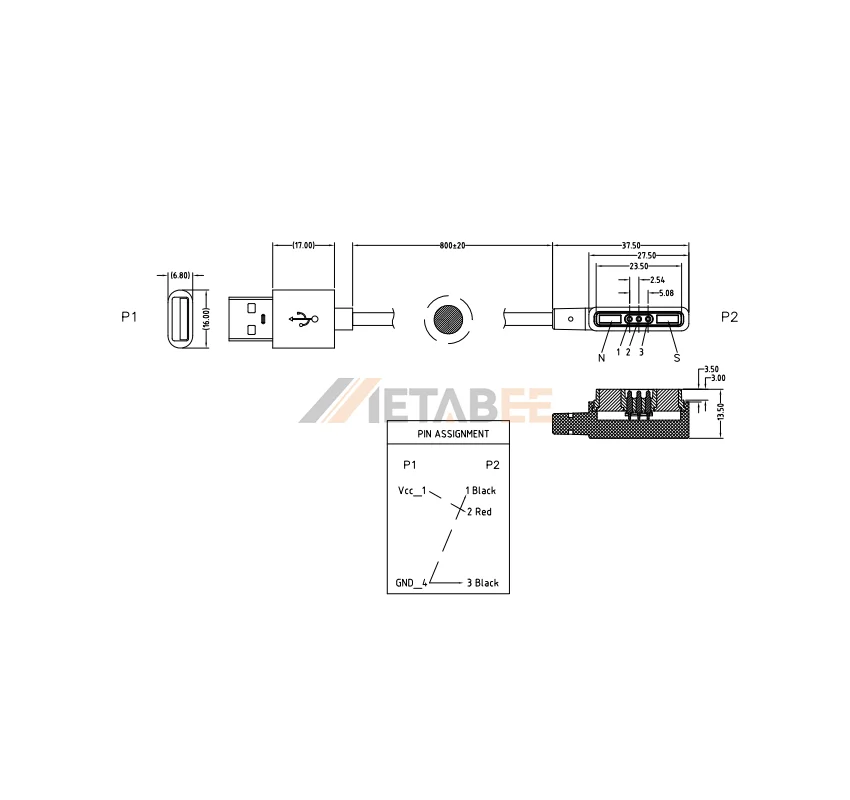

This pogo pin charging cable is a 3-pin magnetic power assembly designed for specialized electronic docking interfaces. It features a rectangular magnetic head with a standard 2.54mm pitch and a right angle orientation to optimize space in compact device housings. The 800mm round cable utilizes 22AWG wire and a black PVC jacket for mechanical durability. With a significant 10u” gold-plated finish on the contacts, it ensures low electrical resistance and high corrosion protection during repeated use. This component provides a reliable, self-aligning charging link for handheld devices and modular wearable technology.
Key Features
- Magnetic Alignment: Rectangular head ensures automatic self-centering device docking.
- Standard Pitch: 2.54mm pitch design for easy modular board integration.
- Thick Plating: 10u” gold-plated contacts prevent oxidation and maintain conductivity.
- Space Saving: Right angle orientation optimizes layouts in tight housings.
- Robust Cable: Durable 800mm 22AWG PVC wire ensures reliable power.
Main Specifications:
General Information:
| Product No.: | CA-USBAM-PH-3E03-MVCC | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 3 | |
| Connector 2-Shape: | Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | 10u” Gold plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 22AWG | |
| Cable Length: | 800±20 mm | |
| Jacket Material & Color: | Black, 55P PVC |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | N/A | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | N/A | |
| Working Stroke: | N/A | |
| Full Stroke: | N/A | |
| Durability: | N/A |
Environmental:
| Operating Temperature: | N/A | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
