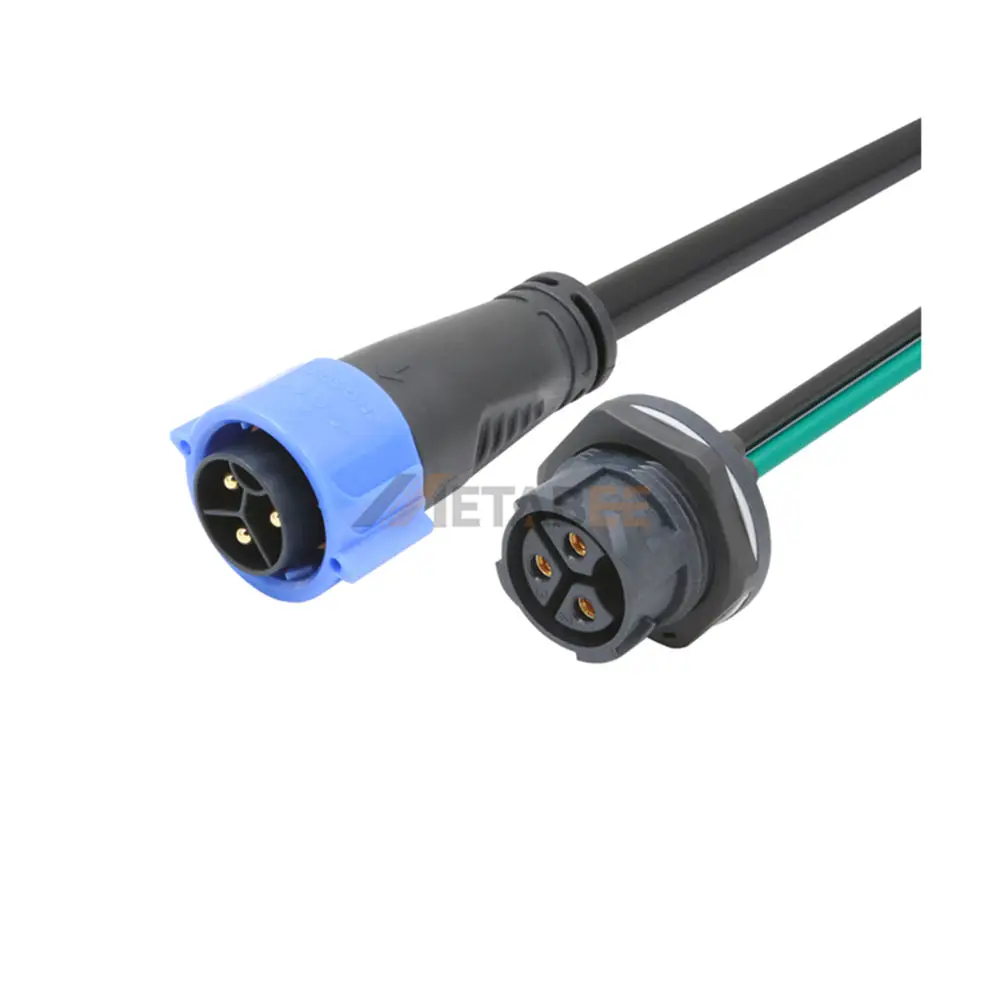

3 Pin High-Current Power Charging Connector for LEV, IP67
Introduction
The 3 Pin High-Current Power Charging Connector for LEV is designed for reliable power transmission in light electric vehicle charging systems. Its 3-pin configuration supports efficient electrical connections, making it suitable for electric motorcycles, scooters, and other light electric mobility applications requiring high-current charging performance.
With an IP67 protection rating, this connector provides dust-tight protection and resistance to temporary water immersion under specified test conditions. Its UL94V-0 flame-retardant material enhances fire safety, while the wide operating temperature range of -40°C to +105°C supports dependable performance in demanding environments.
Key Features:
- 3-Pin Configuration: Supports reliable power connections.
- High-Current Capability: Designed for demanding charging applications.
- IP67 Protection: Dust-tight and resistant to temporary water immersion.
- UL94V-0 Flame Retardancy: Enhances fire safety.
- Wide Temperature Range: Operates from -40°C to +105°C.
- LEV Compatibility: Suitable for electric motorcycles and scooters.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0033 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2 Pin | |
| Wire Gauge: | 12~10AWG | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 600V | |
| Rated Current: | 40A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,500V AC | |
| Durability (Mating): | 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
