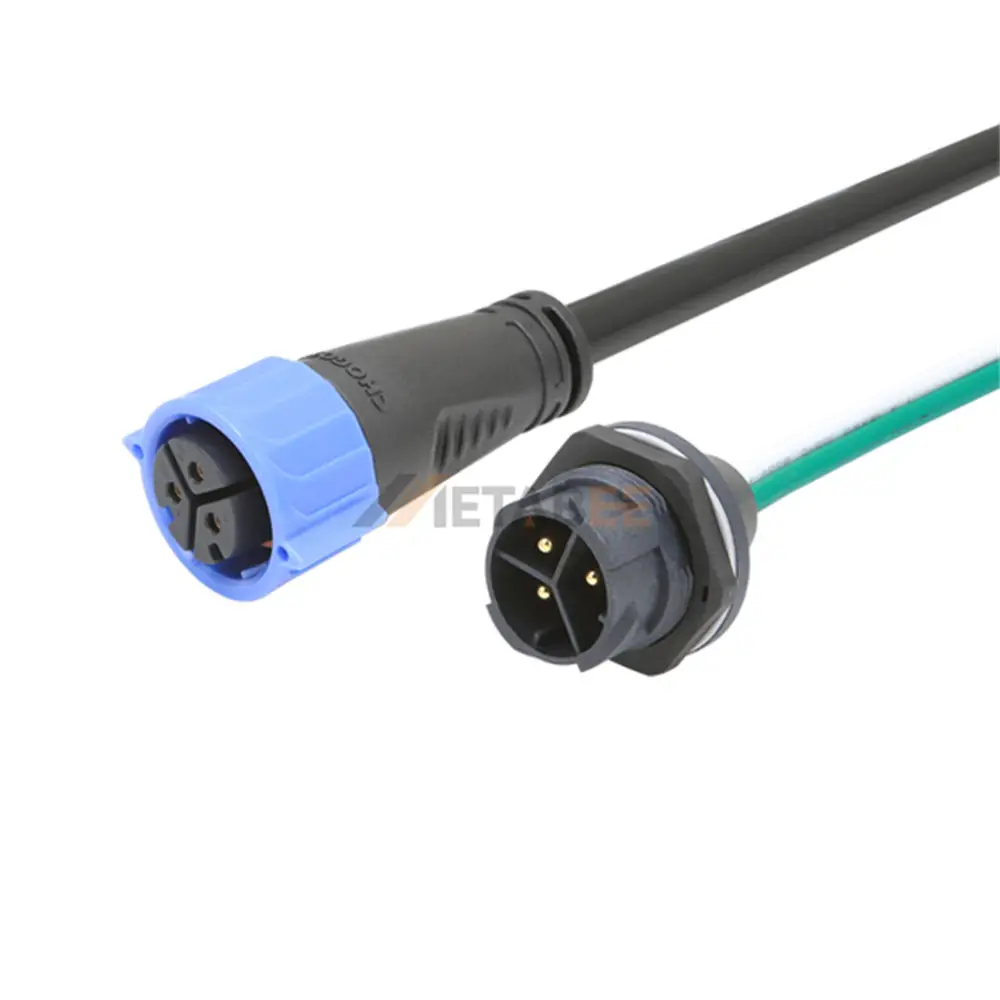

3 Pin Circular Electric Power Charger, Push Lock, IP67
Introduction
This 3 pin circular connector is designed for reliable electric power charging in e-motorcycle and LEV applications. The push-lock mechanism ensures a secure, stable connection during charging, while the IP67 rating provides dependable protection against dust and water ingress. Made with UL94V-0 flame-retardant materials, the connector offers enhanced safety, and its wide operating temperature range of -40°C to 105°C ensures stable performance in extreme conditions.
Key Features:
- 3 pin circular configuration for power charging
- Push-lock design for secure connection
- IP67 waterproof and dustproof protection
- UL94V-0 flame-retardant housing for safety
- Wide operating temperature: -40°C to 105°C
- Durable performance for outdoor use
Main Specifications:
General Information:
| Part No.: | YC-E1001-0032 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2 Pin | |
| Wire Gauge: | 14~12AWG | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 600V | |
| Rated Current: | 30A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 2,500V AC | |
| Durability (Mating): | 500 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
