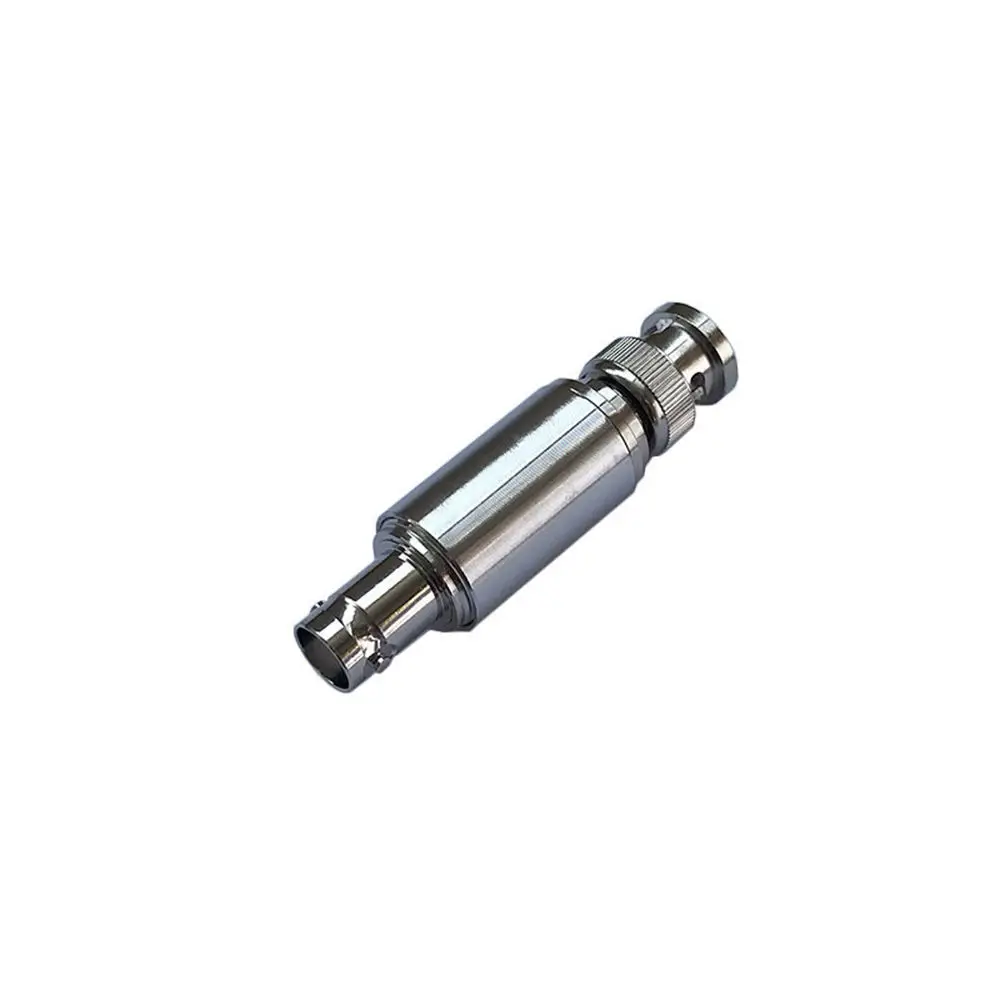

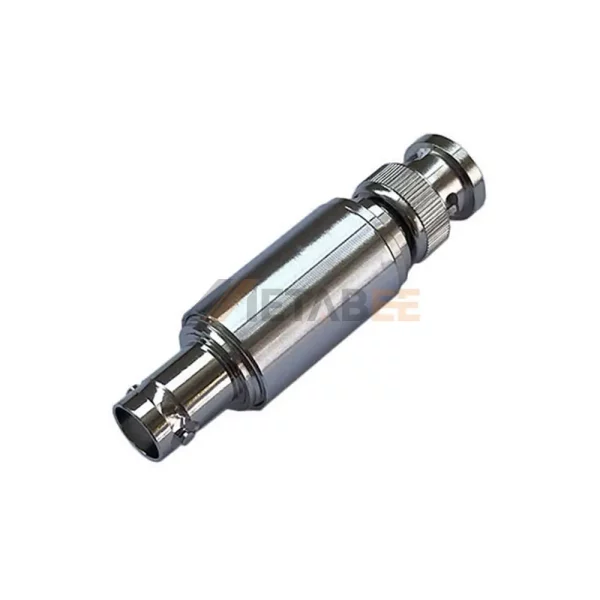

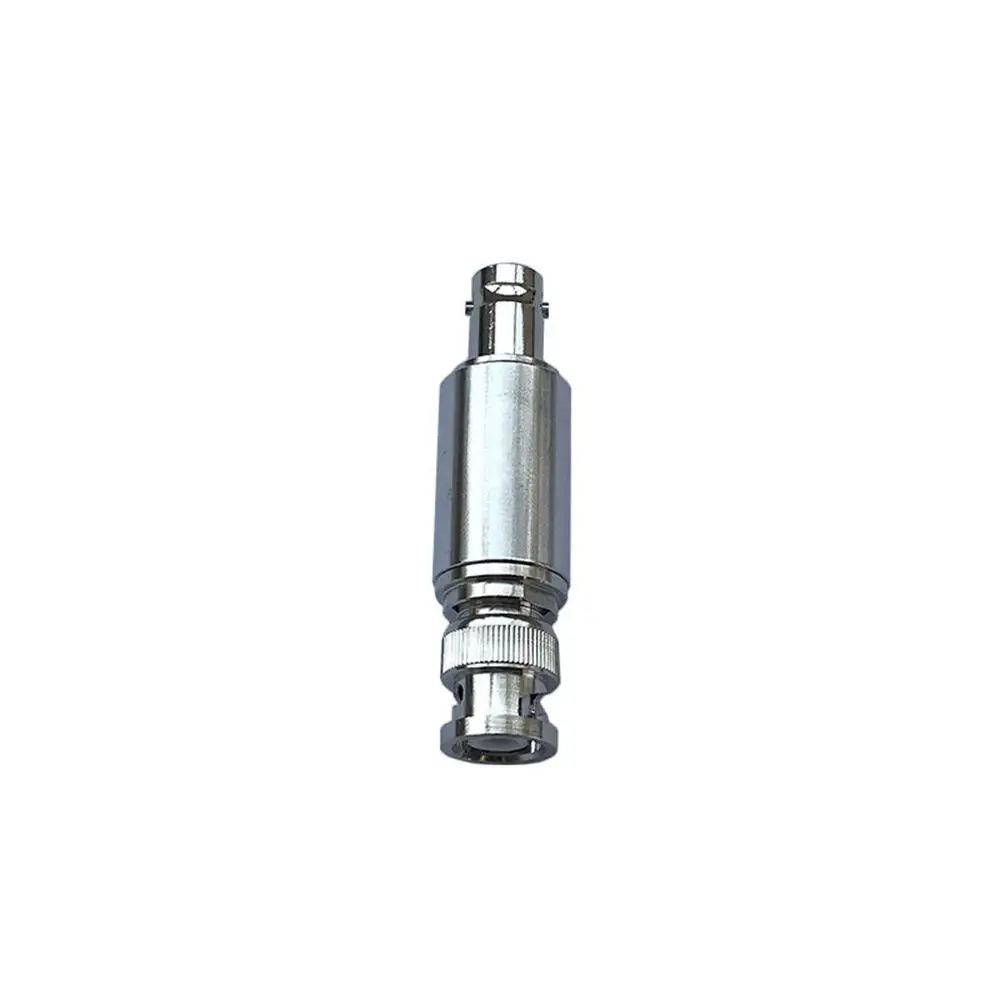

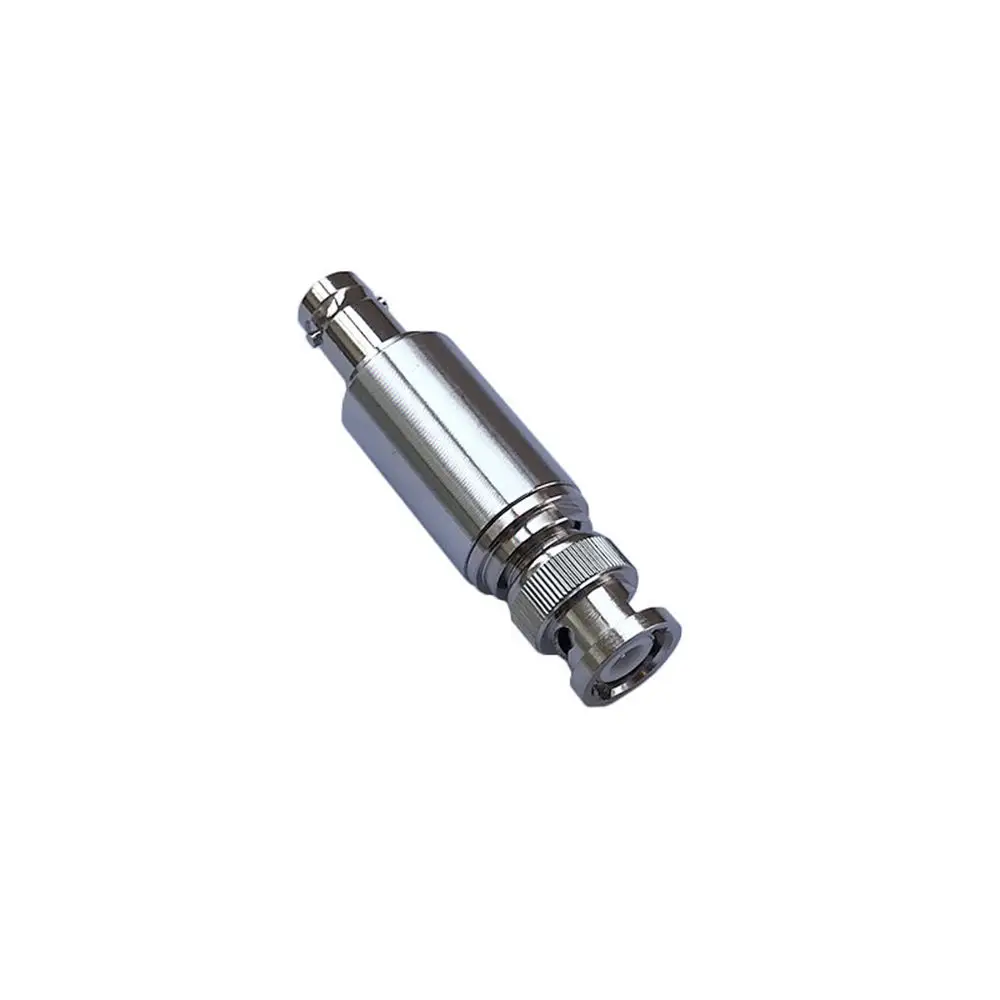

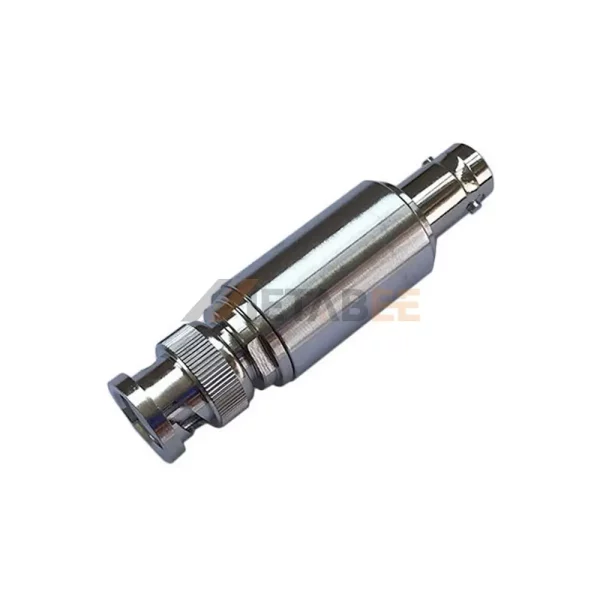

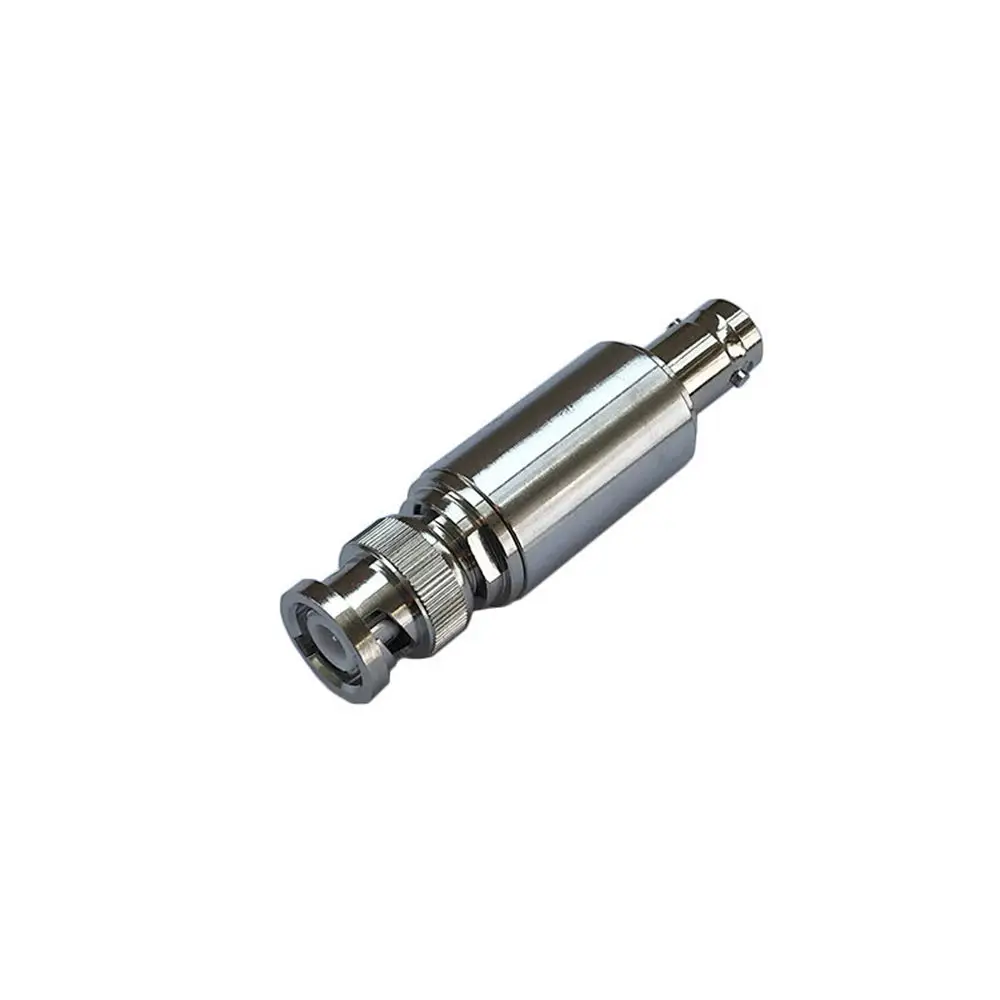

2W BNC Male to BNC Female RF Fixed Attenuator, DC to 3GHz, 50 Ohm
Introduction
The 2W BNC Male to BNC Female RF Fixed Attenuator offers reliable performance for RF signal attenuation across DC to 3GHz. Designed with precision, this attenuator maintains a 50-ohm impedance and ensures consistent signal reduction while minimizing reflections. Its BNC male-to-female configuration provides a secure and quick connection in test setups and communication systems.
Constructed with a stainless steel housing, this attenuator withstands harsh operating environments with a temperature range from -55°C to +125°C. The low VSWR of 1.20:1 guarantees excellent signal integrity, making it ideal for laboratory, telecom, and broadcast applications. Rated at 2 watts, it ensures dependable power handling in compact systems where space and performance are critical. Engineered for durability and reliability, this BNC attenuator also meets IP20 protection standards, offering basic protection against solid objects.
Key Features:
- Frequency Range: DC to 3 GHz
- Power Rating: 2 Watts
- Impedance: 50 Ohms
- Connectors: BNC Male to BNC Female
- VSWR: ≤ 1.20:1
- Operating Temperature: -55°C to +125°C
- Housing: Rugged stainless steel, IP20-rated
Main Specifications:
| Part No.: | 2W-BNC-JK-3G | |
| Product Series: | BNC Attenuators | |
| Brand: | Metabee | |
| Connector 1: | BNC Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | BNC Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 2W | |
| Attenuation: | 1DB, 2DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 2W BNC Male to BNC Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
