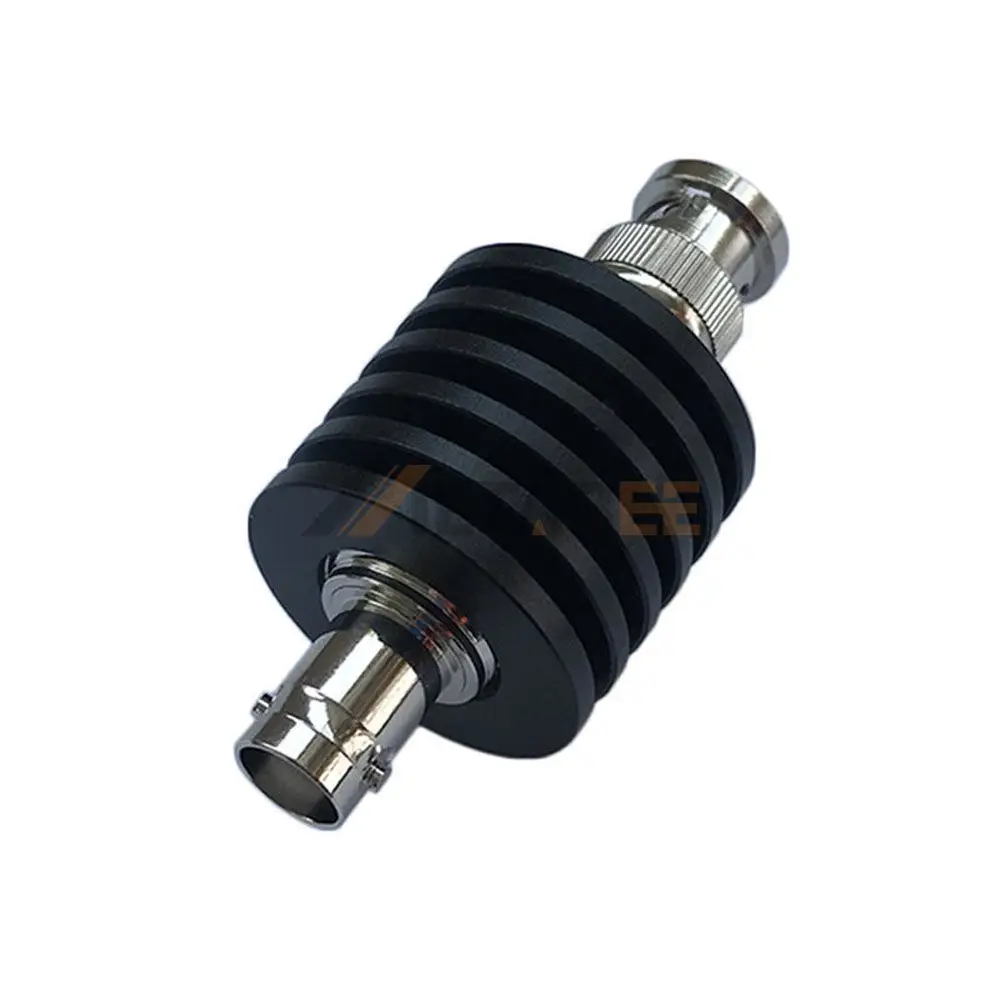

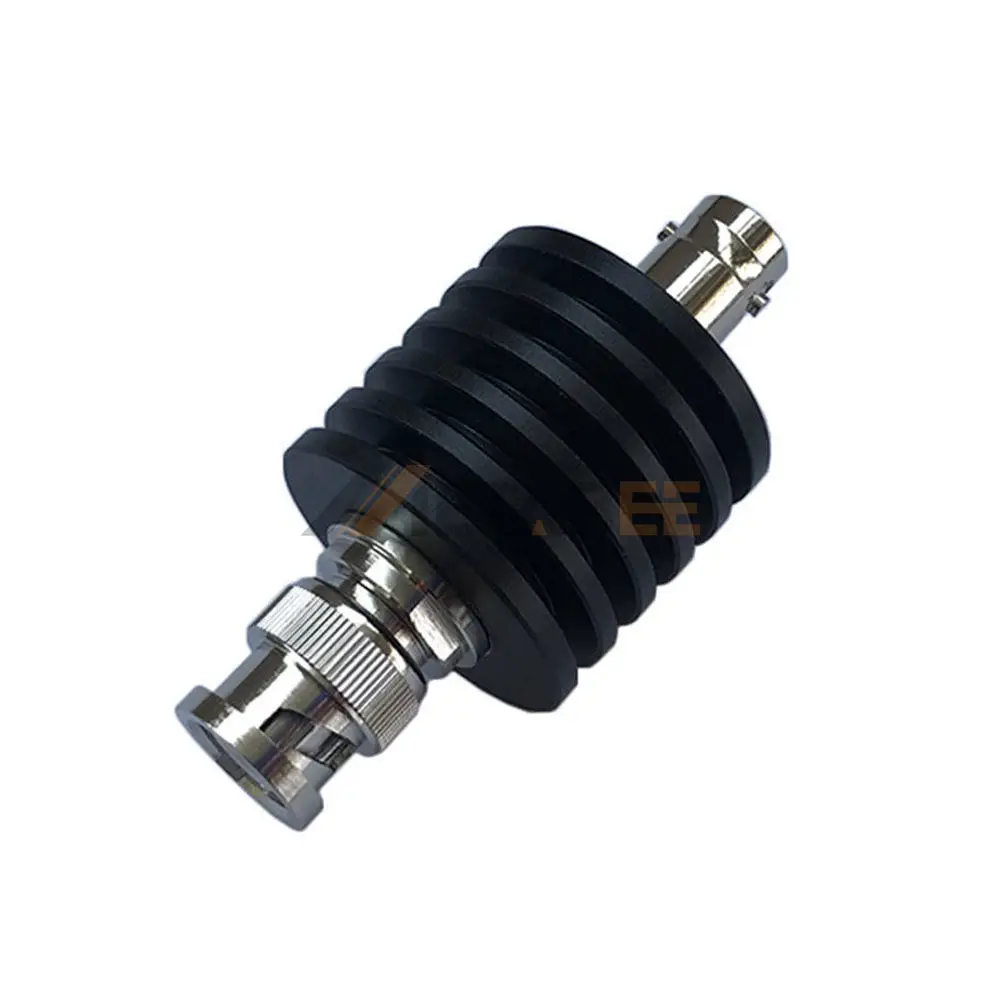

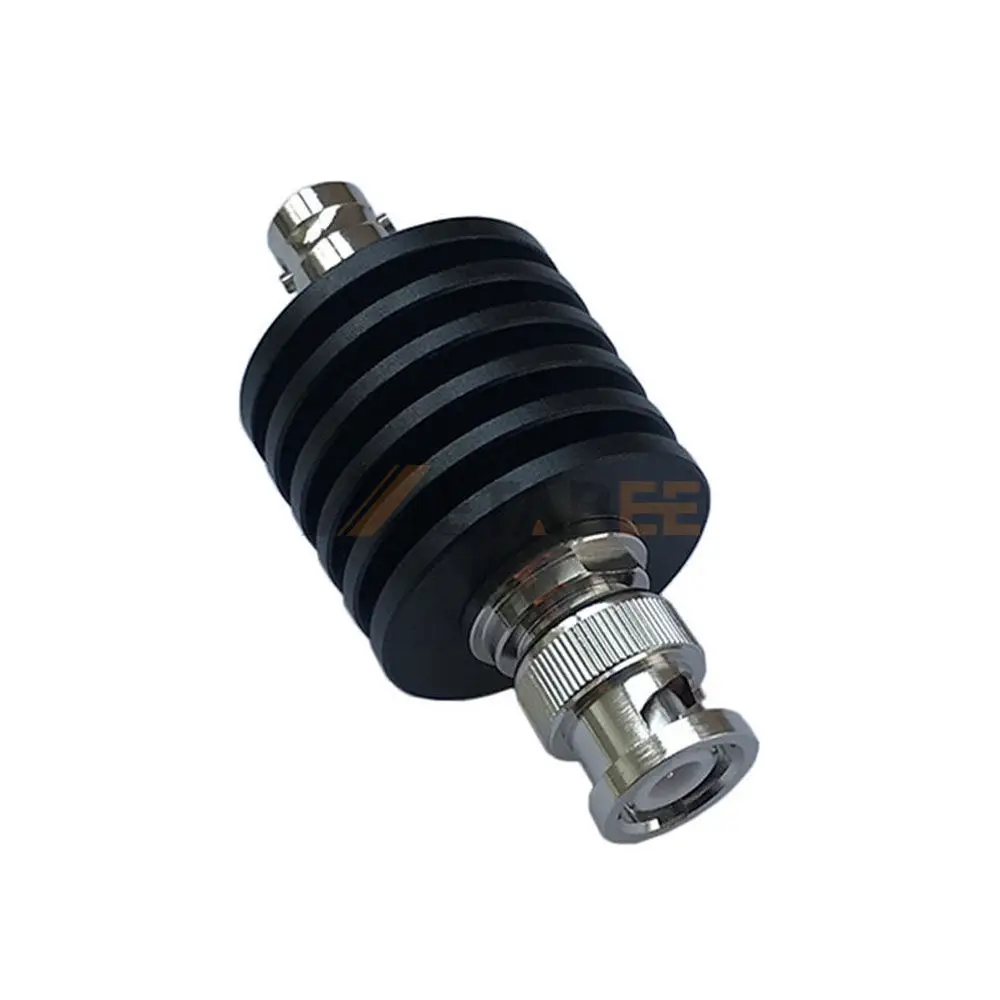

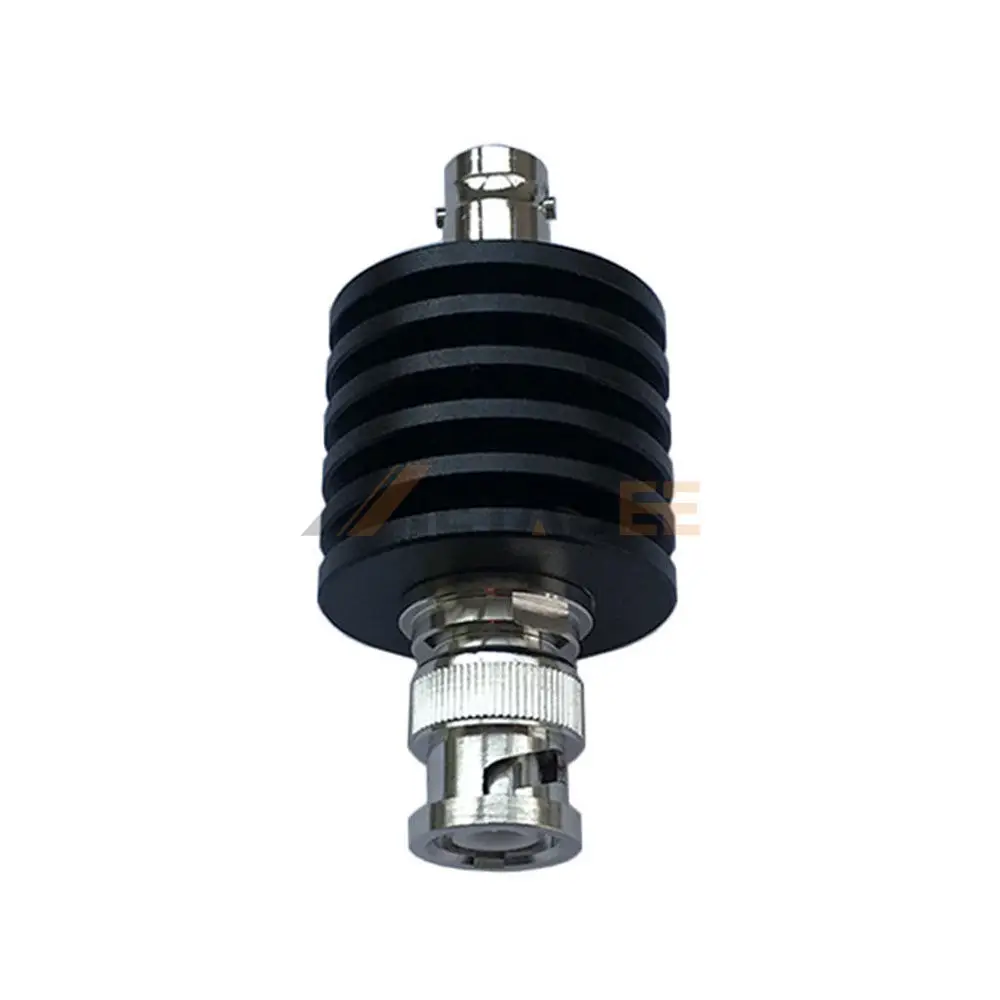

10W BNC Male to BNC Female Fixed RF Attenuator, DC to 4GHz
Introduction
This BNC attenuator is engineered for precision and durability, making it an ideal choice for a wide range of RF applications. It features a BNC male to BNC female configuration, both crafted from robust stainless steel for exceptional longevity and signal integrity. With a 50-ohm impedance, this attenuator ensures optimal power matching and minimal signal reflection across your system.
Designed to operate seamlessly from DC to 4 GHz, this fixed attenuator provides reliable signal reduction with a low VSWR of 1.20:1, minimizing power loss and distortion. Its 10W power handling capacity makes it suitable for demanding environments, while an IP20 rating and an extensive operating temperature range of -55°C to 125°C guarantee performance in various conditions. This BNC attenuator is a dependable solution for engineers and technicians requiring precise signal level control.
Key Features:
- 50 Ohm Impedance: Ensures optimal signal matching and performance.
- DC to 4 GHz Frequency Range: Versatile for a wide array of RF applications.
- 10W Power Handling: Robust capacity for demanding systems.
- Low VSWR (1.20:1): Minimizes signal reflection and loss.
- Stainless Steel Construction: Durable and corrosion-resistant for long-term use.
- Wide Operating Temperature: Functions reliably from -55°C to 125°C.
Main Specifications:
| Part No.: | 10W-BNC-JK-4G | |
| Product Series: | BNC Attenuators | |
| Brand: | Metabee | |
| Connector 1: | BNC Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | BNC Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 10W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 10W BNC Male to BNC Female Fixed RF Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
