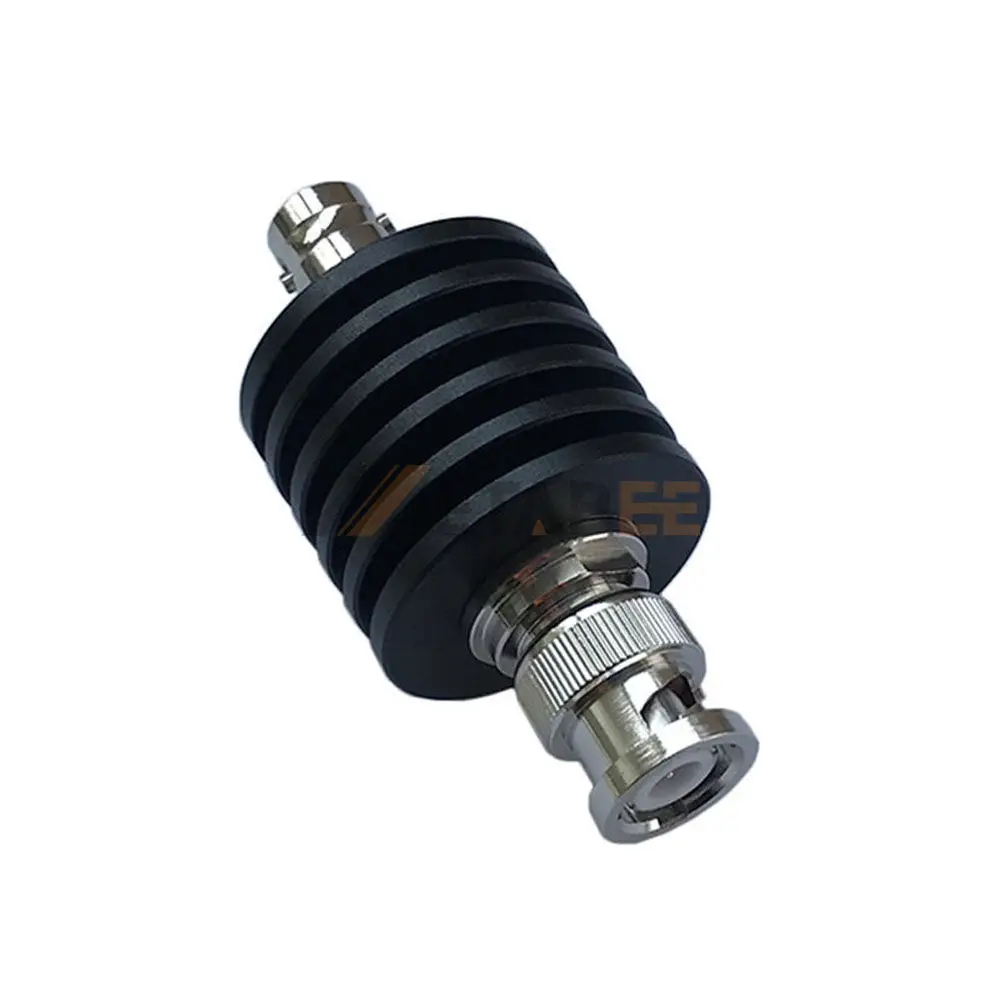

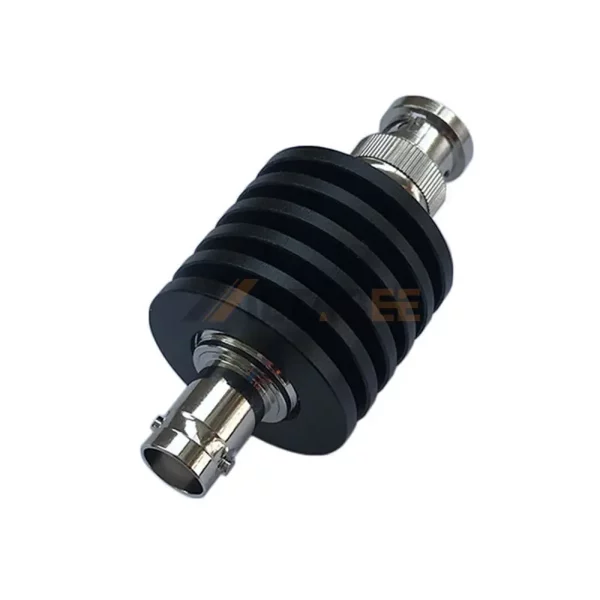

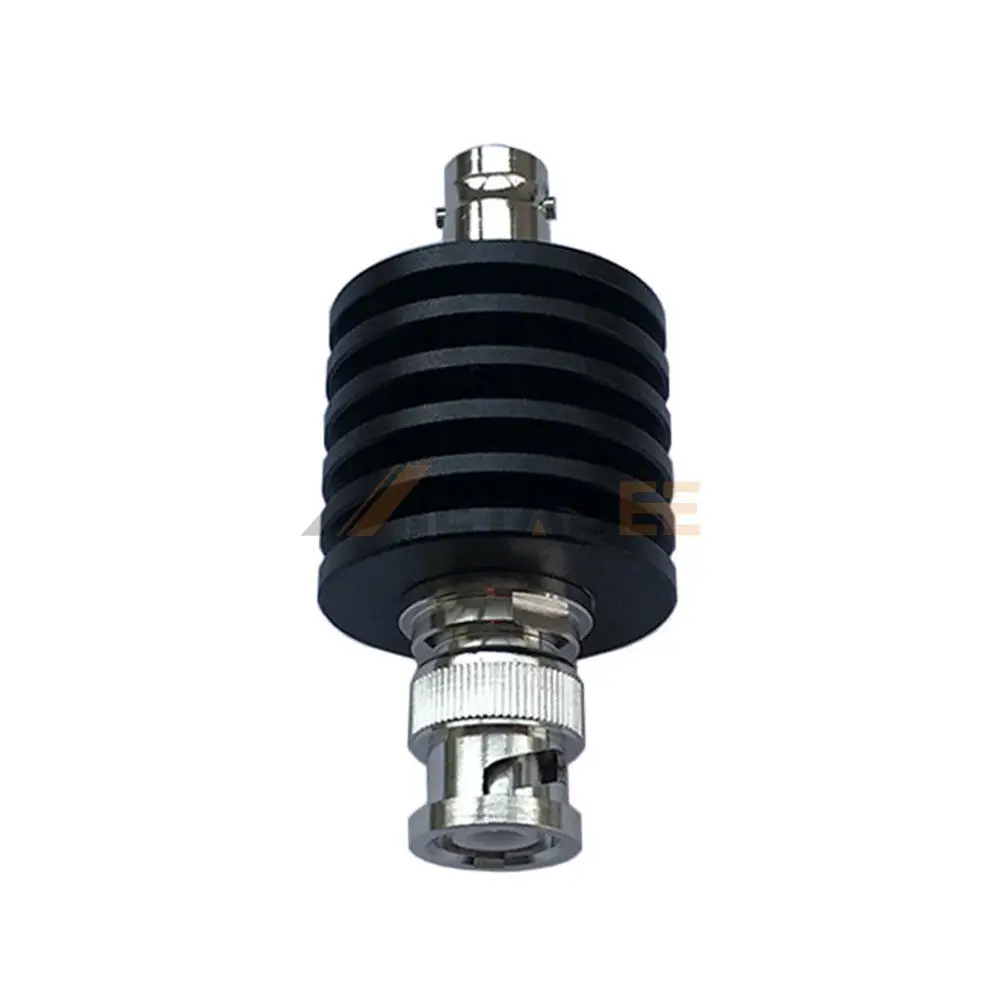

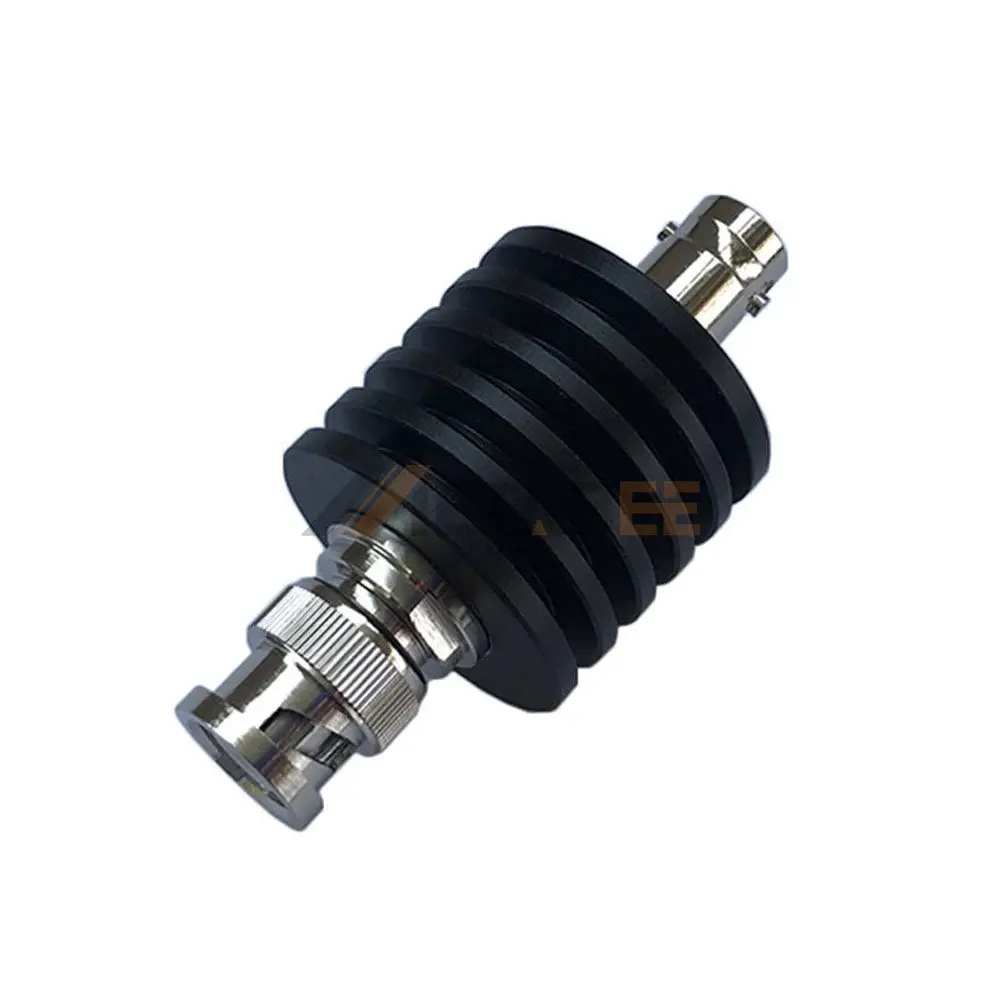

10W BNC Male to BNC Female Coaxial Fixed Attenuator, DC to 3GHz
Introduction
Our BNC attenuator delivers high reliability and superior signal fidelity for demanding RF applications. Constructed with precision stainless-steel housings and rugged BNC connectors (male to female), this attenuator ensures a solid 50 Ω characteristic impedance across its operating range. With a power rating of 10 W and a low VSWR of 1.20:1, it provides consistent performance from DC up to 3 GHz—ideal for laboratory test setups, signal calibration, and impedance matching tasks.
Rated to operate comfortably in temperatures from –55 °C to 125 °C, it is built to withstand harsh environments. The IP20 protection level guards against solid objects over 12 mm, making it suitable for indoor use in RF racks or shielded cabinets. Whether you’re deploying it in industrial test benches, telecommunications systems, or broadcast equipment, this compact attenuator offers dependable attenuation, enhanced signal integrity, and long-term stability.
Key Features:
- Power Handling: Up to 10 W average power for demanding RF setups
- Frequency Range: DC to 3 GHz — wideband compatibility
- Impedance: Precision 50 Ω matching for low insertion loss
- VSWR: Excellent 1.20:1 maximum for signal integrity
- Connectors: BNC male → BNC female, both with stainless steel housings
- Environmental Tolerance: −55 °C to +125 °C operating range, IP20-rated
- Series: Premium BNC Attenuator line, ideal for laboratory and field use
Main Specifications:
| Part No.: | 10W-BNC-JK-3G | |
| Product Series: | BNC Attenuators | |
| Brand: | Metabee | |
| Connector 1: | BNC Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | BNC Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 10W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 10W BNC Male to BNC Female Coaxial Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
