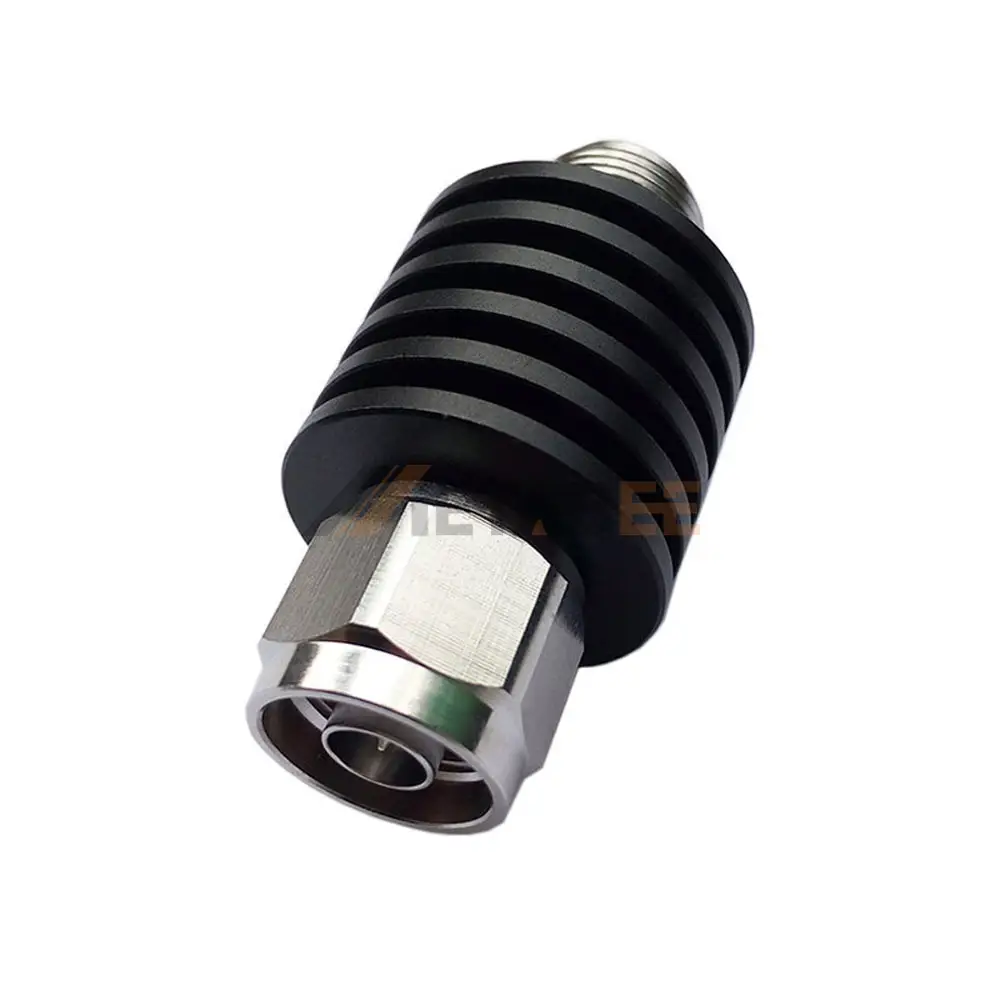

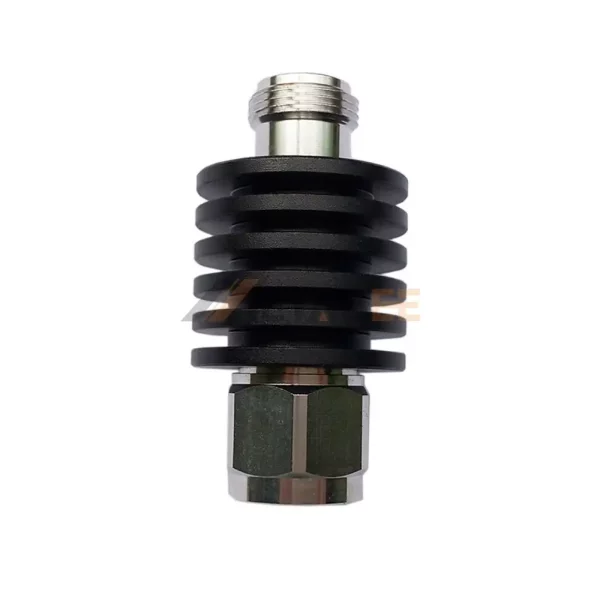

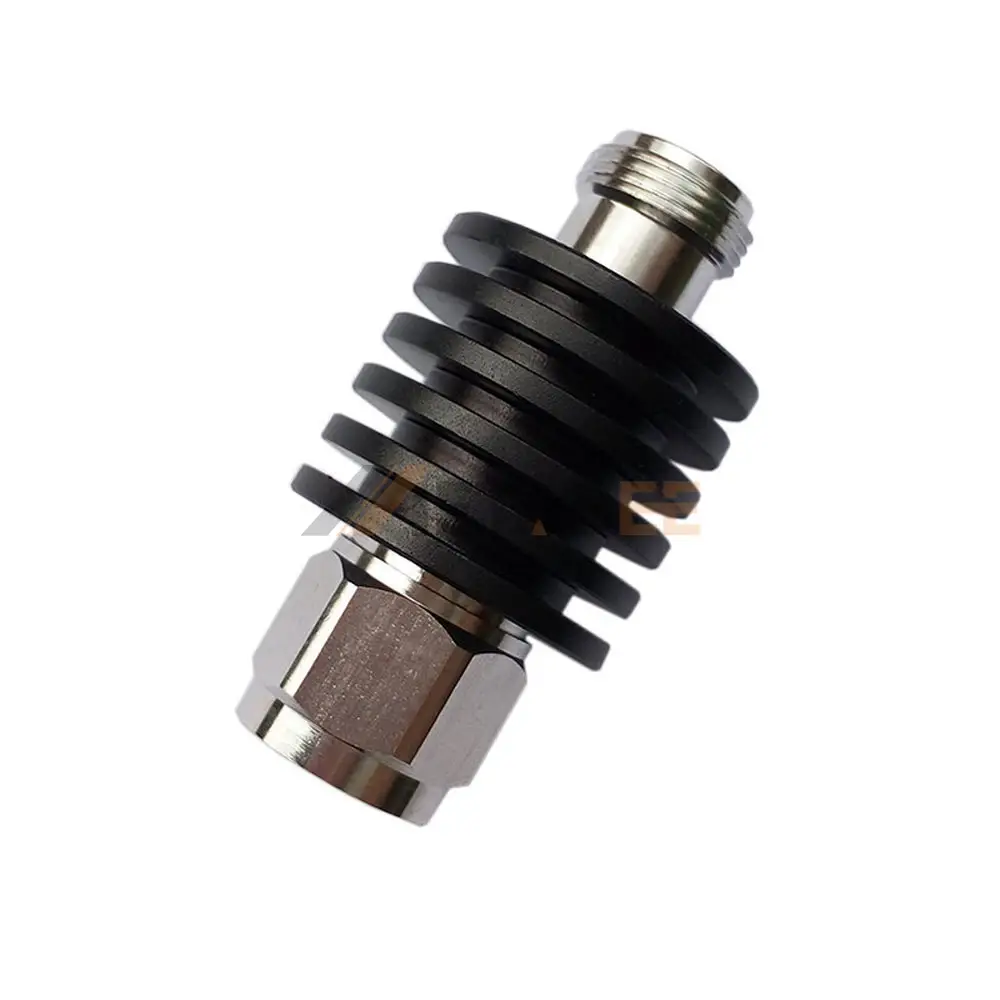

10W N-type Male to N-type Female Microwave Fixed Attenuator, DC to 3GHz
Introduction
This 10W N-type attenuator is engineered for consistent signal attenuation in RF and microwave systems. Operating from DC to 3GHz, it ensures optimal performance with a low VSWR of 1.20:1, delivering stable signal control across a wide frequency range. Designed for high-reliability environments, it supports up to 10 watts of power, making it ideal for test setups, transmission line protection, and system-level power balancing.
Built with precision, this attenuator features N-type male and female connectors crafted from corrosion-resistant stainless steel, ensuring durability and mechanical strength. With 50-ohm impedance and IP20 protection, it guarantees secure and reliable connections in controlled indoor environments. The operating temperature range of -55°C to +125°C ensures dependable performance under extreme thermal conditions.
Key Features:
- Frequency Range: DC to 3GHz.
- Power Handling: Up to 10 Watts.
- VSWR: Low reflection with 1.20:1 ratio.
- Connector Type: N-type male to N-type female.
- Impedance: 50 Ohms.
- Material: Stainless steel housing for durability.
- Temperature Range: Operates from -55°C to +125°C.
Main Specifications:
| Part No.: | 10W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 10W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 10W N-type Male to N-type Female Microwave Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
