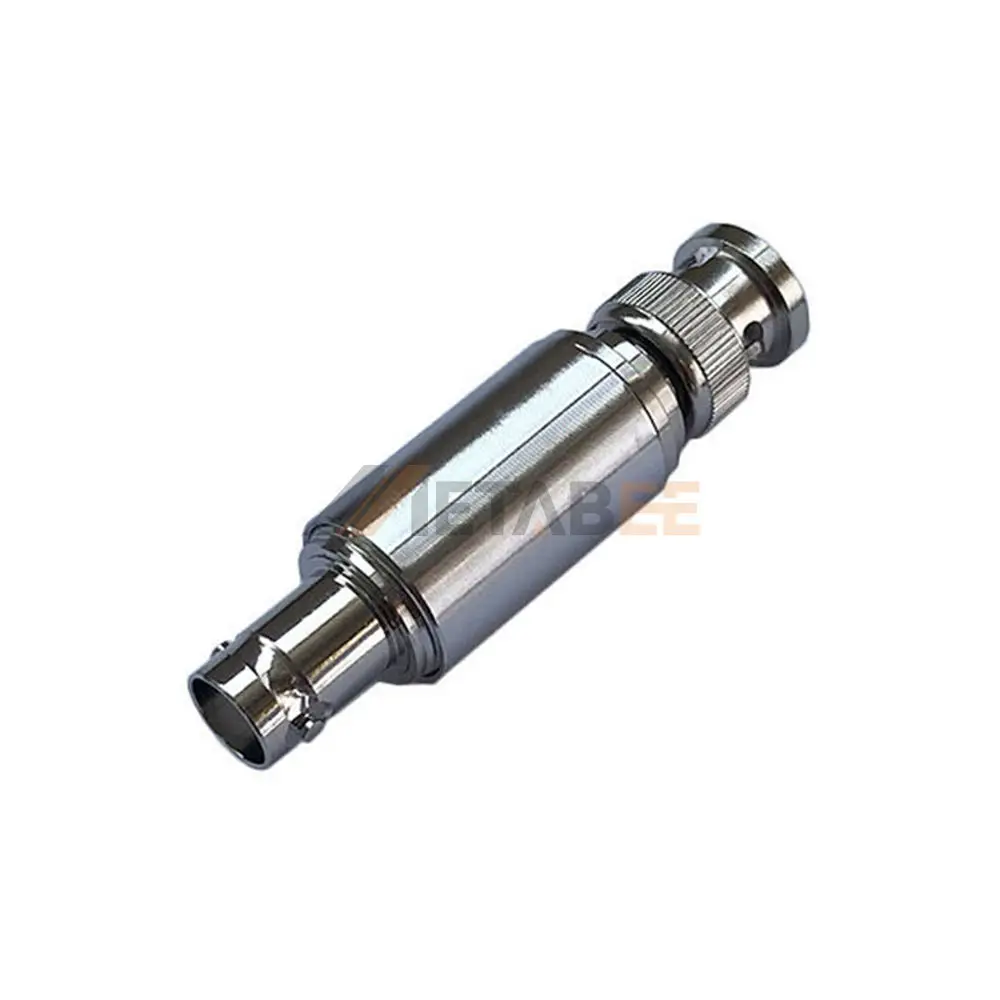

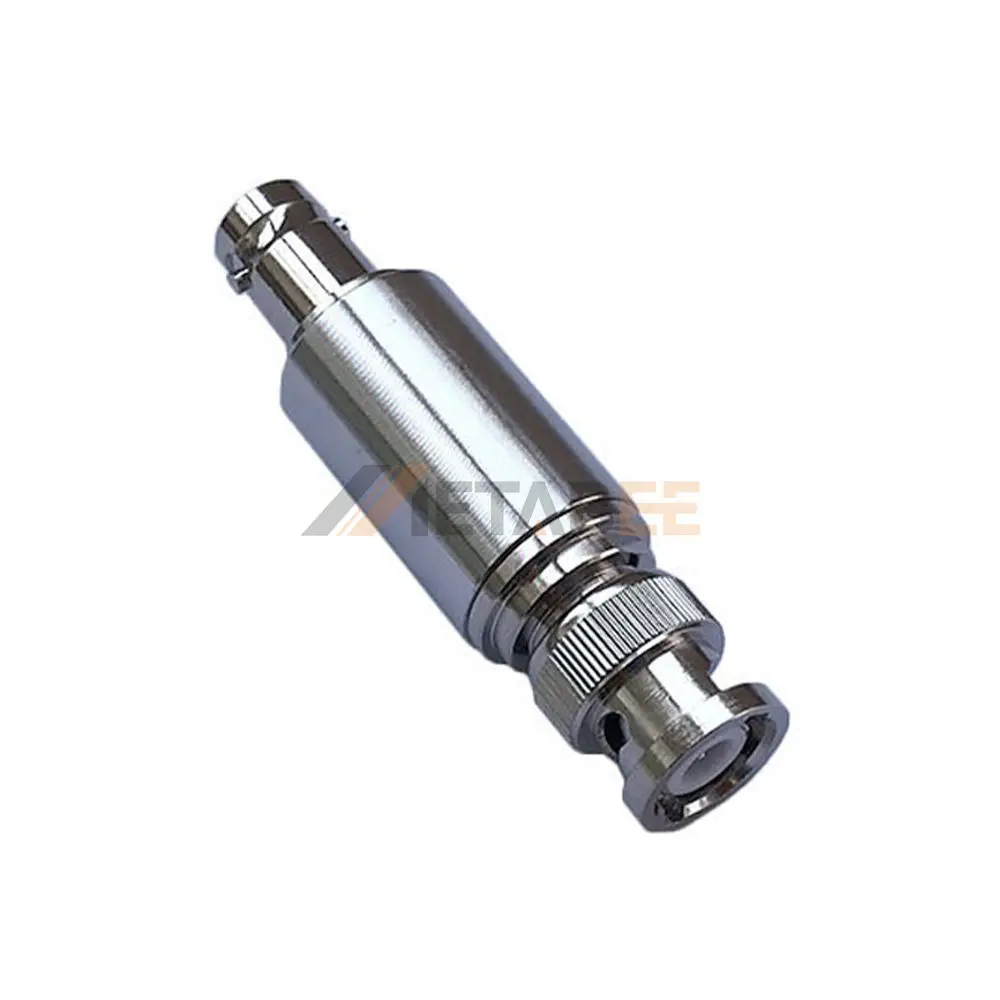

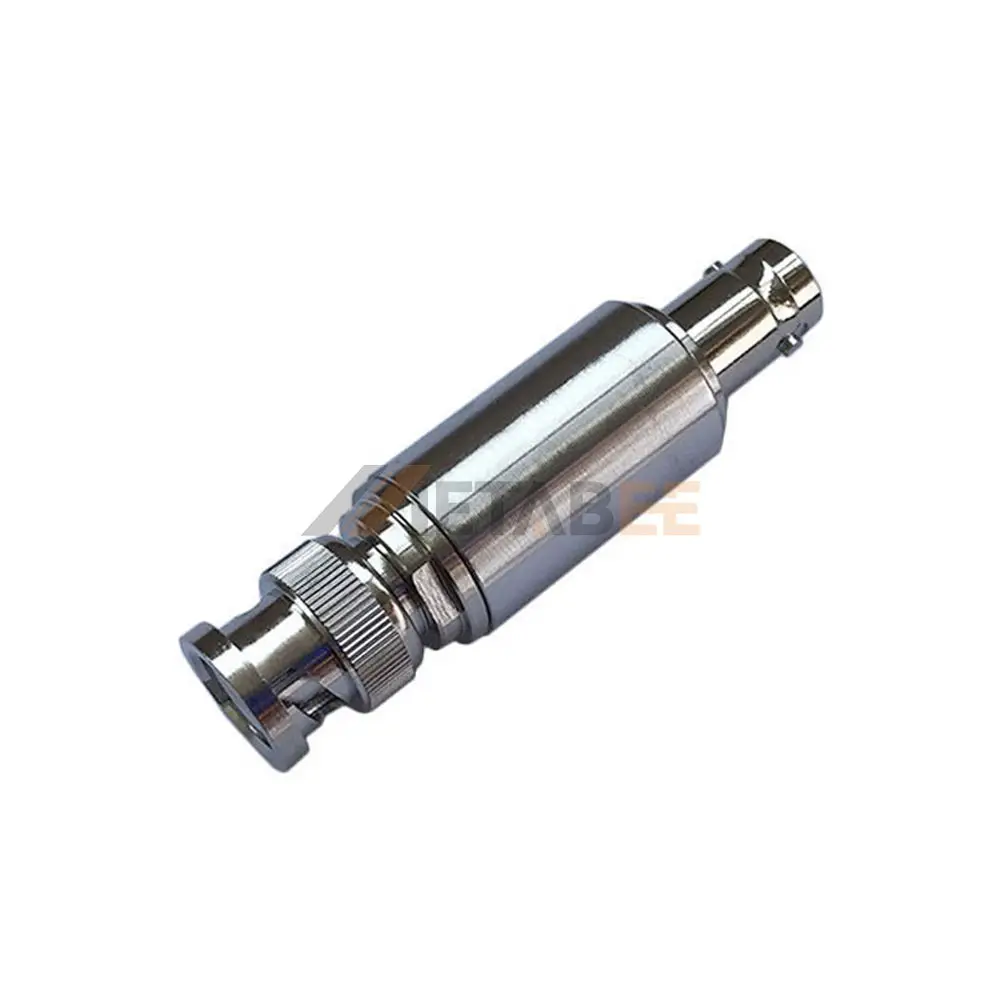

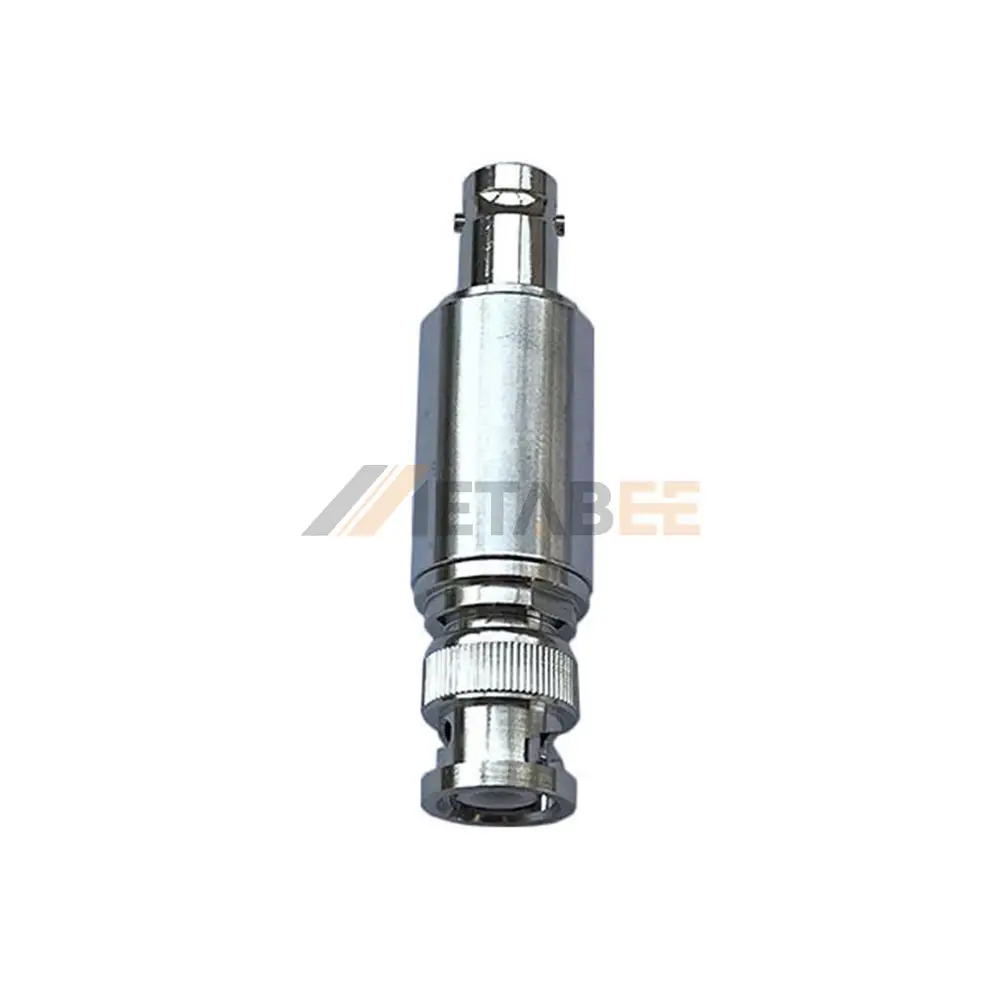

5W BNC Male to BNC Female RF Fixed Attenuator, DC to 3GHz
Introduction
This BNC attenuator is an essential component for precise signal attenuation in a wide range of RF applications. Engineered for reliability, it features a BNC male connector on one end and a BNC female connector on the other, both constructed from durable stainless steel for exceptional longevity and resistance to environmental factors. With a 50-ohm impedance, this attenuator ensures optimal signal integrity and compatibility within your systems.
Designed to operate across a broad frequency range from DC to 3 GHz, this fixed attenuator provides stable performance with a low Voltage Standing Wave Ratio (VSWR) of 1.20:1. It can handle up to 5 watts of power, making it suitable for various demanding scenarios. With an IP20 ingress protection rating and a wide operating temperature range of -55°C to 125°C, it’s built to withstand challenging industrial and laboratory environments, delivering consistent and accurate attenuation whenever you need it.
Key Features:
- Fixed Attenuation: Provides stable and precise signal reduction.
- Wide Frequency Range: Operates from DC to 3 GHz.
- High Power Handling: Supports up to 5 Watts.
- Low VSWR: Ensures minimal signal reflection with a 1.20:1 ratio.
- Durable Construction: Stainless steel BNC connectors for longevity.
- 50 Ohm Impedance: Optimal for standard RF systems.
- Broad Operating Temperature: Reliable performance from -55°C to 125°C.
Main Specifications:
| Part No.: | 5W-BNC-JK-3G | |
| Product Series: | BNC Attenuators | |
| Brand: | Metabee | |
| Connector 1: | BNC Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | BNC Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 5W | |
| Attenuation: | 1DB, 2DB, 3DB, 5DB, 10DB, 15DB, 20DB, 30DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 5W BNC Male to BNC Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
