5W N-type Male to N-type Female RF Fixed Attenuator, DC to 3GHz, 50 Ohm
Introduction

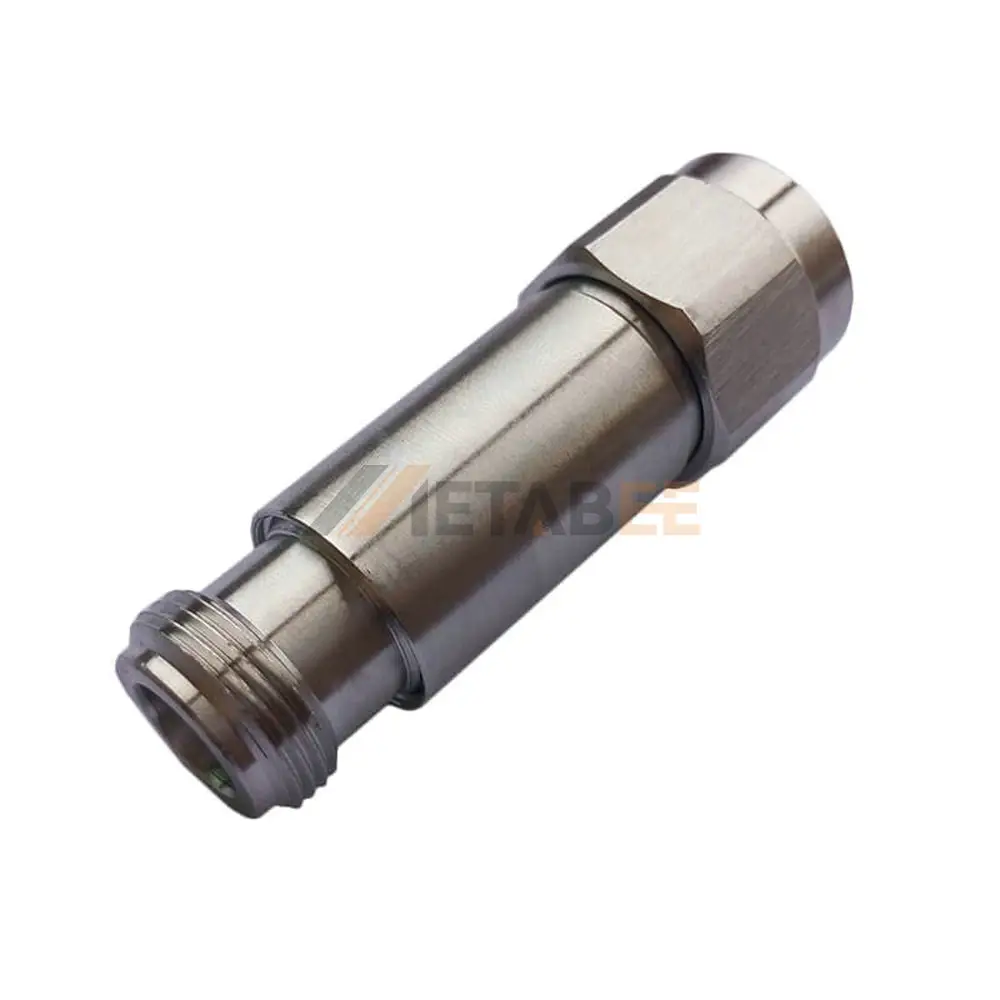

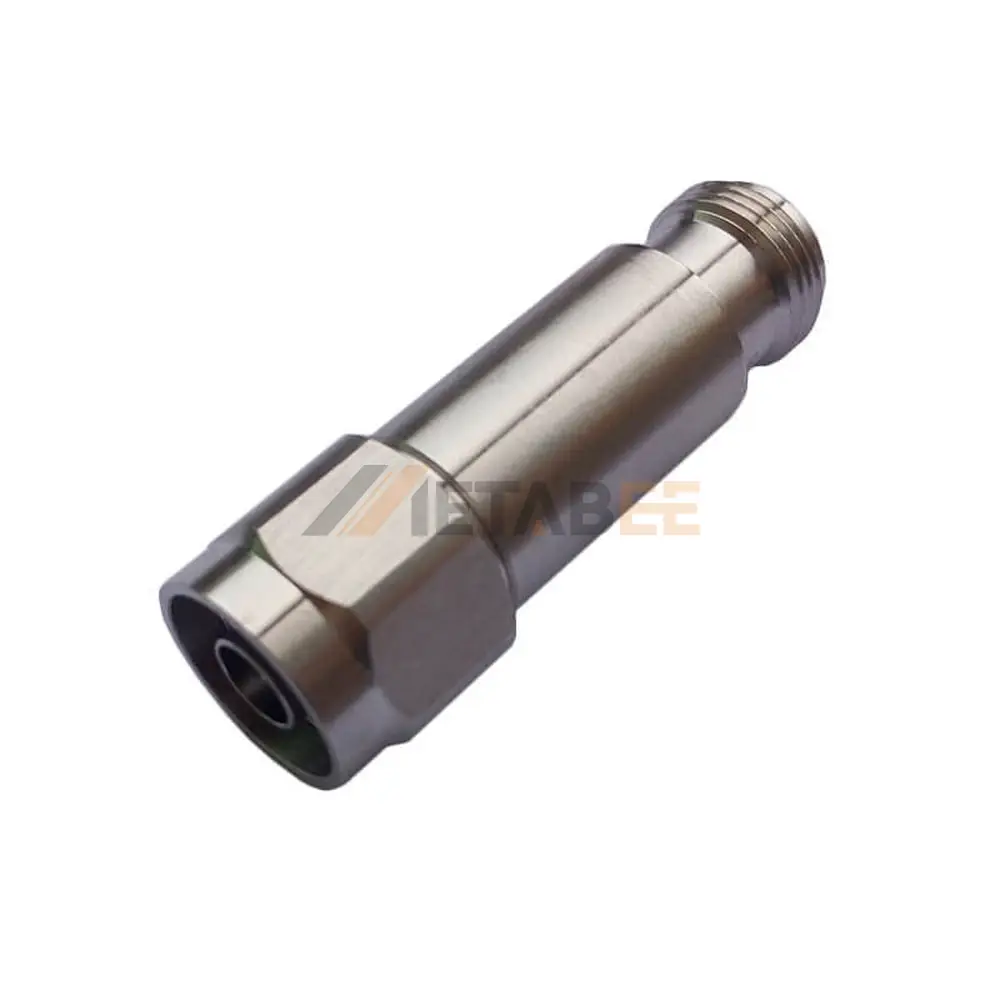

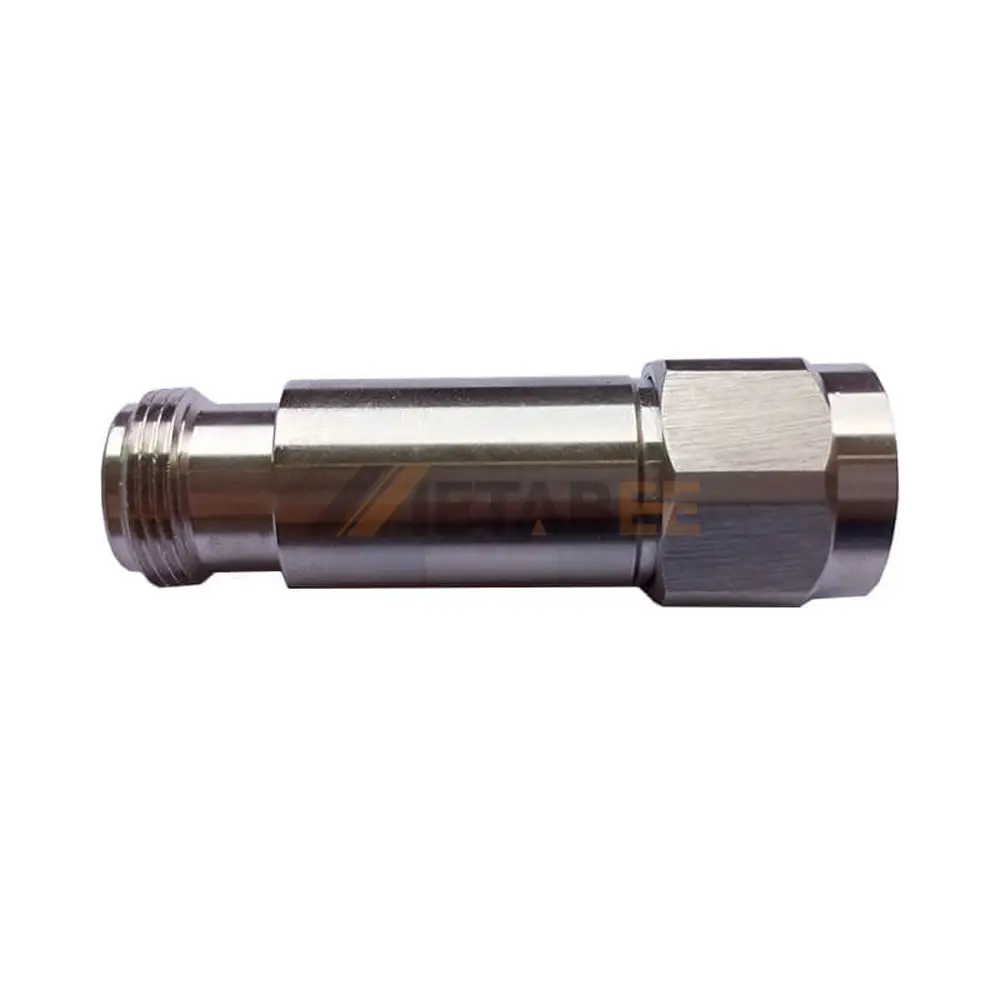

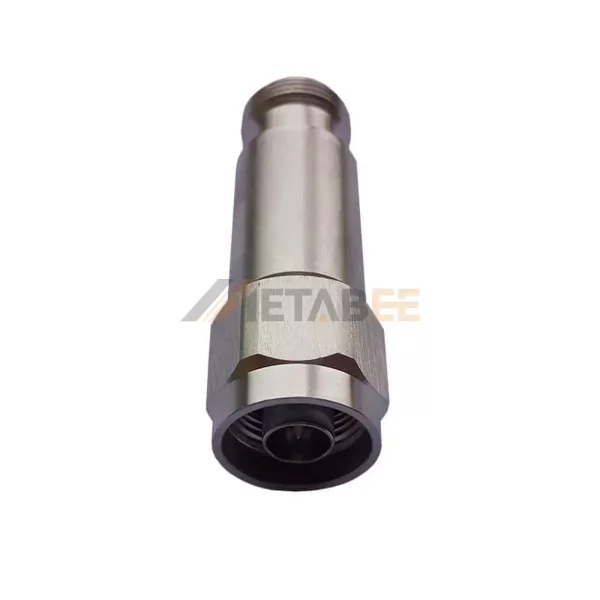

This high-quality 5W N-type fixed attenuator is an essential component for precise signal conditioning in a wide range of RF applications. Engineered for reliability and performance, it features an N-type male connector on one end and an N-type female connector on the other, both crafted from durable stainless steel for exceptional longevity and corrosion resistance. With a 50 Ohm impedance, this attenuator ensures optimal signal transfer and minimal reflection in your coaxial systems.
Designed to operate across a broad frequency range of DC to 3 GHz, this N-type attenuator provides consistent attenuation for various radio frequency signals. It boasts a low Voltage Standing Wave Ratio (VSWR) of 1.20:1, indicating excellent impedance matching and reduced signal loss. Built to withstand demanding environments, it has an IP20 ingress protection rating and an impressive operating temperature range of -55°C to 125°C, making it suitable for both laboratory and field use
Key Features:
- N-Type Connectors: Male to female configuration for versatile integration.
- 50 Ohm Impedance: Ensures optimal signal integrity and compatibility.
- Wide Frequency Range: Operates from DC to 3 GHz for diverse applications.
- Low VSWR (1.20:1): Minimizes signal reflection and power loss.
- Robust Construction: Stainless steel connectors for enhanced durability.
- High Power Handling: Rated for up to 5 Watts.
- Broad Operating Temperature: Reliable performance from -55°C to 125°C.
Main Specifications:
| Part No.: | 5W-N-JK-3G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 5W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 3 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 5W N-type Male to N-type Female RF Fixed Attenuator, 50 Ohm:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
We can provide the RF Attenuators according to your special requirements. Get a free quotation now!
