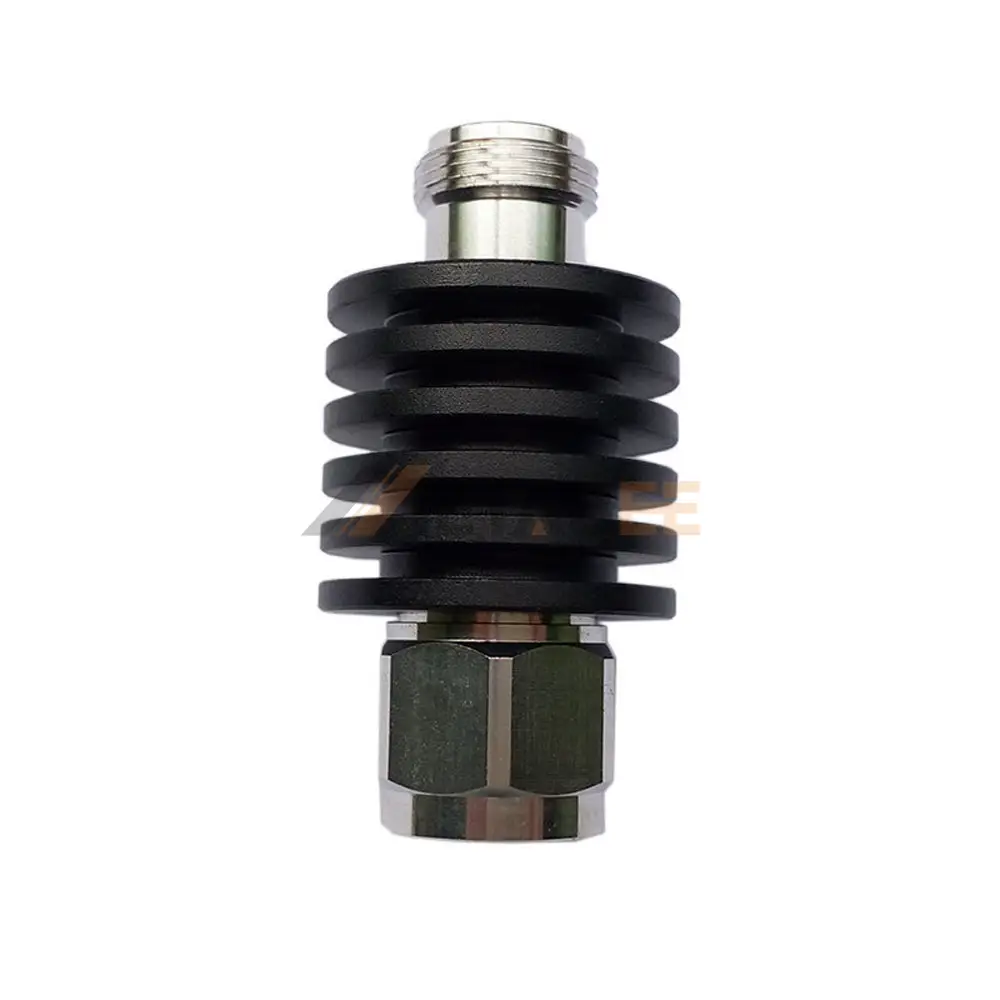

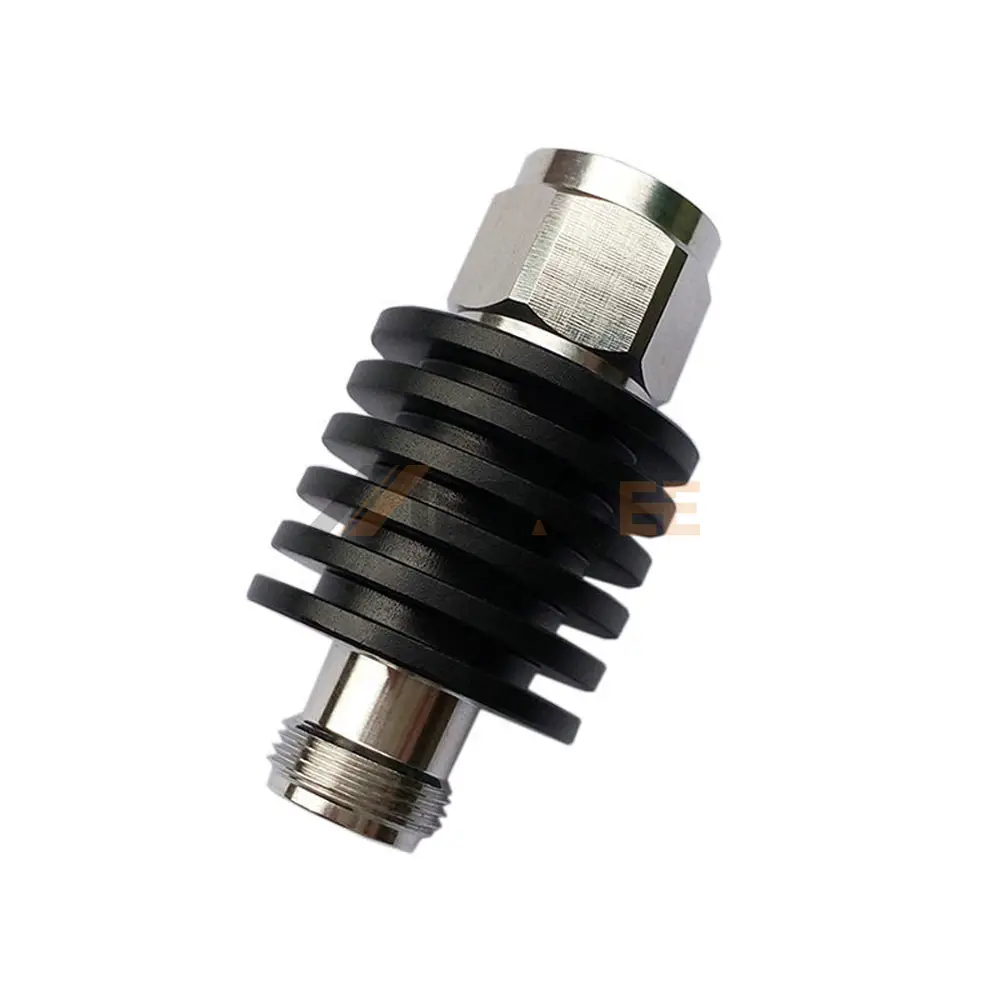

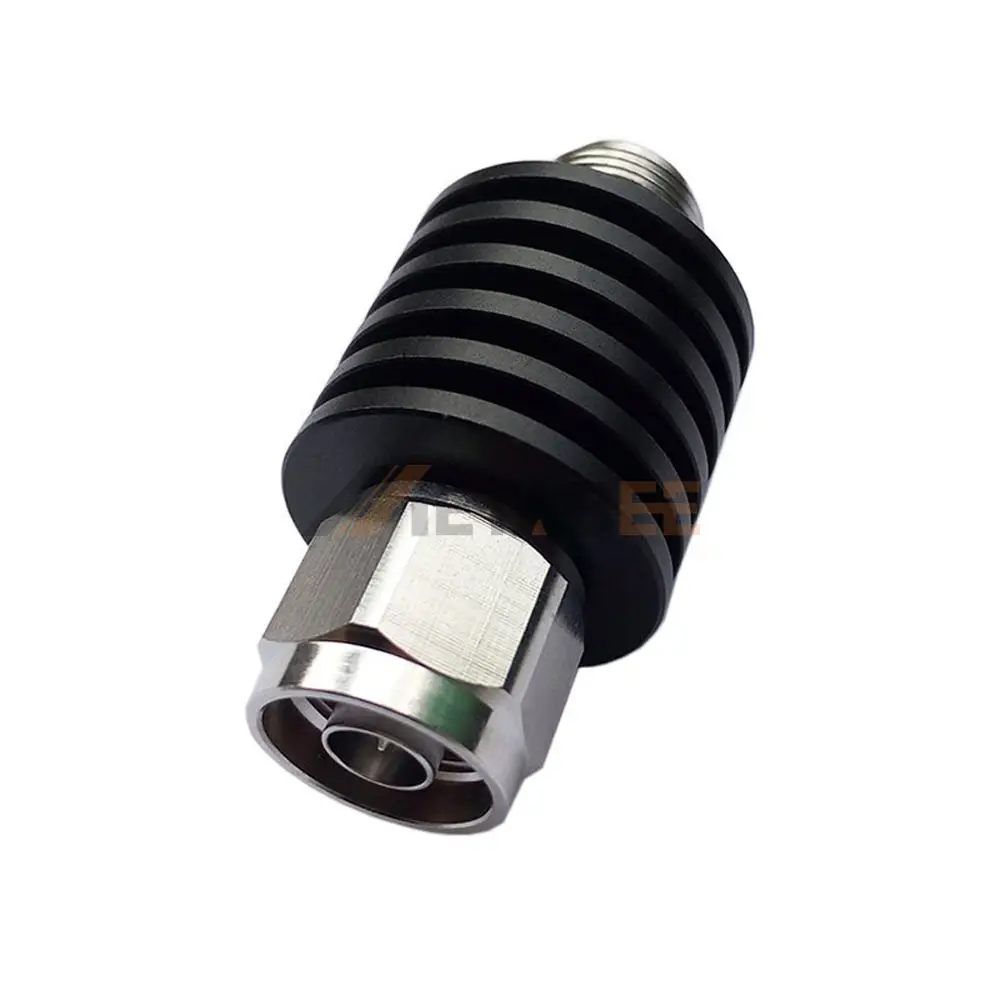

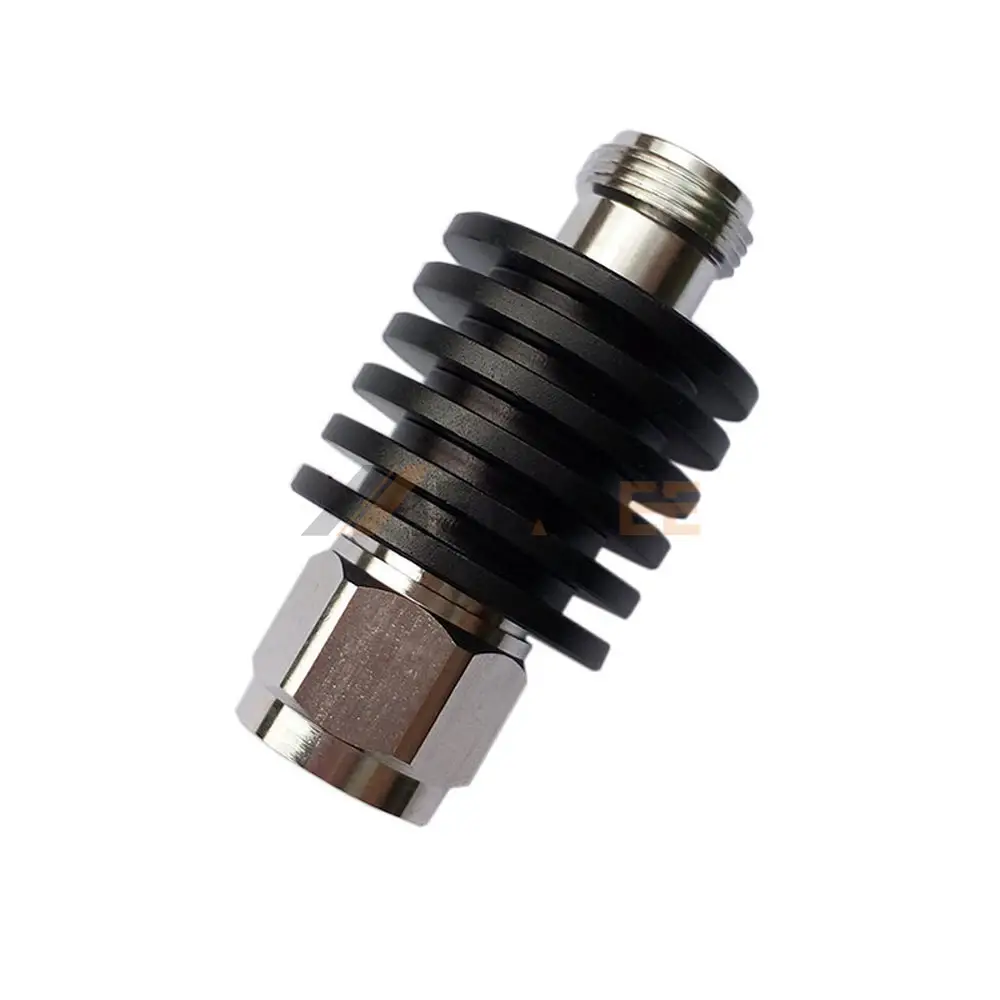

5W N-type Male to N-type Female RF Fixed Attenuator, DC to 4GHz
Introduction
This N-type RF fixed attenuator is engineered for precision signal control in RF and microwave systems operating from DC to 4GHz. Designed as part of the N-type Attenuator series, it features a 50-ohm impedance for optimal signal integrity and compatibility with standard RF systems.
Constructed with stainless steel N-type male and female connectors, the attenuator ensures long-term durability and corrosion resistance. With a VSWR of 1.20:1, it delivers stable performance with minimal signal reflection. Rated for 5W power handling, it’s ideal for testing, lab, and system integration applications.
The attenuator is IP20-rated for basic protection and operates reliably in extreme environments with a temperature range of -55°C to +125°C, making it suitable for both indoor and controlled outdoor installations.
Key Features:
- Frequency range: DC to 4GHz.
- Power handling: 5 Watts.
- Impedance: 50 Ohms.
- Low VSWR: 1.20:1.
- Connectors: N-type male to N-type female (Stainless Steel).
- Protection class: IP20.
- Wide operating temperature: -55°C to +125°C.
Main Specifications:
| Part No.: | 5W-N-JK-4G | |
| Product Series: | N-type Attenuators | |
| Brand: | Metabee | |
| Connector 1: | N-type Connector | |
| Connector 1 – Gender: | Male | |
| Connector 1 – Body Material: | Stainless Steel | |
| Connector 1 – Body Plating: | Not Applicable | |
| Connector 2: | N-type Connector | |
| Connector 2 – Gender: | Female | |
| Connector 2 – Body Material: | Stainless Steel | |
| Connector 2 – Body Plating: | Not Applicable | |
| Power Maximum: | 5W | |
| Attenuation: | 1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB, 40DB | |
| Impedance: | 50 Ohm | |
| VSWR: | ≤1.20:1 | |
| Frequency(Max): | 4 GHz | |
| Operating Temperature: | -55°C to +125°C | |
| IP Rating: | IP20 | |
| Other Feature: | None |
Applications of this 5W N-type Male to N-type Female RF Fixed Attenuator:
- Protecting Sensitive Equipment;
- Video Systems;
- RF Communication;
- Laboratory Setups;
- Preventing Amplifier Saturation;
- Audio Applications
