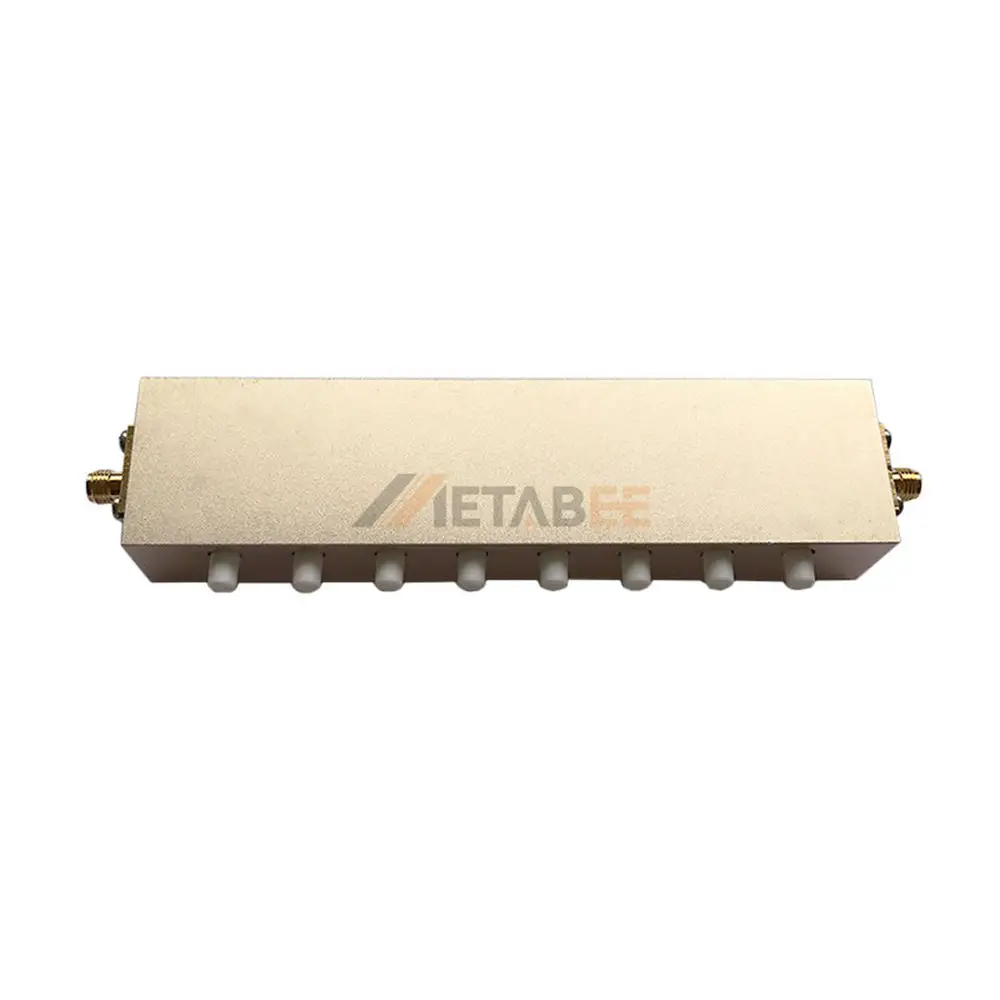

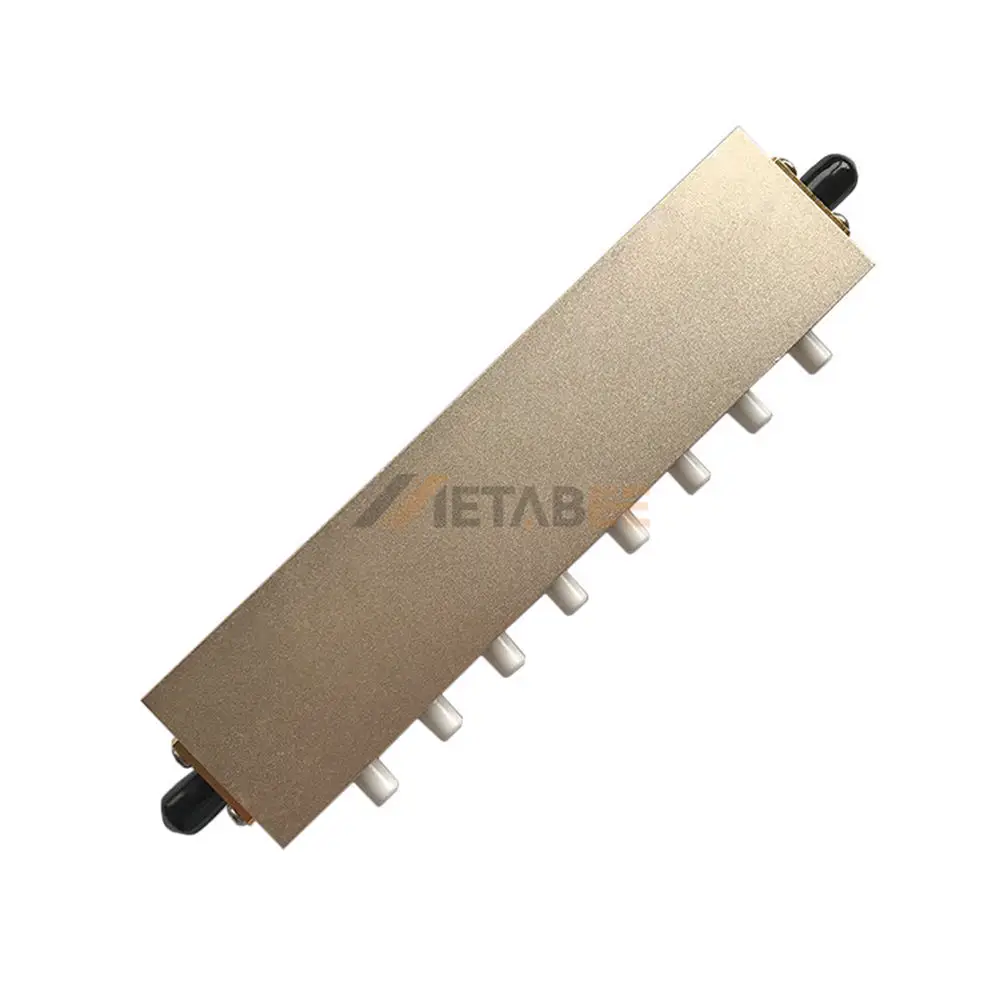

5W SMA Female to Female Variable RF Attenuator, 1-90DB, DC to 3GHz

Metabee Antenna Certificate
Get Quotation Chat Online

5W SMA Female to Female Variable RF Attenuator, 1-90DB, DC to 3GHz

Introduction

This high-performance 5W SMA variable RF attenuator offers precise signal attenuation across a broad frequency range, making it an essential tool for various RF applications. Designed for reliability and durability, this attenuator provides an adjustable attenuation range of 1 to 90 dB from DC to 3 GHz. Its robust construction, featuring SMA female connectors with stainless steel housing, ensures excellent performance and longevity in demanding environments. With a low VSWR of 1.20:1 and a 50 Ohm impedance, it guarantees minimal signal reflection and optimal power transfer.

Ideal for test and measurement setups, telecommunications, and general RF laboratory use, this variable attenuator allows for fine-tuning of signal levels. Its IP20 ingress protection and wide operating temperature range of -55°C to 125°C make it suitable for a variety of challenging conditions. Whether you need to reduce signal strength for receiver protection, adjust power levels for optimal system performance, or simulate signal loss, this SMA variable attenuator delivers consistent and accurate results.

Key Features:

  • Adjustable Attenuation: 1-90 dB
  • Frequency Range: DC to 3 GHz
  • Power Handling: 5 Watts
  • Impedance: 50 Ohms
  • Connector Type: SMA Female to SMA Female
  • Low VSWR: 1.20:1
  • Durable Construction: Stainless Steel Housing.

Main Specifications:

Part No.: 5W-SMA-KK-3G-1/90DB
Product Series: RF Variable  Attenuators
Brand: Metabee
Connector 1: SMA Connector
Connector 1 – Gender: Female
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Not Applicable
Connector 2: SMA Connector
Connector 2 – Gender: Female
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Plating: Not Applicable
Power Maximum: 5W
Attenuation:  1-90DB
Impedance: 50 Ohm
VSWR: ≤1.20:1
Frequency(Max): 3 GHz
Operating Temperature: -55°C to +125°C
IP Rating: IP20
Other Feature: None


Applications of this 5W SMA Female to Female Variable RF Attenuator:

  • Test & Measurement;
  • Telecommunications;
  • Satellite Systems;
  • Broadcast Equipment;
  • Military & Aerospace;
  • Medical Devices;
  • Wireless Networks;
  • RF Amplifiers;
  • Signal Generators.

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!

RF Attenuators
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF attenuators.
Product No.

5W-SMA-KK-3G-1/90DB

Product Series

RF Variable Attenuators

Product Name

5W SMA Female to Female Variable RF Attenuator, 1-90DB, DC to 3GHz

Brand

Metabee

Connector 1

SMA Connector

Connector 1 - Gender

Female

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Not Applicable

Connector 2

SMA Connector

Connector 2 - Gender

Female

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Not Applicable

Max Power

5W

Attenuation

1-90DB

Impendence

50 Ohm

Frequency(Max)

0-3 GHz

VSWR

≤ 1.20:1

IP Rating

IP20

Operating Temperature

-55ºC to +125 ºC

Other Features

None
