Introduction:
Accommodating thicker conductors is simple with this 23 AWG RJ45 plug designed for professional networking. This component supports Cat6 performance standards to ensure stable gigabit Ethernet transmission across high-bandwidth systems. Its internal channels are specifically widened to fit 21-23AWG round stranded cables without compromising signal quality. Because the housing consists of clear polycarbonate, installers can verify pin alignment easily during the assembly process. This unshielded 8p8c modular design provides a lightweight solution for demanding indoor UTP environments. Technical teams choose this plug for its durable construction and reliable electrical bond with heavy-gauge copper wires.
Key Features
- Cat6 Gigabit Performance: Supports high-speed data transmission for Ethernet networks.
- Heavy Gauge Compatibility: Designed specifically for thick 21-23AWG copper wires.
- Round Stranded Support: Ensures secure termination for cylindrical cable profiles.
- Unshielded UTP Design: Offers a lightweight housing for standard indoor installations.
- Clear Polycarbonate Shell: Facilitates easy visual verification of internal wire alignment.
Main Specifications:
General Information:
| Product No.: | MTPR-88-X-C6-LB | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat6 | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |

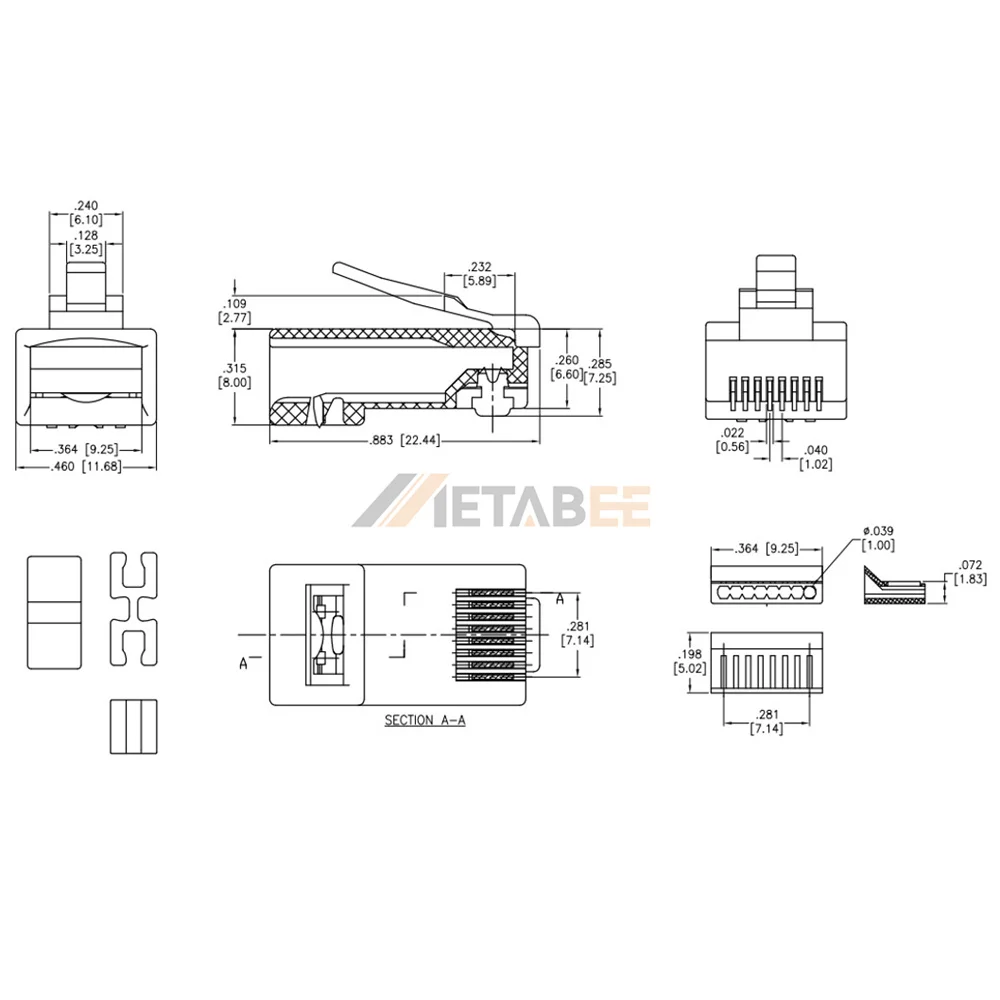

| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150 V/AC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PC | |
| Insulator Color: | Clear | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
