Introduction:
This magnetic pogo pin charging cable is a 1.2-meter FLAT CABLE assembly designed for secure 12V power transmission. It features a STRAIGHT rounded rectangular magnetic head that enables automatic self-alignment for effortless connectivity. The BRASS contacts are finished with 3u” GOLD PLATING over nickel to ensure a maximum contact resistance of 30 mohms. Supporting a 2A maximum current, it provides efficient power delivery over a tested mechanical lifespan of 30,000 CYCLES. This component serves as a reliable charging interface for portable electronics and specialized hardware requiring a stable magnetic link.
Key Features
- Magnetic Connection: Magnetic head enables automatic self-aligning power links.
- Efficient Power: Supports 2A max current for 12V DC power.
- Flat Cable: Flexible 1200mm flat cable prevents tangling in tight spaces.
- Durable Plating: 3u” Gold finish prevents brass contact oxidation.
- Long Durability: Tested for 30,000 cycles ensuring long mechanical life.
Main Specifications:
General Information:

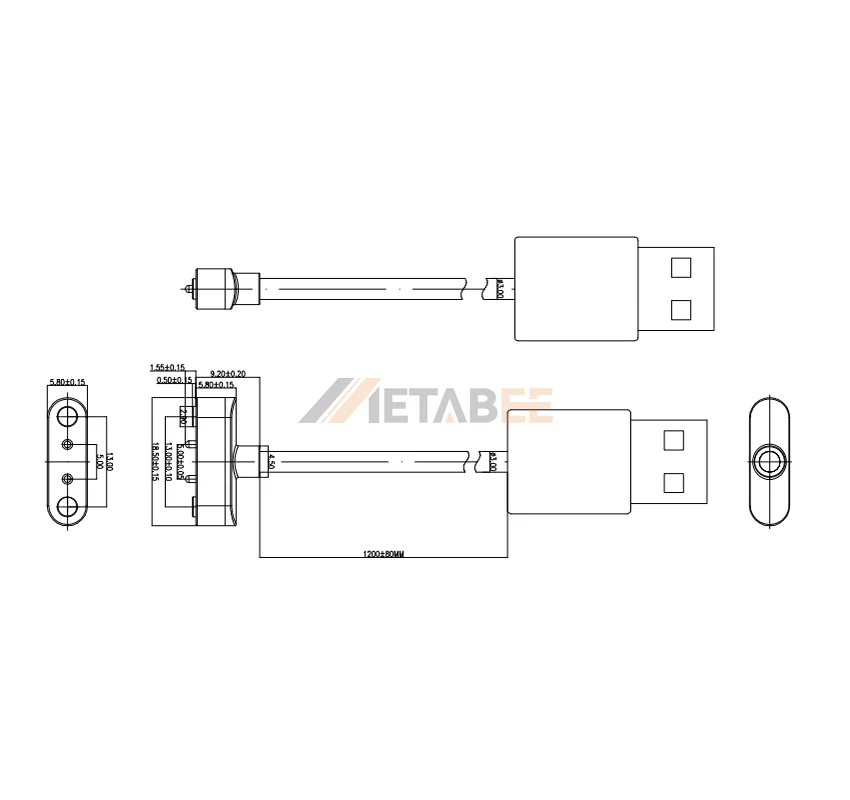

| Product No.: | CA-ST2-PH1-558-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 2 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Straight | |
| Contact Material: | Brass | |
| Contact Plating: | 3u” Gold plated over Nickel | |
| Cable Type: | Flat Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1200±80 mm | |
| Jacket Material & Color: | N/A |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric Withstanding Voltage: | 100 VRMS |
Mechanical:
| Contact Force: | 50gf±30g | |
| Working Stroke: | 1mm | |
| Full Stroke: | N/A | |
| Durability: | 30,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +80°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
