Introduction:
This pogo pin round pin usb cable is a 4-pin magnetic power assembly designed with a 2.2mm pitch for precise electronic docking. It features a straight, rounded rectangular magnetic head that enables automatic self-alignment, ensuring secure and effortless connectivity for the user. The 1000mm TPE cable utilizes 22AWG and 28AWG internal wiring to support a 3A current rating and 12V DC power delivery. Gold-plated contacts ensure low resistance and stable electrical transmission over 10,000 compression cycles. This component serves as a robust charging or data interface for smart wearables and modular handheld devices requiring a quick-release magnetic port.
Key Features
- 4-Pin Interface: 2.2mm pitch layout ensures precise matching with device contacts.
- Magnetic Alignment: Rounded rectangular magnetic head provides automatic self-centering connection.
- High Power: Supports 3A current and 12V DC for efficient power delivery.
- Premium Plating: 3u” Gold plating prevents oxidation over 10,000 mechanical cycles.
- Durable TPE: Flexible 1-meter black TPE jacket offers superior cable longevity.
Main Specifications:

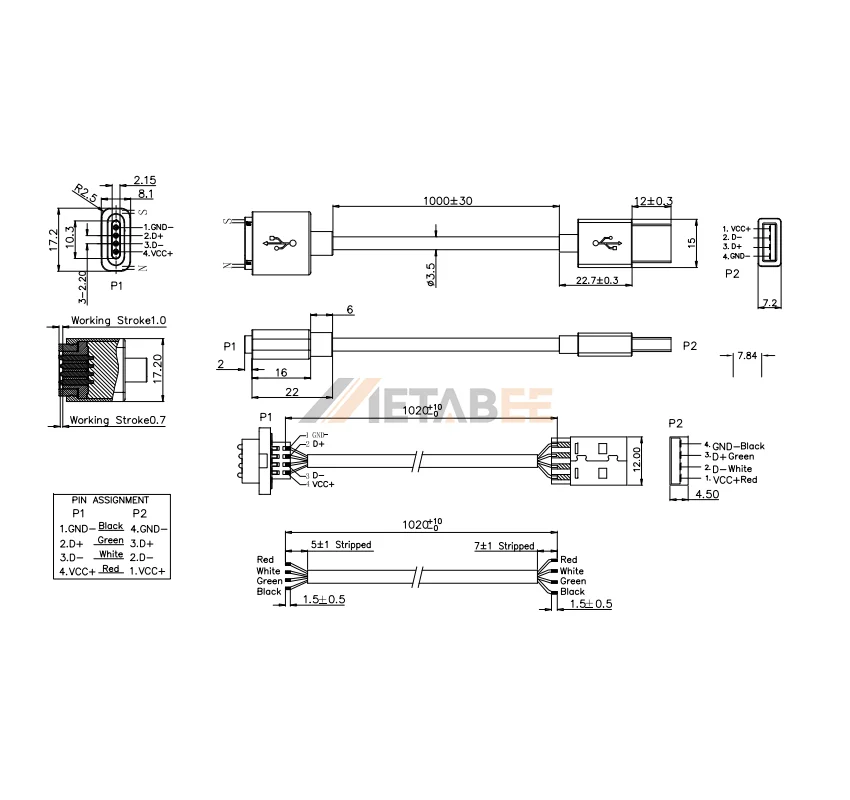

General Information:
| Product No.: | CA-ST4-PH1-22160-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 4 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Straight | |
| Contact Material: | N/A | |
| Contact Plating: | 3u” Gold plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 22AWG+28AWG | |
| Cable Length: | 1020±30 mm | |
| Jacket Material & Color: | TPE, Black |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 80gf max | |
| Working Stroke: | 0.8mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 Cycles |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
